Запчасти Case IH 570 (B-21) - APRON CHAIN, HEAVY DUTY LOCK TYPE, 570 AND 580 MODELS (00) - COMPLETE MACHINE

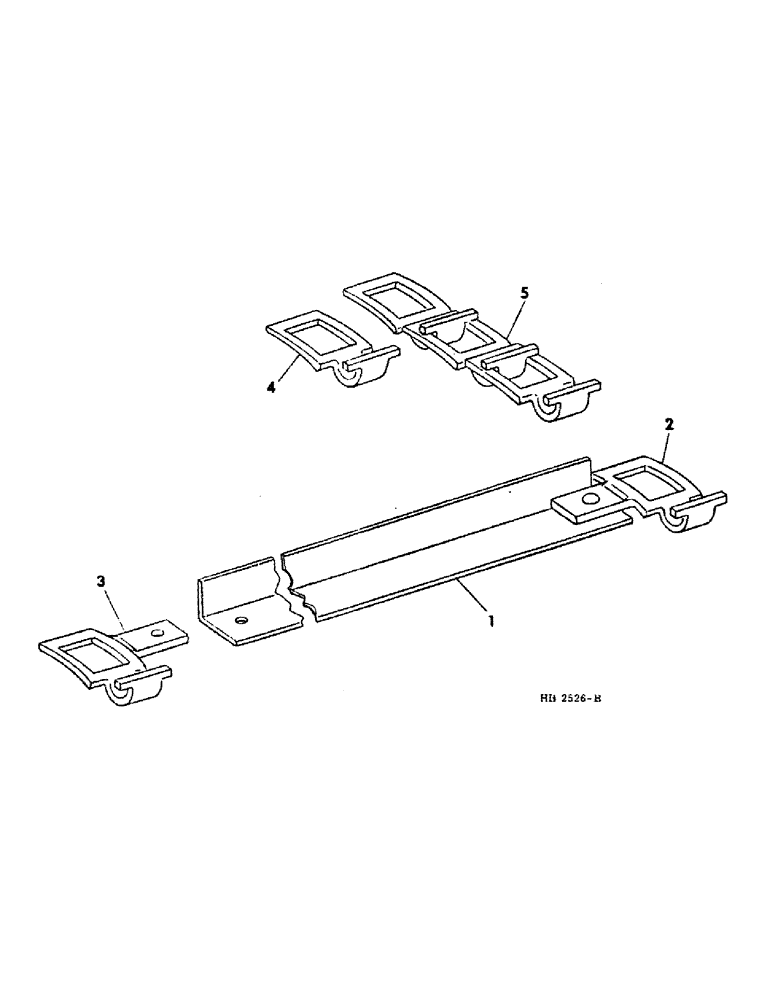

Схема запчастей Case IH 570 - (B-21) - APRON CHAIN, HEAVY DUTY LOCK TYPE, 570 AND 580 MODELS (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

821397C91

ANGLE

ASSY, apron, 32, 570 model, includes 1-821941C1 link, 1-821942C1 link and 2-106916 rivets

1шт.

1

821397C91

ANGLE

ASSY, apron, 38, 580 model, includes 1-821941C1 link, 1-821942C1 link and 2-106916 rivets

1шт.

2

821941C1

LINK

attaching LH, (32), 570 model

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss-hd, (32)

1шт.

2

821941C1

LINK

attaching LH, (38), 580 model

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss-hd, (38)

1шт.

3

821942C1

LINK

attaching RH, (32), 570 model

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss-hd, (32)

1шт.

3

821942C1

LINK

attaching RH, (38), 580 model

1шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss-hd, (38)

1шт.

4

821940C1

LINK

apron plain, (416), 570 model

1шт.

4

821940C1

LINK

apron plain, (480), 580 model

1шт.

5

CHAIN ASSY, apron w/angles, 570 model, for each chain assy use 208 plain link 821940C1 and 16 angle assy 821397C91 and assemble in sequence of 8 spaces of 7 plain link and one angle assy, then 8 spaces of 6 plain link and one angle assy

1шт.

5

CHAIN ASSY, apron w/angles, 580 model, for each chain assy use 240 plain link 821940C1 and 21 angle assy 821397C91 and assemble in sequence of 13 spaces of 6 plain link and one angle assy, then 6 spaces of 7 plain link and one angle assy

1шт.

821385C91

PACKAGE

apron chain, 570 model, consists of (32) angle assy 821397C91, (416) link 821940C1

1шт.

821386C91

PACKAGE

apron chain, 580 model, consists of (38) angle assy 827397C91, (480) link 821940C1

1шт.

Выбрано товаров: 16
