Запчасти Case IH 570 (B-18) - REAR APRON SHAFT (00) - COMPLETE MACHINE

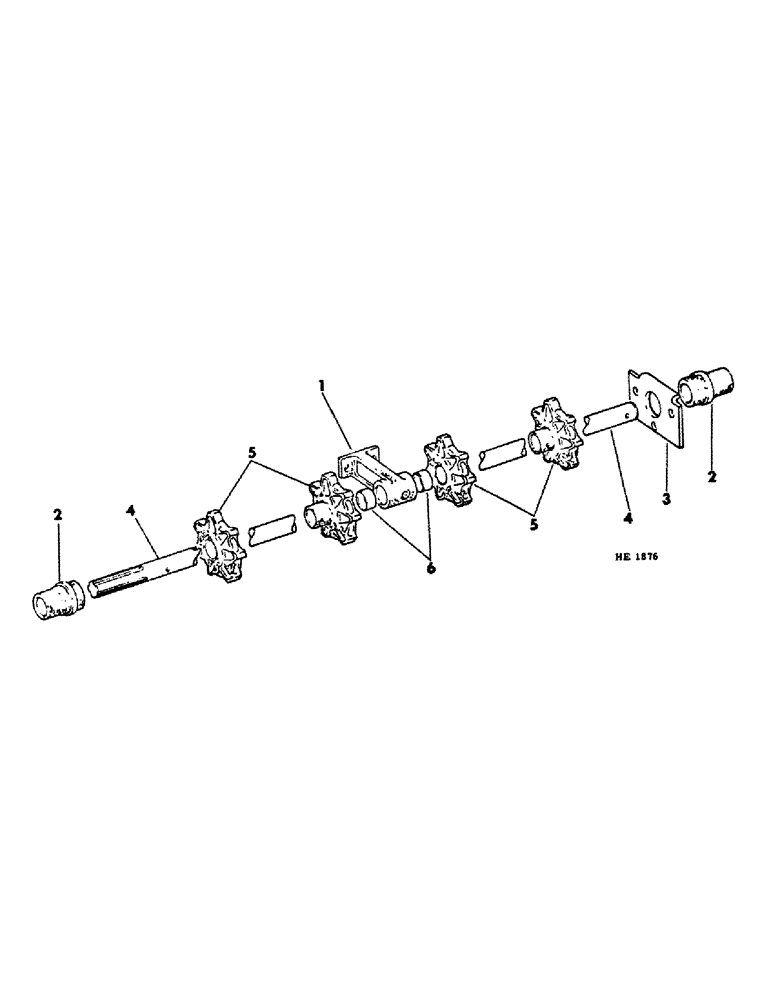

Схема запчастей Case IH 570 - (B-18) - REAR APRON SHAFT (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

1

592986R1

SUPPORT

apron shaft centre

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex-hd

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20601R1

WASHER

.531 x 1.250 x .090

2шт.

2

592987R1

BEARING ASSY,1.381" ID x 2.13" OD x 3"

rear apron shaft outer

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , LH 1/8"-27 x .66 lg

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING, 1/8-27 65 deg lub

1шт.

3

592988R1

SUPPORT

outer RH bearing

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

4

592989R2

SHAFT

rear apron

1шт.

657206R1

KEY,3/8" Sq x 2 3/8", Par

3/8 x 2-3/8 straight

2шт.

19479R1

PIN,1/4" x 2", Coiled

(LH) 1/4" x 2", Coiled

1шт.

108657

COTTER PIN,5/16" x 2 1/4"

Pin, Split (Cotter), 5/16" x 2 1/4"

2шт.

432-1240

COTTER PIN,3/16" x 2 1/2"

Pin, Split (Cotter), , RH 3/16" x 2 1/2"

1шт.

22481R1

WASHER

1.406 x 2.250 x .054

1шт.

5

592990R1

SPROCKET ASSY.

SPROCKET, 6T apron shaft

4шт.

586879R1

KEY

5/16 x 2 straight square

4шт.

617942R1

PIN,7.92mm OD x 57.15mm L, Coiled

4шт.

6

592991R1

SPACER

inner sprocket

2шт.

Выбрано товаров: 23
