Запчасти Case IH 570 (B-17) - APRON DRIVE WORM GEAR CASE (00) - COMPLETE MACHINE

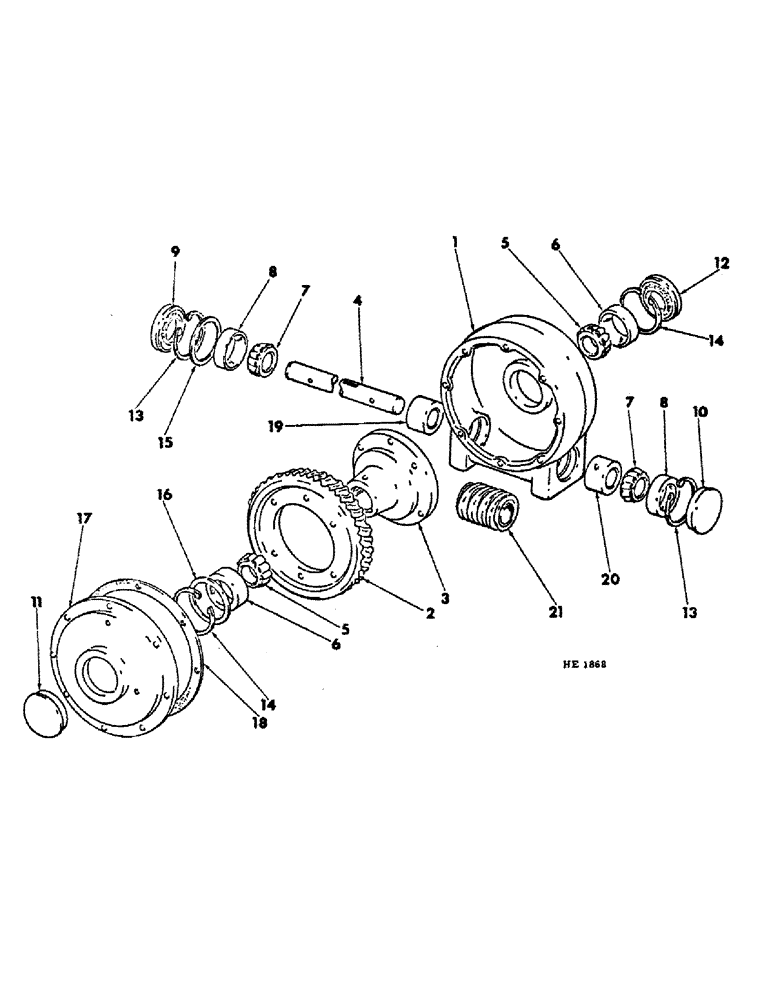

Схема запчастей Case IH 570 - (B-17) - APRON DRIVE WORM GEAR CASE (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

820947C91

CASE

ASSY, worm gear, includes parts listed below

1шт.

1

594442R1

HOUSING

gear case

1шт.

18437R91

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

PLUG, oil vent

1шт.

445686

PLUG

3/8 sq hd pipe

1шт.

2

820128C1

GEAR

worm

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

3

820129C1

HUB

worm gear

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8-16 x 3/8 hex soc cup point set

2шт.

4

820861C1

SHAFT

input

1шт.

5

20879D

ROLLER BEARING,1.375" ID x 2.77" OD x 0.7813"

CONE, worm gear bearing

2шт.

6

ST991

BEARING CUP

CUP, worm gear bearing

2шт.

7

594446R91

ROLLER BEARING

CONE, input shaft bearing

2шт.

8

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, input shaft bearing

2шт.

9

594447R91

SEAL

input shaft oil

1шт.

10

594434R1

CAP

gear case lower

1шт.

REF#10, If looking for a square head end cap use part# A192-1. jfn 5/21/98

1шт.

11

594448R1

CAP

gear case upper

1шт.

12

594449R91

OIL SEAL

worm gear oil

1шт.

13

594433R1

RING

input shaft brg retaining

2шт.

14

594450R1

RING

worm gear brg retaining

2шт.

15

596598R1

SHIM

.020 input shaft brg

1шт.

15

594451R1

SHIM

.010 input shaft brg

1шт.

16

596599R1

SHIM

.020 worm gear brg

1шт.

16

594441R1

SHIM

.010 worm gear brg

1шт.

17

594452R1

COVER, gear housing

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

8шт.

18

594453R1

GASKET

cover

1шт.

19

820006C1

SPACER

worm front

1шт.

20

820198C1

SPACER, worm rear

1шт.

617941R1

PIN,5/16" x 2", Coiled

1шт.

21

820005C1

GEAR

WORM, gear

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

Выбрано товаров: 33
