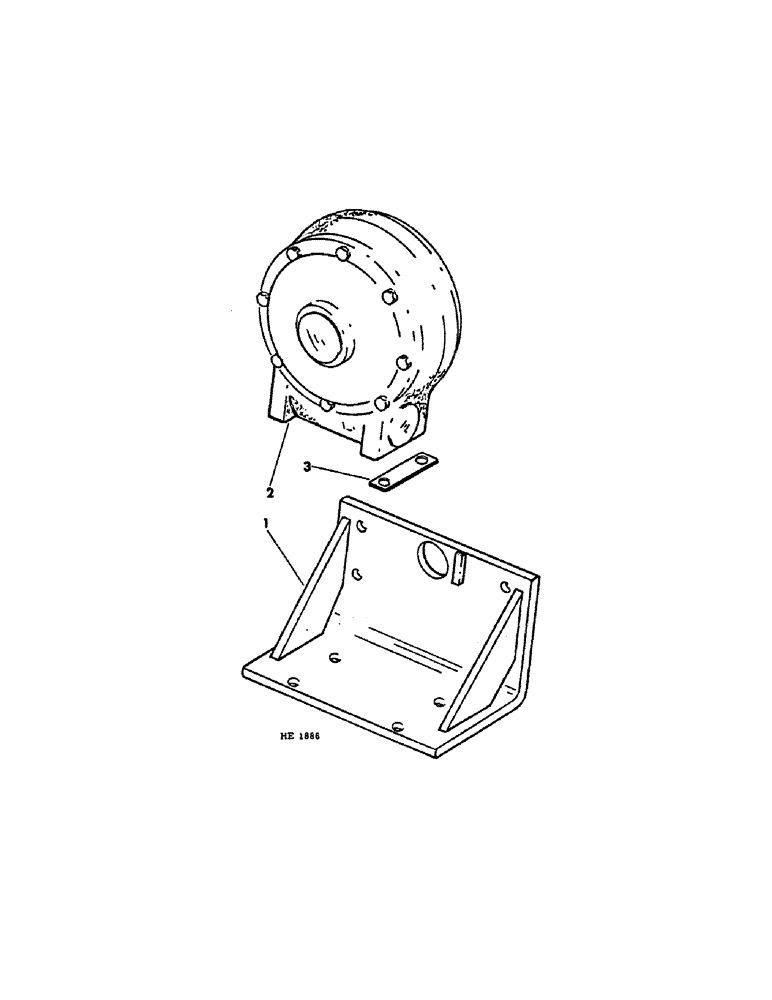

Запчасти Case IH 570 (B-16) - APRON DRIVE GEAR CASE SUPPORT (00) - COMPLETE MACHINE

1

592981R11

SUPPORT

ASSY, apron shaft gear case

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

5шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

5шт.

120384

WASHER,1/2"

LOCK, 1/2"

5шт.

2

820947C91

CASE

ASSY, worm gear, for component parts of this assy refer to apron drive gear case in this section of the parts catalog

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 x 1-1/4 hex-hd

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

592985R1

SHIM

gear case

1шт.
