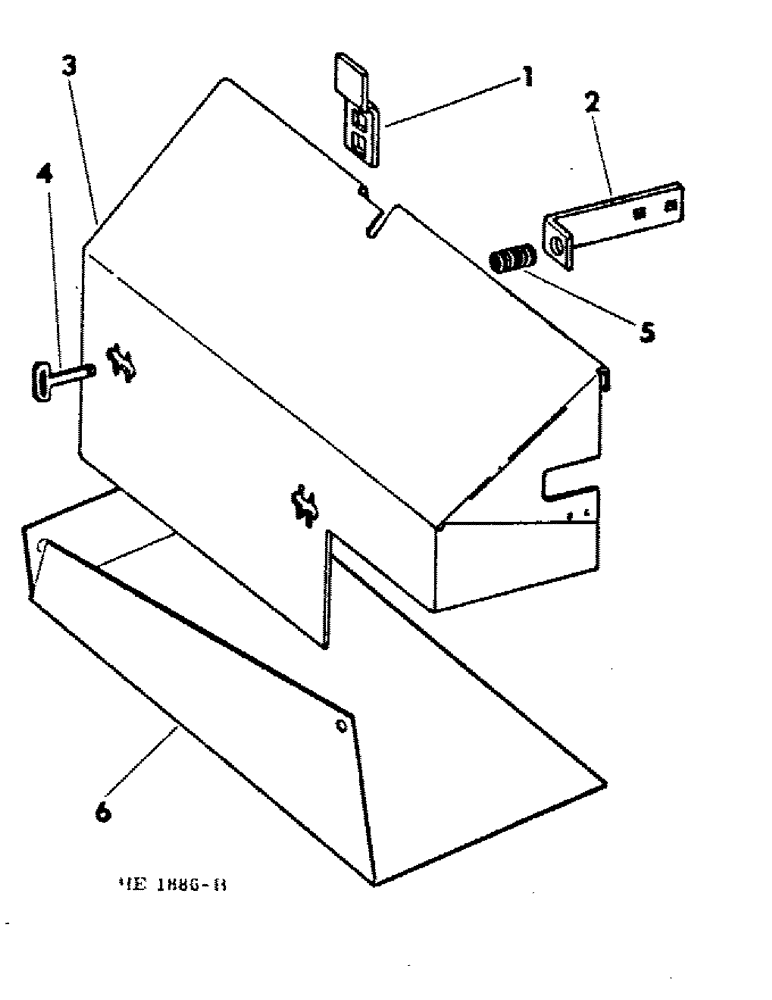

Запчасти Case IH 570 (B-13) - APRON DRIVE SHIELD (00) - COMPLETE MACHINE

1

820804C2

SUPPORT

apron drive shield upper

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

2шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

820805C1

SUPPORT

apron drive shield lower

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

820806C2

SHIELD

apron drive

1шт.

4

593377R1

LATCH

shield

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

619856R1

WASHER

.406 x 1.000 x .056

4шт.

5

M296

SPRING

latch

2шт.

6

821180C1

SHIELD

apron drive bottom, 570 model serial no. 1105 & since, 580 model serial no. 766 & since

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
