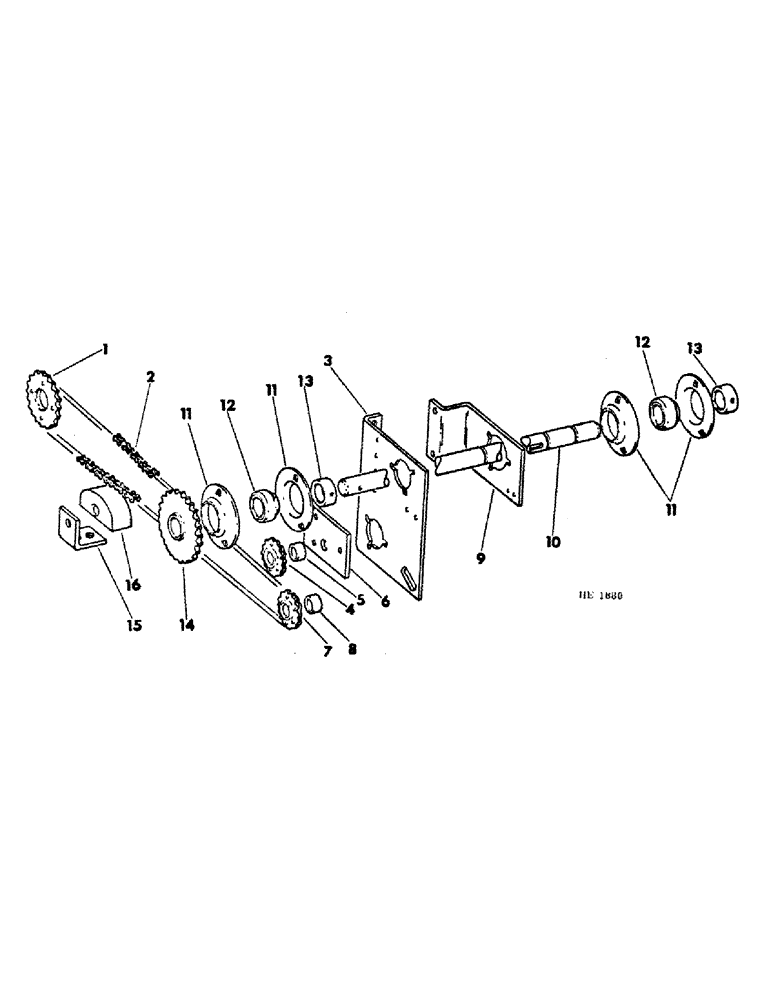

Запчасти Case IH 570 (B-11) - APRON JACK SHAFT DRIVE (00) - COMPLETE MACHINE

1

820928C1

SPROCKET ASSY.

SPROCKET, 26T apron jack shaft drive

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 hex-hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

CHAIN ASSY, jack shaft drive, use 237 links of 1/2 inch pitch roller chain from A 10 foot roll 1790D and add 1-1301D, connecting link

1шт.

3

820817C1

SUPPORT

jack shaft front

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 crg

2шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

4

820962C91

SPROCKET ASSY.

SPROCKET, 17T drive chain idler, opt to use 1-820963C91, sprocket

1шт.

4

820963C91

SPROCKET

18T drive chain idler, opt to use 1-820962C91, sprocket

1шт.

271724

PIN,Hex, 5/8" - 11 x 2 1/4", Gr 5

5/8-11 x 2-1/4 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

5

607346R1

SPACER, idler sprocket

1шт.

6

820886C1

BAR, front support filler

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

3шт.

9413952

LOCK NUT,5/16"-18, GB

NUT, 3/16-18 hex lock

3шт.

7

820962C91

SPROCKET ASSY.

SPROCKET, 17T drive chain tightener, opt w/820963C91, sprocket

1шт.

7

820963C91

SPROCKET

18T drive chain tightener, opt w/820962C91, sprocket

1шт.

271725

SNAP RING,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8-11 x 2-1/2 hex-hd

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

464623R1

WASHER

.656 x 1.500 x .105

3шт.

8

607346R1

SPACER, tightener sprocket

1шт.

9

820858C1

SUPPORT, jack shaft rear

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

820818C1

SHAFT

rear apron shaft jack

1шт.

11

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, jack shaft bearing

4шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

12

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

jack shaft

2шт.

13

557115R11

COLLAR

COLLAR ASSY, bearing locking, includes 1-115321, screw

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 cup-pt set

1шт.

14

820891C1

SPROCKET ASSY.

SPROCKET ASSY, 33T jack shaft driven

1шт.

616387R1

PIN,3/8" x 2", Coiled

1шт.

15

820946C2

ANGLE, chain block support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd, Trail behind models

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

16

585270R1

BLOCK

chain guide

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

20601R1

WASHER

.531 x 1.250 x .090

1шт.
