Запчасти Case IH 570 (B-10) - MITER GEAR CASE (00) - COMPLETE MACHINE

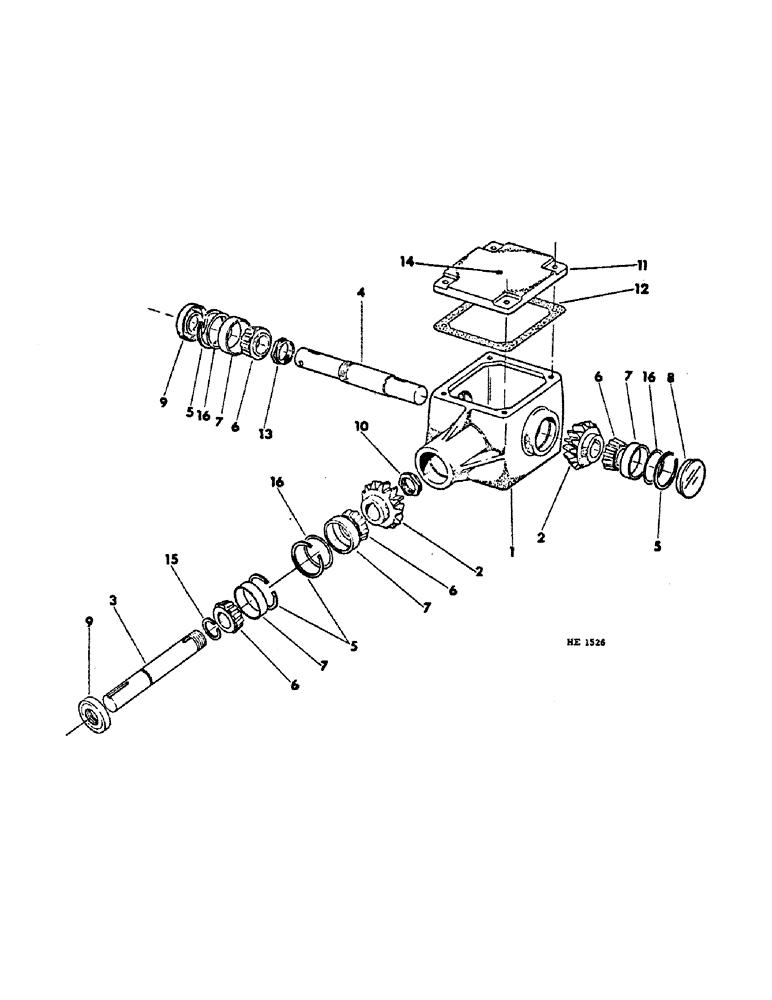

Схема запчастей Case IH 570 - (B-10) - MITER GEAR CASE (00) - COMPLETE MACHINE

Артикул

Название

Примечание

Количество

592961R92

CASE

ASSY, miter gear, includes parts listed below

1шт.

1

594429R2

HOUSING

gear case

1шт.

445686

PLUG

3/8 sq hd pipe

1шт.

2

594430R1

GEAR

miter

2шт.

103909

KEY

1/4 x 1-1/8 Woodruff

2шт.

3

594431R1

SHAFT

input

1шт.

4

594432R1

SHAFT

output

1шт.

5

594433R1

RING

bearing retaining

4шт.

6

459456R91

CONE

bearing

4шт.

7

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, bearing

4шт.

8

594434R1

CAP

gear housing

1шт.

9

594435R1

SEAL, housing oil

2шт.

REF #9--P/N SHOULD BE 594435R91 PER PRINT. JBEDFORD 10/6/97.

1шт.

10

594436R1

NUT

input shaft lock

1шт.

11

594437R1

COVER

gear housing

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16-18 x 3/4 hex hd

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

594438R1

GASKET

housing cover

1шт.

13

594439R1

NUT

output shaft lock

1шт.

14

684184R1

PLUG

gear case vent, replaces 356569R1

1шт.

15

594440R1

RING

input shaft retaining

1шт.

16

594441R1

SHIM

gear housing, use as required

3шт.

Выбрано товаров: 22
