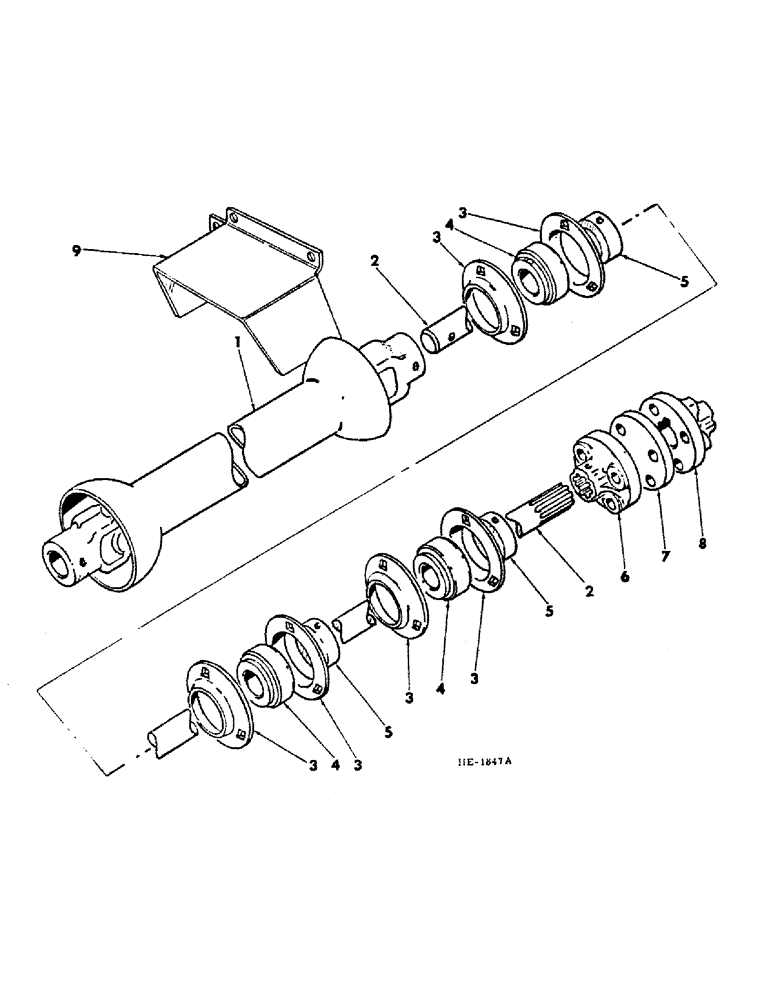

Запчасти Case IH 570 (B-07) - MAIN DRIVE SHAFT (00) - COMPLETE MACHINE

1

JOINT, pto universal, trail model, for component parts refer to pto universal joint

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

617943R1

PIN,5/16" x 2 1/2", Coiled

1шт.

2

820881C1

SHAFT

main drive, 570

1шт.

2

820882C1

SHAFT

main drive, 580

1шт.

3

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, drive shaft brg

6шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 crg

9шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

9шт.

4

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

main drive shaft

3шт.

5

557115R11

COLLAR

COLLAR ASSY, brg locking, includes 1-115321, screw

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 cup-pt set

3шт.

6

592958R1

COUPLING

main drive shaft front

1шт.

21028R1

SCREW, 5/16-18 x 7/8 sq-hd cone-pt set

1шт.

124824

NUT,Hex, 5/16" - 18

5/16-18 hex jam

1шт.

7

608054R1

PAD

coupling disk

1шт.

8

592959R1

COUPLING

main drive shaft rear

1шт.

192

KEY,5/16" Sq x 1 5/8", Par

5/16 x 1-5/8 straight

1шт.

180185

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

1/2-13 x 2-1/2 hex-hd

4шт.

9413967

LOCK NUT,1/2"-13, GB

NUT, 1/2-13 hex lock

4шт.

9

821796C1

SHIELD

universal joint drive, for service on 570 trail behind models built w/serial on. 2022 and since, for service on 580 trail behind models built w/serial no. 1358 and since

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
