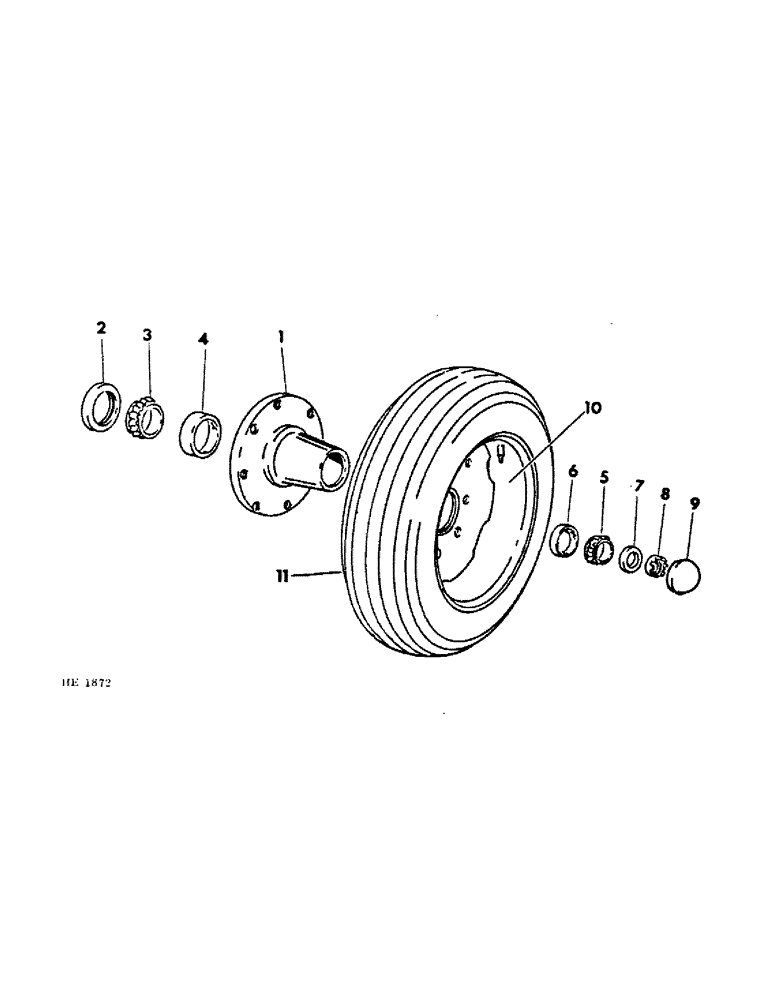

Запчасти Case IH 570 (B-05) - WHEEL, TIRE AND HUB, TRAIL BEHIND MODELS (00) - COMPLETE MACHINE

1

592920R2

HUB

wheel

4шт.

2

821414C1

OIL SEAL

wheel hub oil

4шт.

3

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

CONE, inner bearing

4шт.

4

ST987

BEARING CUP

CUP, inner bearing

4шт.

5

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, outer bearing

4шт.

6

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, outer bearing

4шт.

7

619373R1

WASHER

.906 x 2.000 x .164

4шт.

8

612634R1

NUT

7/8-14 hex sltd

4шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

4шт.

9

612884R1

HUB CAP

CAP, wheel hub

4шт.

10

592922R91

RIM

WHEEL, WH 10 L-16 CV

4шт.

10

820936C1

WHEEL

W8B, 20

4шт.

10

820545C1

WHEEL

20 x 7.5 w/side ring

4шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

32шт.

11

TIRE AND TUBE, 12.5 L, 16 8 ply I, 1 rib implement

1шт.

11

TIRE AND TUBE, 10.00 x 20 12 ply truck

1шт.

11

TIRE AND TUBE, 10.00 x 20 10 ply truck

1шт.
