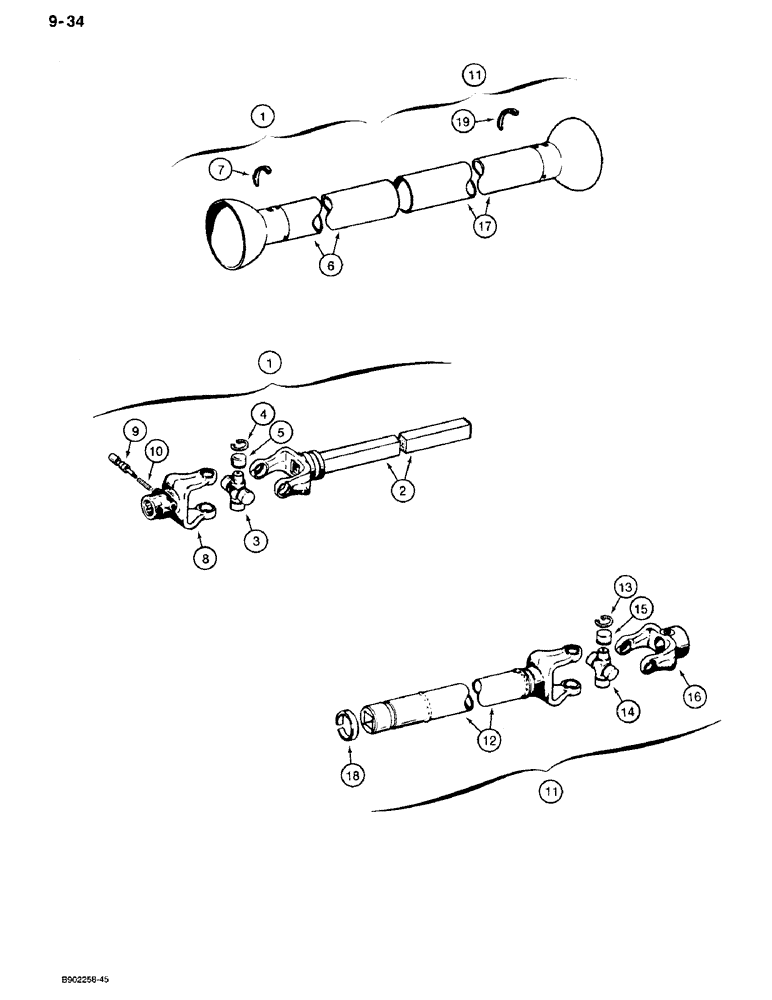

Запчасти Case IH 560 (9-034) - DRIVE SHAFT, HAYES, 1000 RPM, MODEL 560 ONLY (06) - POWER TRAIN

1

822157C93

JOINT

SHAFT ASSEMBLY - drive, front half

1шт.

2

820217C1

YOKE

SHAFT - with yoke

1шт.

753772

KIT

JOINT ASSEMBLY - universal, replaces 667558R91 universal joint assembly

1шт.

3

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

667561R1

RING

- retaining, universal joint assembly

4шт.

5

NSS

NOT SOLD SEPARAT

BEARING - cross

4шт.

6

1969202C1

SHIELD

- outer, replaces 821597C1 shield

1шт.

1253795C1

DECAL

- adjust tractor drawbar to align hitch

1шт.

7

1326581C1

COLLAR

KIT - bearing, shield, nylon, consists of 6 bearings

1шт.

8

568100R93

FORK

YOKE ASSEMBLY - quick detachable

1шт.

Should use P/N 1969067C1.

1шт.

9

1960424C1

PIN

- release

1шт.

10

1960425C1

SPRING

- pin

1шт.

11

820197C92

JOINT

SHAFT ASSEMBLY - drive, rear half, replaces 820197C91 universal joint assembly

1шт.

12

820396C1

YOKE

- with tube

1шт.

1326528C1

DECAL

- danger, shield missing, do not operate

1шт.

753772

KIT

JOINT ASSEMBLY - universal, replaces 667558R91 universal joint assembly

1шт.

13

667561R1

RING

- retaining, universal joint assembly

4шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

14

NSS

NOT SOLD SEPARAT

CROSS - center

1шт.

15

NSS

NOT SOLD SEPARAT

BEARING - cross

4шт.

16

820582C1

YOKE

- with keyway

1шт.

17

1969061C1

SHIELD

- inner, Replaces: P/N 820591C1

1шт.

18

822484C1

COLLAR

- shield support

1шт.

19

1326581C1

COLLAR

SHIELD - bearing half

2шт.
