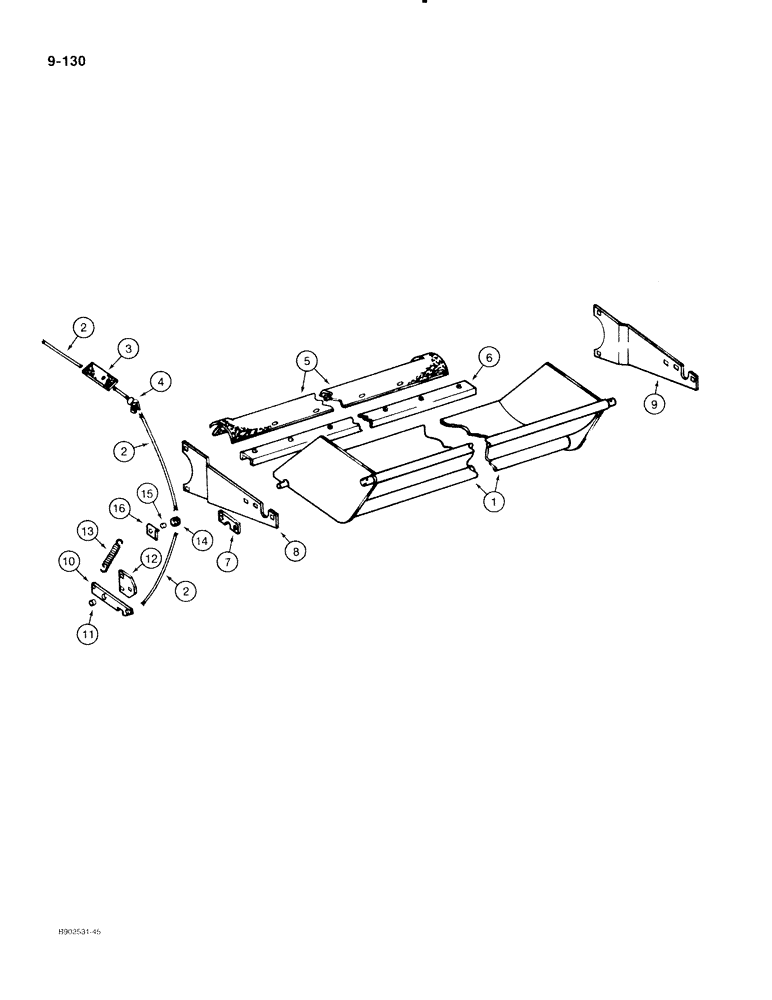

Запчасти Case IH 560 (9-130) - SLURRY PAN AND CONTROL (09) - CHASSIS/ATTACHMENTS

1

820565C2

PAN

- slurry, used on Model 530 only

1шт.

1

820566C2

PAN

- slurry, used on Models 540, 550 and 560

1шт.

2

NSS

NOT SOLD SEPARAT

ROPE - slurry pan control, 1/4 inch x 30 foot, nylon braided, buy locally

1шт.

3

820586C1

STRIP

- rope, front guide

1шт.

4

820597C2

GUIDE

- rope, center and rear

2шт.

5

820589C1

SHEET

- pan seal, used on Model 530 only

1шт.

5

820590C1

SHEET

- pan seal, used on Models 540, 550 and 560

1шт.

6

820587C1

CHANNEL

- seal retaining, used on Model 530 only

1шт.

6

820588C1

CHANNEL

- seal retaining, used on Models 540, 550 and 560

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , Retaining channel and seal sheet to slurry pan Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

7шт.

425-106

NUT,3/8"-16, Cl 5

7шт.

492-11038

LOCK WASHER,3/8"

7шт.

7

820577C1

BAR

CLAMP - pan hinge pin

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, clamp to hinge support

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 3/64 inch, on hinge pin

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2", In hinge pin

2шт.

8

820573C1

SUPPORT

- pan hinge, left-hand

1шт.

9

820574C1

SUPPORT

- pan hinge, right-hand

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, support to box rear sides

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

10

820580C1

LATCH

- slurry pan

1шт.

11

612232R1

SPACER

- latch pivot

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, , Latch pivot spacer and support bar to box LH rear side Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

1шт.

12

820578C1

BAR

- latch support

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, support bar to box rear, left-hand side

2шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

13

4A

SPRING

- latch return

1шт.

432-1216

COTTER PIN,3/16" x 1"

Spring anchor in box rear, Left-hand side 3/16" x 1"

1шт.

14

820652C1

PULLEY

- control rope guide

1шт.

15

561277R1

SPACER,5/8" Tube x 1/2"

BUSHING - pulley

1шт.

16

820651C1

ANGLE

- rope guide

1шт.

434-624

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

BOLT - carriage, 3/8 NC x 1-1/2 inch, guide angle and pulley bushing to pan hinge support, left-hand side

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.
