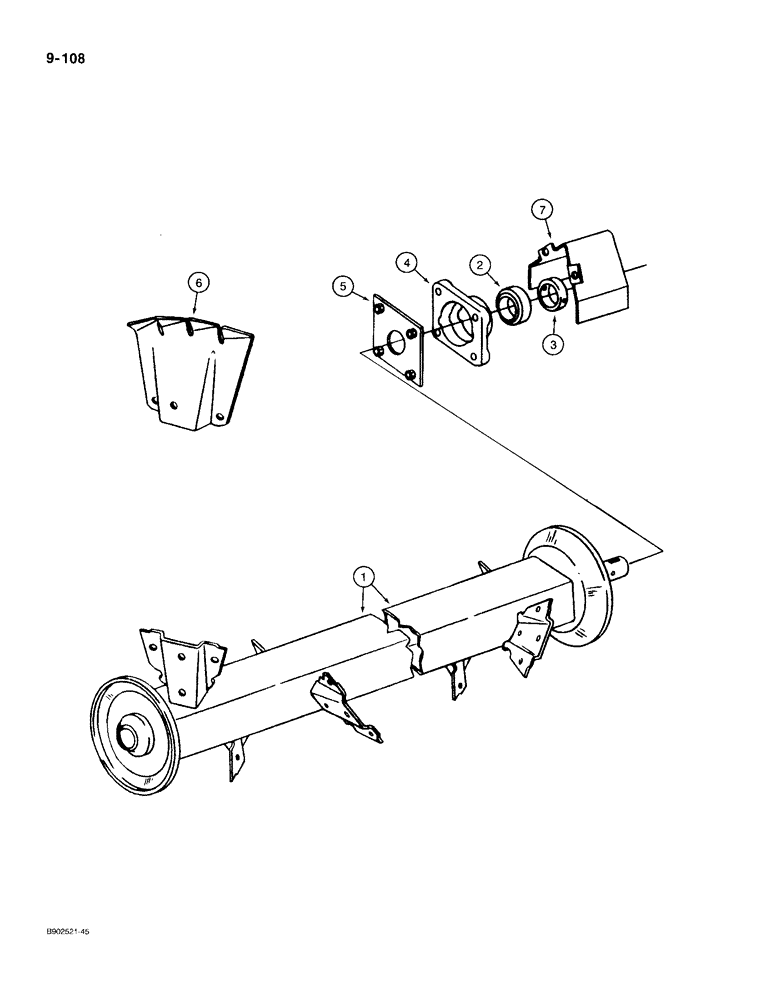

Запчасти Case IH 560 (9-108) - WIDESPREAD (09) - CHASSIS/ATTACHMENTS

1

820475C1

ROTATOR

WIDESPREAD - spreader, used on Model 530 only

1шт.

1

820476C1

ROTATOR

WIDESPREAD - spreader, used on Models 540, 550, and 560

1шт.

2

1414239R91

BALL BEARING

- widespread shaft

1шт.

3

517645R11

COLLAR

ASSEMBLY - bearing locking

1шт.

83-1386

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SCREW - set, hex socket headless, 3/8 NC x 3/8 inch, cup pt

1шт.

4

820356C1

HOUSING

- bearing

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 x 1/2 inch

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, bearing housing to right-hand rear side and support bar

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

5

820363C1

BAR

PLATE - bearing housing support

1шт.

495-81215

WASHER,35.71mm ID x 57.15mm OD x 3.4mm Thk

- flat, 1-13/32 x 2-1/4 x 3/32 inch

4шт.

22337R1

PIN,1/4" x 2 1/2", Coiled

1шт.

6

820471C1

PLATE

BLADE - widespread, left-hand, six required on Model 530, eight required on Models 540, 550, 560

6-8шт.

6

820472C1

PLATE

BLADE - widespread, right-hand, six required on Model 530 eight required on Models 540, 550 and 560

6-8шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Blades to supports, 24 required on Model 530, 32 required on Models 540 and 550, not used on Model 560 Hex, 1/2"-13 x 1", G5, Full Thd

32шт.

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Blades to supports, Used on Model 560 Hex, 1/2"-13 x 1 1/4", G8, Full Thd

32шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex, 24 required on Model 530, 32 required on Model 540 and 550, not used on Model 560 1/2"-13, G5

32шт.

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8, used on Model 560 only

32шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , 24 required on Model 530, 32 required on Model 540 and 550, not used on Model 560 1/2"

32шт.

7

821797C1

SHIELD

- widespread shaft, right-hand

1шт.
