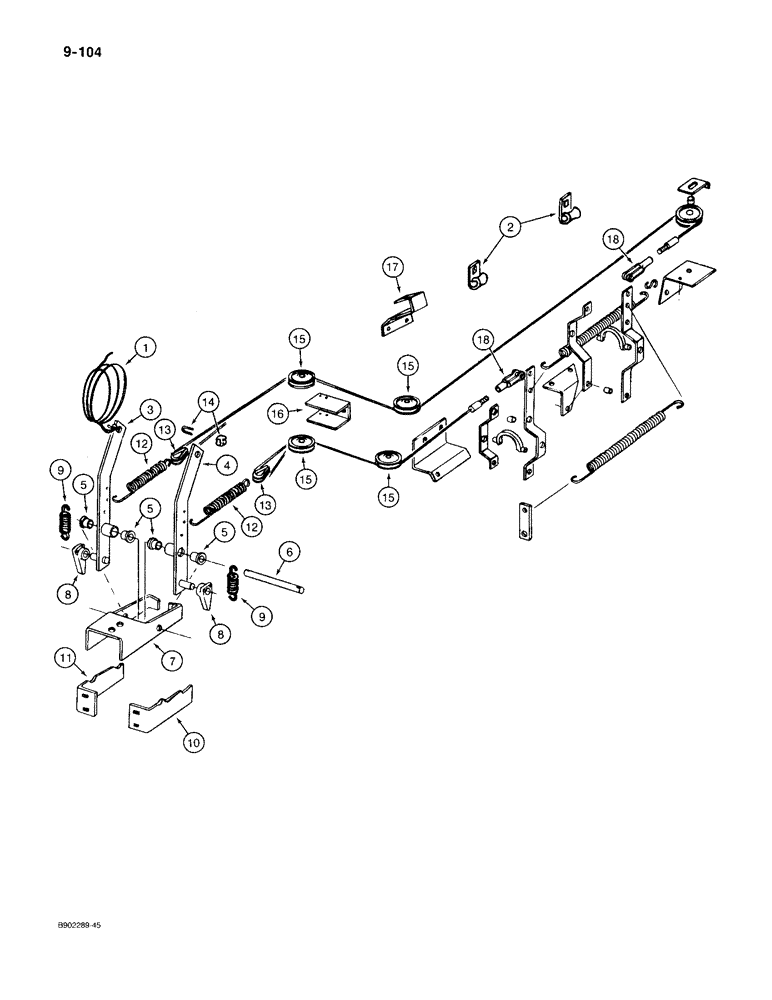

Запчасти Case IH 560 (9-104) - WIDESPREAD AND APRON DRIVE CONTROLS, USED ON MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

ROPE - lever control, 1/4 inch x 12 foot, nylon, buy locally

1шт.

2

820597C2

GUIDE

- cable

2шт.

3

822509C1

LEVER

- widesprad drive control

1шт.

4

822508C1

LEVER

- apron drive control

1шт.

5

820317C1

BUSHING

- lever pivot

4шт.

6

820489C1

PIN

- lever pivot

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , In lever pivot pin 1/8" x 3/4"

2шт.

7

820486C2

CHANNEL

- lever pivot pin support

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Support channel to main drive front shaft bearing support

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch, On front bolt only

1шт.

8

820343C1

PAWL

- control level selector

2шт.

9

34A

SPRING

- pawl

2шт.

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 3/64 inch, on lever pawl pin

4шт.

432-1216

COTTER PIN,3/16" x 1"

2шт.

10

822512C1

SECTOR

SELECTOR - apron drive control lever

1шт.

11

822511C1

SECTOR

SELECTOR - widespread drive control lever

1шт.

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch, selectors to main drive front shaft bearing support

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

12

357832R1

SPRING

- control cable, front

2шт.

13

457796R1

EYE

- cable, control

2шт.

14

480472R1

CLIP

CLAMP - cable control, replaces 457797R1

4шт.

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

15

820631C1

PULLEY

- cable guide

4шт.

495-81099

WASHER,0.2" ID x 0.5" OD x 0.06" Thk

- flat, 13/64 x 1/2 x 3/64 inch, pulley spacers

6шт.

23668R1

CLEVIS PIN,3/16" x 1 3/4"

PIN - clevis, 3/16 x 1-3/4 inch, Pulley mounting pin

2шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

16

820336C1

CHANNEL

- front pulley mounting

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch, Mounting channel to main drive front shaft rear bearing support

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

820335C1

SUPPORT

- side pulley

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, pulley support to front box side support and left-hand side main box

2шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

18

116383

CLEVIS

- on end of control cable

2шт.

141-52

CLEVIS PIN,1/4" x .770"

PIN - 1/4 x 49/64 inch, clevis to clutch control lever

2шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.
