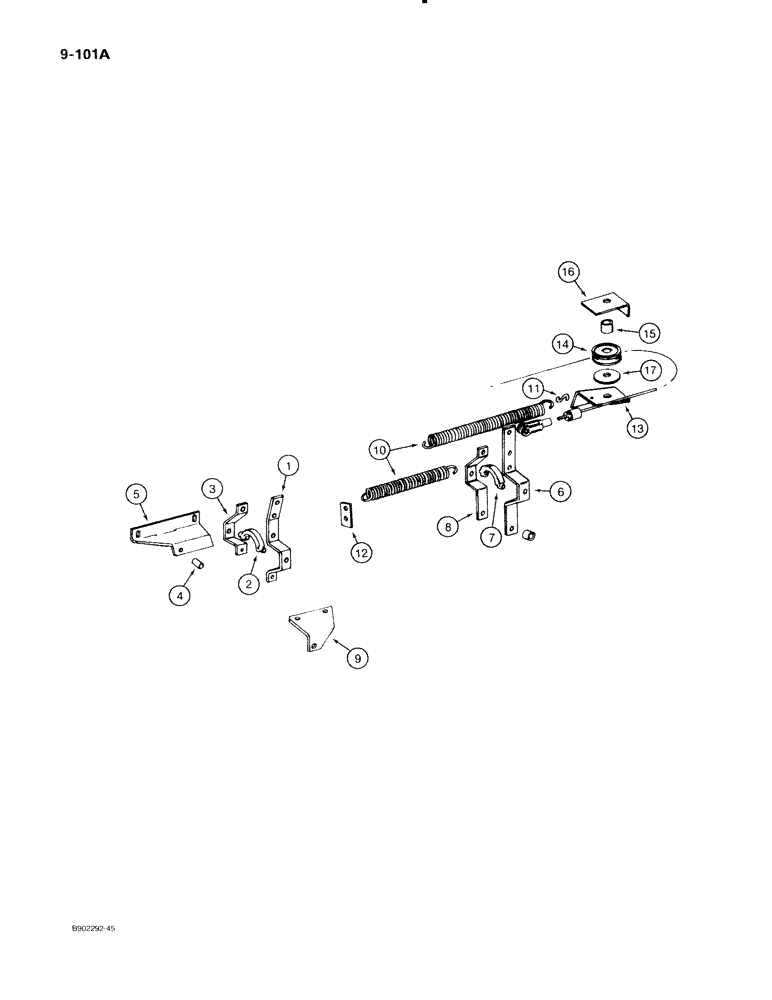

Запчасти Case IH 560 (9-101A) - WIDESPREAD AND APRON DRIVE CONTROLS, MODEL 530 S/N 2240 AND AFTER, MODEL 540 S/N 2684 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

822231C1

LEVER

- apron drive clutch control, replaces 820328C1 lever

1шт.

2

820333C1

FORK

- clutch shifter

1шт.

219-413

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, 1/8 drive type x 9/16 inch

1шт.

3

820326C1

CLAMP

- shifter fork retaining

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, clamp to lever

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

1шт.

4

820520C1

SPACER

- lever pivot

2шт.

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 3/4 x 3/32 inch

2шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 3/64 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

1шт.

5

820327C2

SUPPORT

- apron clutch control lever pivot

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

6

822513C1

LEVER

- widespread drive clutch control, replaces 820324C1 lever

1шт.

7

820333C1

FORK

- clutch shifter

1шт.

219-413

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, 1/8 drive type x 9/16 inch, in fork

1шт.

8

820325C1

CLAMP

- shifter fork retaining

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, clamp to lever

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

1шт.

9

820323C1

SUPPORT

- control lever pivot, widespread clutch

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

10

617905R1

SPRING

- clutch control lever return, 8 inch long, used on Model 530 SN 2240 through 5508, Model 540 SN 2684 through 6326 and on Model 550

2шт.

10

57288D

SPRING

- clutch control lever return, 9 inch long, used on Model 530 SN 5509 and after, Model 540 SN 6327 and after and Model 550

2шт.

11

822534C1

HOOK

LINK - spring connecting

1шт.

12

816792C1

STRAP

BAR - front spring anchor

1шт.

13

821052C2

ANGLE

- rear pulley support

1шт.

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

1шт.

14

820652C1

PULLEY

- widespread cable, rear

1шт.

15

561277R1

SPACER,5/8" Tube x 1/2"

BUSHING - pulley

1шт.

16

820651C1

ANGLE

- cable guide

1шт.

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

17

495-81026

WASHER,21/32" x 1 1/2" x .060"

- flat, 21/32 x 1-1/2 x 3/64 inch

1шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 3/64 inch

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Lever pivot bolt Hex, 1/4"-20 x 1 1/4", G5

2шт.
