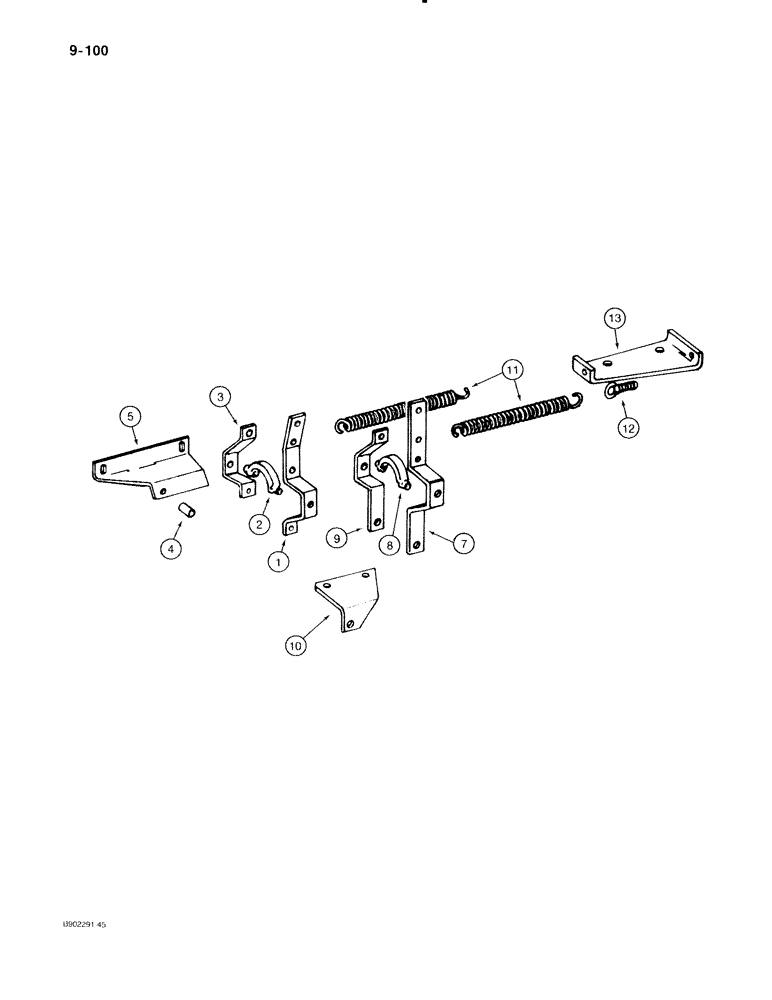

Запчасти Case IH 560 (9-100) - WIDESPREAD AND APRON DRIVE CONTROLS, CLUTCH CONTROL LEVERS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

822231C1

LEVER

- apron drive clutch control, replaces 820328C1 lever

1шт.

2

820333C1

FORK

- clutch shift

1шт.

219-413

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, 1/8 drive type x 9/16 inch

1шт.

3

820326C1

CLAMP

- shifter fork retaining

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, clamp to lever

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

1шт.

4

820520C1

SPACER

- lever pivot

2шт.

495-81105

WASHER,.281" x 3/4" x .120"

- flat, 9/32 x 3/4 x 3/32 inch

2шт.

495-51028

WASHER,0.28" ID x 0.73" OD x 0.06" Thk

- flat, 9/32 x 47/64 x 3/64 inch

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

1шт.

5

820327C2

SUPPORT

- control lever pivot, apron clutch

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, pivot support and drive support to box main and rear left-hand sides

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

7

822513C1

LEVER

- widespread drive clutch control, replaces 820324C1 lever

1шт.

8

820333C1

FORK

- clutch shifter

1шт.

219-413

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, 1/8 drive type x 9/16 inch, in fork

1шт.

9

820325C1

CLAMP

- shifter fork retaining

1шт.

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch, clamp to lever

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- hex flange, 1/4 inch NC

1шт.

10

820323C2

SUPPORT

- control lever pivot, widespread clutch

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Pivot support to lower widespread drive support angle Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

11

617905R1

SPRING

- clutch control lever return

2шт.

12

820534C1

BOLT - eye, return spring anchor eye

2шт.

13

820322C1

SUPPORT

- return spring anchor

1шт.

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

Lever pivot bolt Hex, 1/4"-20 x 1 1/4", G5

2шт.
