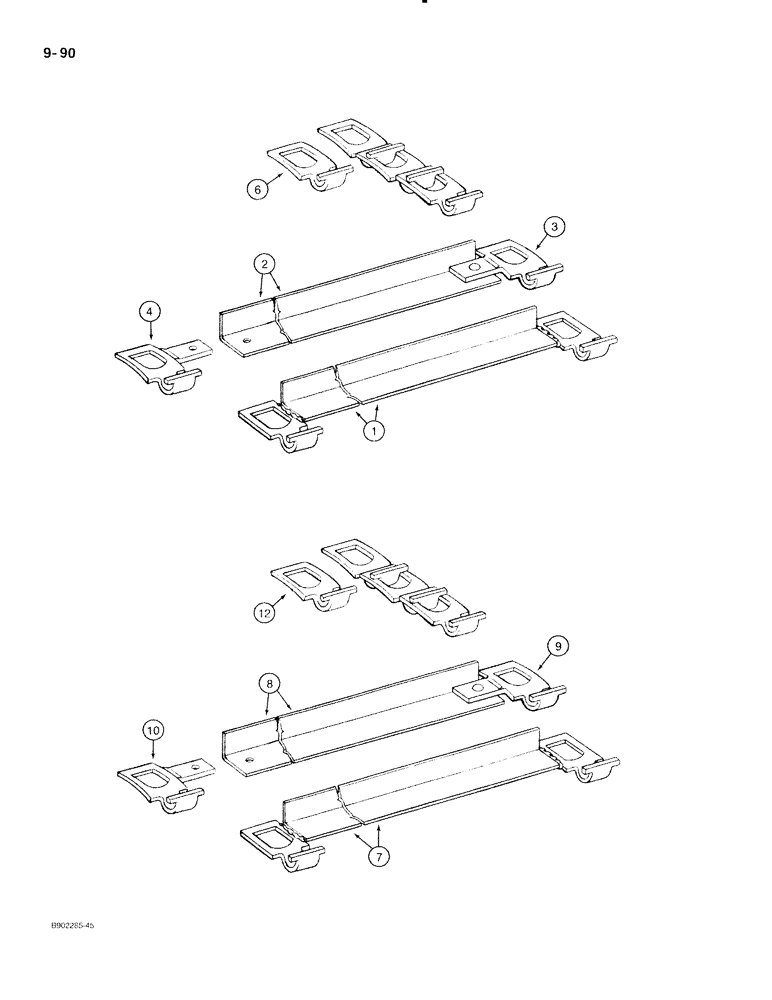

Запчасти Case IH 560 (9-090) - APRON CHAIN, HEAVY DUTY LOCK TYPE, LINKS WITH INSIDE EDGE CURVED, MODEL 550 ONLY (09) - CHASSIS/ATTACHMENTS

822375C91

CHAIN (CE)

CHAIN ASSEMBLY - apron, complete including angles, heavy duty lock type , MODEL 550 ONLY

1шт.

1

NSS

NOT SOLD SEPARAT

ANGLE ASSEMBLY - apron, welded, for service order 821377C91 angle assembly , MODEL 550 ONLY

22шт.

821377C91

ANGLE

ASSEMBLY - apron , MODEL 550 ONLY

22шт.

2

NSS

NOT SOLD SEPARAT

ANGLE - apron , MODEL 550 ONLY

1шт.

3

821197C1

LINK ASSY.

LINK - left-hand attaching , MODEL 550 ONLY

1шт.

4

821198C1

LINK ASSY.

LINK - right-hand attaching , MODEL 550 ONLY

1шт.

5

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown , MODEL 550 ONLY

2шт.

6

821196C1

LINK

- apron, plain , MODEL 550 ONLY

190шт.

822376C91

CHAIN (CE)

CHAIN ASSEMBLY - apron, complete including angles, heavy duty lock type , MODEL 560 ONLY

1шт.

7

NSS

NOT SOLD SEPARAT

ANGLE ASSEMBLY - apron, welded, for service order 821377C91 angle assembly , MODEL 560 ONLY

26шт.

821377C91

ANGLE

ASSEMBLY - apron , MODEL 560 ONLY

26шт.

8

NSS

NOT SOLD SEPARAT

ANGLE - apron , MODEL 560 ONLY

1шт.

9

821197C1

LINK ASSY.

LINK - left-hand attaching , MODEL 560 ONLY

1шт.

10

821198C1

LINK ASSY.

LINK - right-hand attaching , MODEL 560 ONLY

1шт.

11

106916

RIVET,Tr Hd, 5/16" x 1"

- truss head, 5/16 x 1 inch, not shown , MODEL 560 ONLY

2шт.

12

821196C1

LINK

- apron, plain , MODEL 560 ONLY

226шт.
