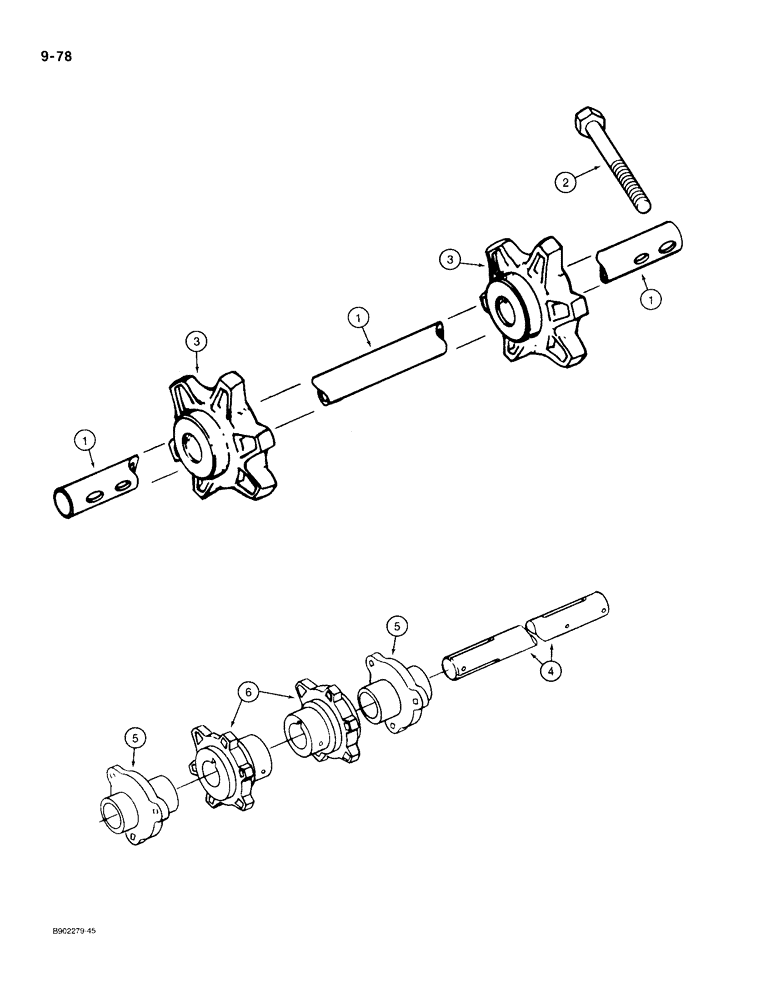

Запчасти Case IH 560 (9-078) - FRONT APRON SHAFT, MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

820354C1

TUBE,1.25" OD, 63.4" Length

- front apron

1шт.

2

820430C1

BOLT,Hex, 1/2" - 13 x 5 1/2", Full Thd

- apron tightener

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

495-81206

WASHER,32.54mm ID x 63.5mm OD x 3.4mm Thk

- flat, 1-9/32 x 2-1/2 x 3/32 inch, on apron tube

2шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , in apron tube 1/4" x 2 1/2"

2шт.

3

820433C1

SPROCKET ASSY.

SPROCKET - front apron, 6 teeth

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

2шт.

4

821532C1

SHAFT

- rear apron, MODEL 560 ONLY

1шт.

495-81223

WASHER,1 17/32" x 2 1/4" x .060"

- flat, 1-17/32 x 2-1/4 x 3/64 inch, four used on apron shaft ends, four used on apron shaft between gearbox and bearing, REAR, MODEL 560 ONLY

8шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), , in right-hand end of shaft, rear apron, model 560 only 1/4" x 2 1/2"

2шт.

5

822209C1

HOUSING,38.252 mm ID x 56 mm OD x 62.23 mm

BEARING - rear apron shaft, MODEL 560 ONLY

2шт.

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch, REAR APRON SHAFT, MODEL 560 ONLY

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, bearings to box rear sides, APRON SHAFT, MODEL 560 ONLY

6шт.

425-106

NUT,3/8"-16, Cl 5

Rear Apron Shaft, Model 560 Only 3/8"-16, G5

6шт.

492-11038

LOCK WASHER,3/8"

REAR APRON SHAFT, MODEL 560 ONLY 3/8"

6шт.

6

822211C1

SPROCKET ASSY.

SPROCKET - rear apron, 6 teeth, SHAFT, MODEL 560 ONLY

2шт.

822514C1

KEY

- square parallel, 3/8 x 2-13/32 inch, sprockets to rear apron shaft, MODEL 560 ONLY

2шт.

553110R1

LOCK PIN,5/16" x 2 3/4", Slotted

Pin, , sprockets to rear apron shaft, model 560 only 5/16" x 2 3/4", Slotted

2шт.
