Запчасти Case IH 560 (9-074) - WIDESPREAD DRIVE GEARBOX (09) - CHASSIS/ATTACHMENTS

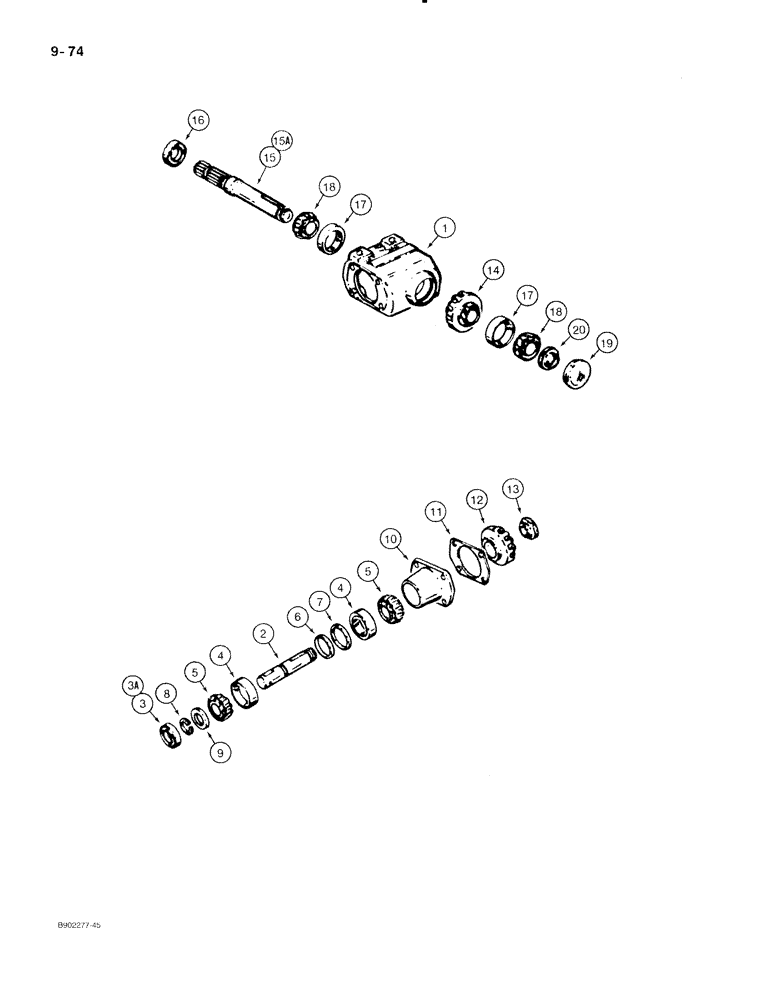

Схема запчастей Case IH 560 - (9-074) - WIDESPREAD DRIVE GEARBOX (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

820215C91

CASE

GEARBOX ASSEMBLY - widespread drive, no longer available, order 820215C92 gearbox assembly

1шт.

820215C92

CASE

GEARBOX ASSEMBLY - widespread drive

1шт.

1

820212C1

CASE

HOUSING - widespread drive gearbox

1шт.

684183R1

PLUG

- vent

1шт.

221-841

PLUG

- hex socket, 1/4 inch PT

2шт.

2

820201C1

SHAFT

- gearbox input

1шт.

3

820202C1

OIL SEAL

- gearbox input shaft, use with 820215C91 gearbox assembly

1шт.

3a

1333952C1

OIL SEAL

- gearbox input shaft, use with 820215C92 gearbox assembly

1шт.

4

651817R1

BEARING CUP

CUP - tapered roller bearing, input shaft

2шт.

5

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, input shaft

2шт.

6

820583C1

SPACER

- input shaft bearing, between bearings

1шт.

7

820204C1

RING

- bearing retaining, between input shaft bearings

1шт.

8

609053R1

SNAP RING,#125, Ext

Ring, Snap, , bearing , in input shaft #125, Ext

1шт.

9

820203C1

WASHER

- bearing spacer, between retaining ring and outer bearing

1шт.

10

820205C1

RETAINER

- input shaft bearing

1шт.

11

820206C1

SHIM

- bearing retainer, .010 inch

1шт.

11

820207C1

SHIM

- bearing retainer, .005 inch

1шт.

11

820208C1

SHIM

- bearing retainer, .003 inch

1шт.

12

820210C1

GEAR

- bevel, input shaft, 14 teeth

1шт.

Q1482

KEY,5/16" Sq x 1", Par

- square parallel, 5/16 x 1 inch

1шт.

13

594436R1

NUT

- lock, input shaft

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Bearing retainer and shims to gearbox

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

14

820211C1

GEAR

- bevel, output shaft, 14 teeth

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

15

820214C1

SHAFT

- gearbox output, use with 820215C91 gearbox assembly

1шт.

15a

820214C2

SHAFT

- gearbox output, use with 820215C92 gearbox assembly

1шт.

16

820213C1

OIL SEAL

SEAL - gearbox output shaft

1шт.

17

651817R1

BEARING CUP

CUP - tapered roller bearing, output shaft

2шт.

18

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

BEARING - tapered roller, output shaft

2шт.

19

594434R1

CAP

- output shaft access hole

1шт.

20

594436R1

NUT

- lock, output shaft

1шт.

Выбрано товаров: 32
