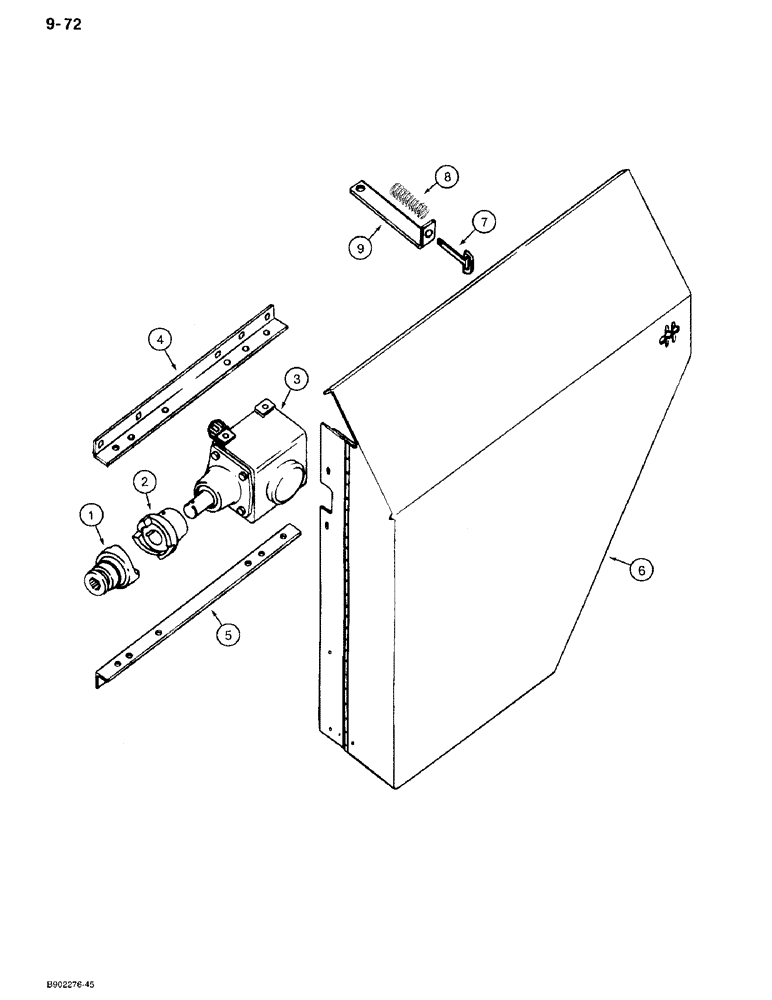

Запчасти Case IH 560 (9-072) - WIDESPREAD DRIVE AND REAR SHIELD, MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

821200C1

CLUTCH

- widespread drive, sliding, 17 spline

1шт.

495-81084

WASHER,1.16" ID x 1.5" OD x 0.06" Thk

- flat, 1-5/32 x 1-1/2 x 5/64 inch

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, straight, 1/4-28 x 1/2 inch, in sliding clutch

1шт.

2

820235C1

SPLINED COUPLING

CLUTCH - widespread drive, pinion

1шт.

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

Pinion clutch to gearbox input shaft 5/16" x 2 1/2", Coiled

1шт.

3

820215C92

CASE

GEARBOX - widespread drive, parts list page 9-75

1шт.

19998R1

PIN,1/2" x 2 1/2", Coiled

output shaft to widespread 1/2" x 2 1/2", Coiled

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Gearbox to support angles Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

4

820321C2

ANGLE

- widespread drive, upper support

1шт.

5

820320C2

ANGLE

- widespread drive, lower support

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, drive support angles to left-hand rear side

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

6

821581C1

SHIELD

- apron drive

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch, Hinge to rear drive support

2шт.

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

593377R1

LATCH

- shield

1шт.

8

M296

SPRING

- compression, shield latch

1шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch

1шт.

9

821588C1

BRACKET

- latch mounting

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Mounting bracket to widespread drive support lower angle Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

425-106

NUT,3/8"-16, Cl 5

1шт.

492-11038

LOCK WASHER,3/8"

1шт.
