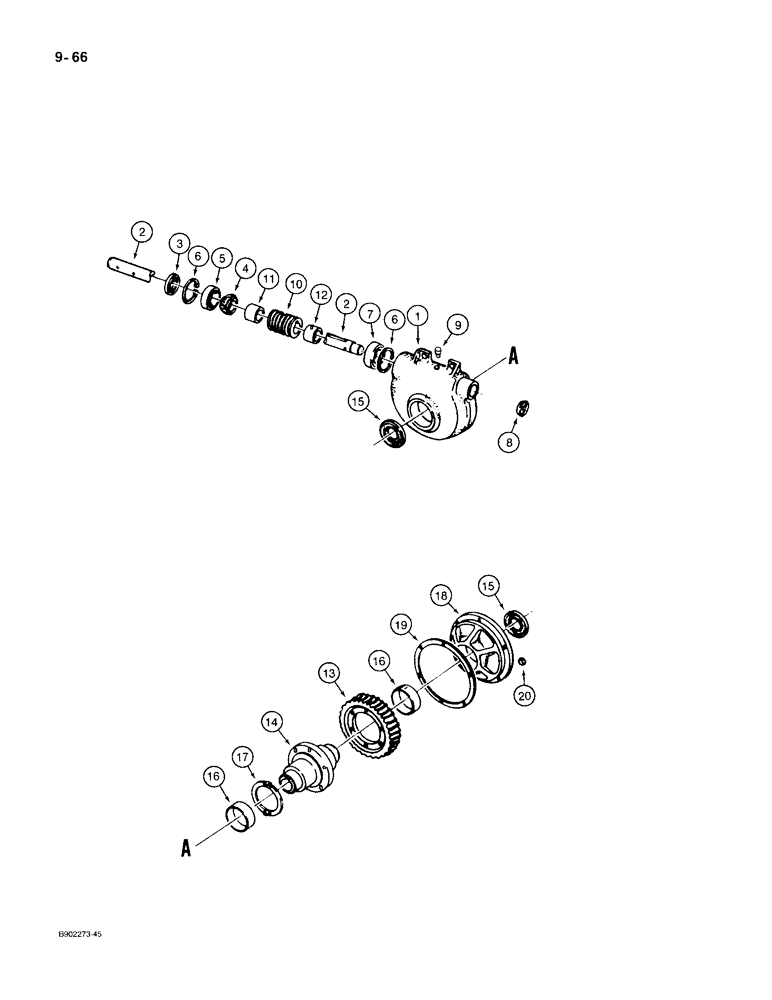

Запчасти Case IH 560 (9-066) - APRON DRIVE GEARBOX, MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

822273C93

CASE ASSY.

GEARBOX ASSEMBLY - apron drive gear

1шт.

1

822597C2

CASE

HOUSING - apron drive gear

1шт.

2

822223C2

SHAFT

- gearbox input

1шт.

3

820225C1

SEAL

- input shaft

1шт.

4

594446R91

ROLLER BEARING

BEARING - tapered roller, input shaft, front

1шт.

5

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP - tapered roller bearing, input shaft, front

1шт.

6

A10506

SNAP RING,2.44", Int, #244

Ring, Snap, , brg 2.44", Int, #244

2шт.

7

609654R91

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING - input shaft, rear

1шт.

8

594434R1

CAP

PLUG - gearbox housing

1шт.

9

684184R1

PLUG

- vent

1шт.

10

822594C2

GEAR

- apron, drive worm type

1шт.

Q20

KEY,1/4" Sq x 2 1/8", Par

- square parallel, 1/4 x 2-1/8 inch, worm gear to input shaft

1шт.

11

822494C1

BUSHING

- worm gear, front

1шт.

12

822493C1

BUSHING

- worm gear, rear

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

rear bushing to input shaft 5/16" x 1 1/2", Coiled

1шт.

13

822193C1

GEAR

- apron drive, 50 teeth with 1/2 inch holes

1шт.

14

822194C1

HUB

- apron drive gear with 1/2 inch holes

1шт.

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8, Gear to hub

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

15

822252C1

OIL SEAL

- apron drive gear

2шт.

16

822525C1

BUSHING

- apron drive gear

2шт.

17

822526C1

THRUST WASHER

- thrust, apron drive gear

1шт.

18

822598C1

COVER

- gearbox

1шт.

19

822430C2

GASKET

- gearbox cover

1шт.

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

8шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

20

A31046

WASHER

- gasket

1шт.
