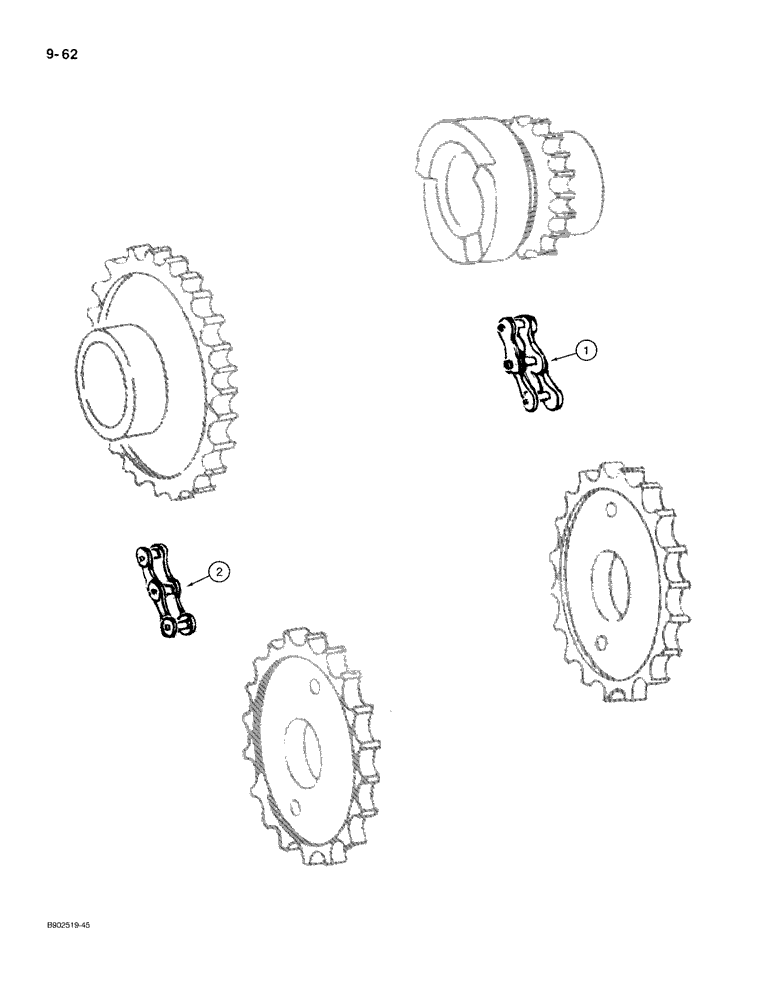

Запчасти Case IH 560 (9-062) - APRON DRIVE CHAINS, MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, regular slow speed, 14 drive to 26 teeth driven, use (53) links of 1790D roller chain plus (1) 1301D connecting link and (2) 1303D offset links

1шт.

1

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional slow speed, 14 drive to 33 teeth driven, use (57) links of 1790D roller chain plus (1) 1301D connecting link and (2) 1303D offset links

1шт.

1

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional slow speed, 14 drive to 41 teeth driven, use (63) links of 1790D roller chain plus plus (1) 1301D connecting link and (1) 1303D offset link

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, regular fast speed, 26 drive to 26 teeth driven, use (59) links of 1790D roller chain plus (1) 1301D connecting link and (2) 1303D offset links

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional fast speed, 26 drive to 33 teeth driven, use (63) links of 1790D roller chain plus (1) 1301D connecting link and (1) 1303D offset link

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - apron drive, optional fast speed, 26 drive to 41 teeth driven, use (69) links of 1790D roller chain plus (1) 1301D connecting link and (1) 1303D offset link

1шт.

1790D

CHAIN (AG)

CHAIN - roller, bulk, 1/2 inch x 10 foot

1шт.
