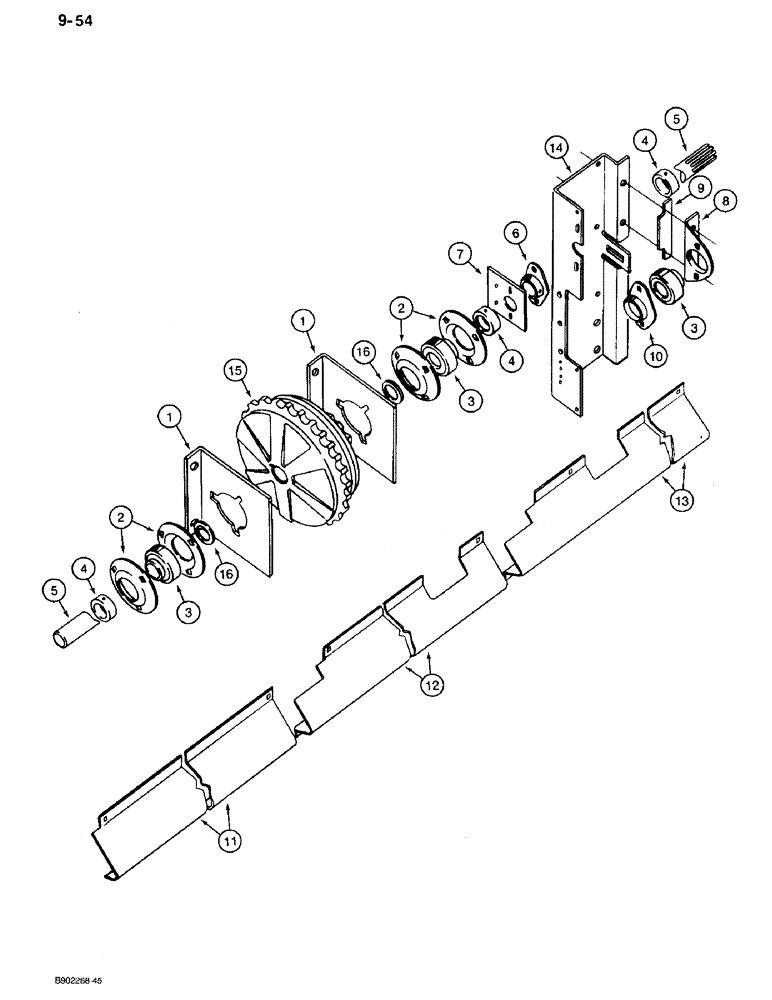

Запчасти Case IH 560 (9-054) - SIDE MAIN DRIVE SHAFT, SHIELDS AND SUPPORTS, MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

821531C1

SUPPORT

- side drive shaft, front bearing

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Support to front left-hand corner support

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

2

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- bearing

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, flange to front bearing support

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

3

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- side drive shaft, front and rear

3шт.

4

557115R11

COLLAR

COLLAR ASSEMBLY - bearing locking

3шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket headless, 5/16 NC x 5/16 inch, cup pt.

3шт.

5

821505C2

SHAFT

- main side drive

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1 - 5/32 x 2 x 3/64 inch, on shaft at front bearings

1шт.

6

822527C91

HOUSING ASSY.

BEARING - side drive shaft, center and rear

3шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

3шт.

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Bearings to supports

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 7/16 x 1 x 5/64 inch, On rear bearing mounting bolts

2шт.

7

821513C1

BAR

PLATE - intermediate and center bearing support

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

8

820483C1

HOUSING ASSY.

FLANGE - bearing support, rear

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Flange to drive rear support Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1 - 1/4 x 3/64 inch

2шт.

9

820341C1

BAR

SHIM - flange

1шт.

10

581469R1

FLANGE,Bearing

- bearing, rear

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, flange to support flange

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

11

821494C1

SHIELD

- side drive shaft, front

1шт.

12

821503C1

SHIELD

- side drive shaft, intermediate

1шт.

13

821504C1

SHIELD

- side drive shaft, rear

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, shields to left-hand box side

18шт.

425-106

NUT,3/8"-16, Cl 5

18шт.

492-11038

LOCK WASHER,3/8"

18шт.

14

821486C1

SUPPORT

- side drive shaft, rear

1шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

5шт.

425-106

NUT,3/8"-16, Cl 5

5шт.

492-11038

LOCK WASHER,3/8"

5шт.

15

REF

INSTRUCTION

CLUTCH - for service parts, see pages 9-45

1шт.

16

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

1шт.
