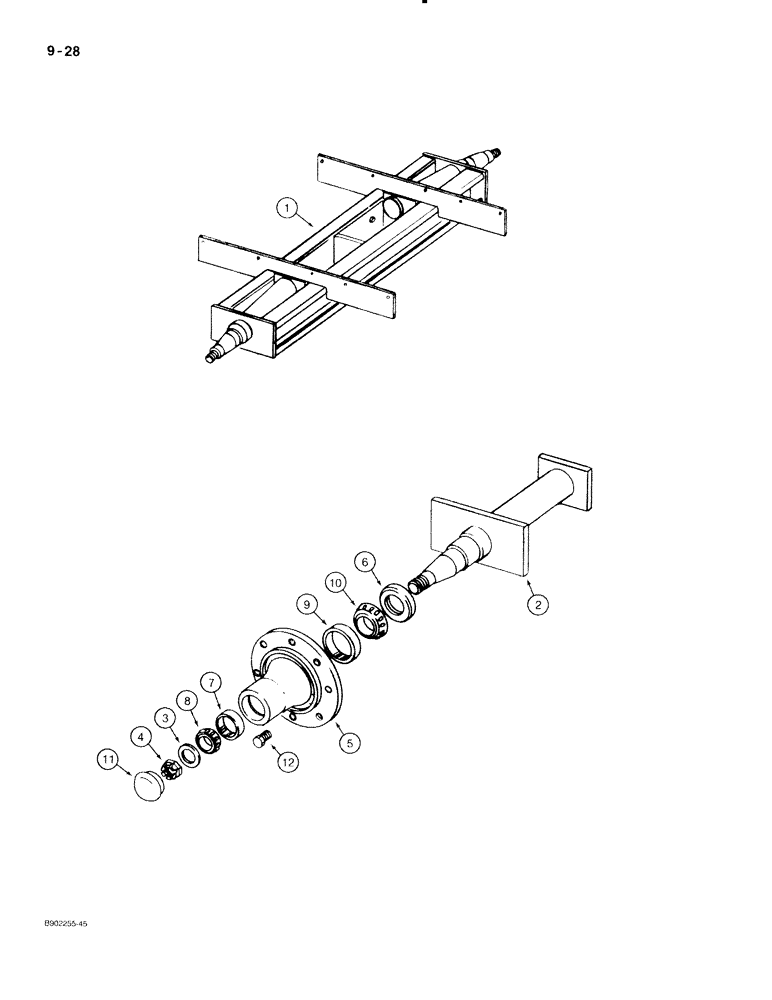

Запчасти Case IH 560 (9-028) - AXLE AND SUPPORTS, MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

821589C91

AXLE

ASSEMBLY - Model 560 only

1шт.

2

821590C91

SPINDLE

- axle

2шт.

3

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch

2шт.

4

425-1318

SLOTTED NUT,1 1/8"-12, G5

NUT - hex slotted, 1-1/8 inch NF, if used

2шт.

432-1248

COTTER PIN,3/16" x 3"

3/16" x 3"

2шт.

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch, axle mounting bar to box side and box bottom support side angle

6шт.

434-824

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT - carriage, 1/2 NC x 1-1/2 inch, axle mounting bar to box side, center vertical support and box bottom support side angle

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

10шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

10шт.

5

821470C2

HUB

- wheel

2шт.

6

820095C91

SEAL

- axle spindle oil

2шт.

7

61801C1

BEARING CUP,63mm OD x 13.5mm W

CUP - tapered roller bearing, outer, wheel hub

2шт.

8

61802C91

ROLLER BEARING,38mm ID x 17mm Thk

BEARING - tapered roller, outer, wheel hub

2шт.

9

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - tapered roller bearing, inner, wheel hub

2шт.

10

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

BEARING - tapered roller, inner, wheel hub, replaces 625742C91 bearing

2шт.

11

378814R1

CAP

- wheel hub

2шт.

12

617918R1

BOLT,9/16" - 18 x 1 15/32"

- wheel, 9/16 NF x 7/8 inch

16шт.
