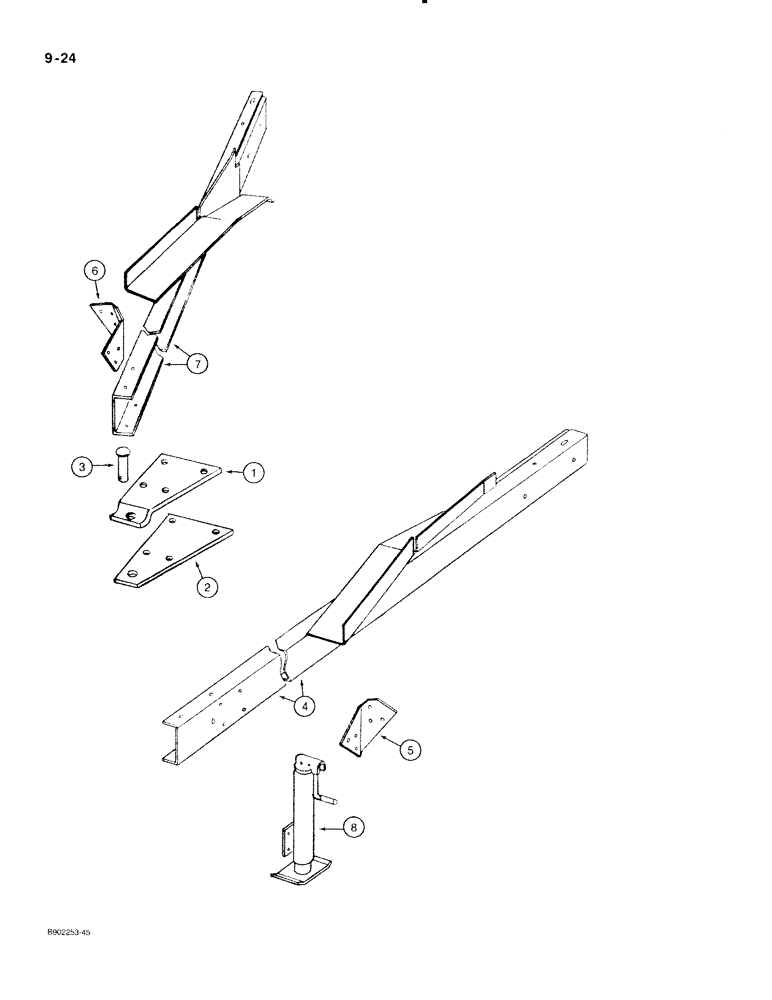

Запчасти Case IH 560 (9-024) - HITCH, USED ON MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

820301C1

PLATE

- clevis, top

1шт.

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch, top plate to hitch channels

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

820296C1

PLATE

- clevis, bottom, flat

1шт.

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

Bottom plate to hitch channels Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

425-1010

NUT,5/8"-11, G5

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

604683R1

HEADED PIN,1" x 4 1/2"

PIN - headed, 1 x 4-1/2 inch, hitch

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

4

821569C1

CHANNEL

- hitch, left-hand side

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Hitch channels to supports Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

5

821541C1

SUPPORT

- hitch channel, left-hand side

1шт.

6

821542C1

SUPPORT

- hitch channel, right-hand side

1шт.

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Supports to box front crossmember Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

7

821570C1

CHANNEL

- hitch, right-hand side

1шт.

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

- hex, 3/4 NC x 1-3/4 inch, hitch channel to axle

4шт.

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

8

821785C91

JACK

- hitch

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.
