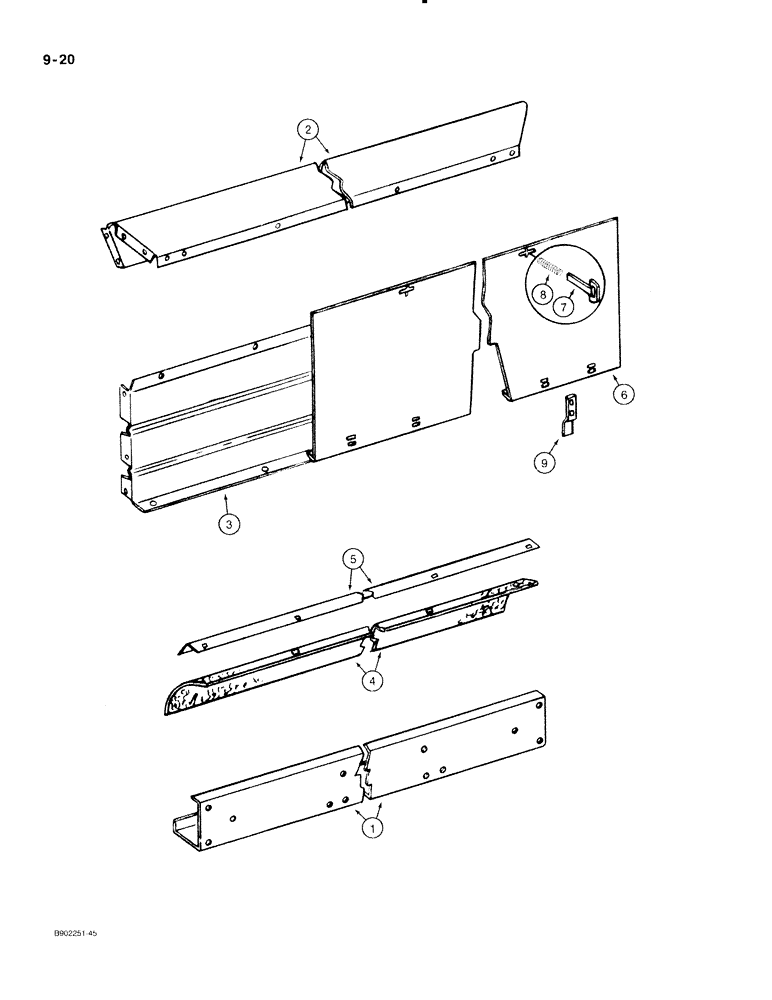

Запчасти Case IH 560 (9-020) - SPREADER BOX, FRONT, USED ON MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

821552C1

MEMBER

CROSSMEMBER - box, front

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Crossmember to side front supports Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

2

1960499C1

SHIELD

- box, front, top, replaces 821593C91 shield

1шт.

202707C2

PRODUCT GRAPHIC

DECAL - caution, keep all shields in place

1шт.

1254170C1

DECAL

- caution, read the Operator's Manual

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Front top member to box main sides and front side supports Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Front top member to front side supports

4шт.

425-106

NUT,3/8"-16, Cl 5

12шт.

492-11038

LOCK WASHER,3/8"

12шт.

3

820318C1

SIDE ASSY.

SIDE - box, front

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Front side to top member, box main sides and front side supports Hex, 3/8"-16 x 3/4", G5, Full Thd

11шт.

425-106

NUT,3/8"-16, Cl 5

11шт.

492-11038

LOCK WASHER,3/8"

11шт.

4

820297C1

SHEET

FLAP - front apron cover

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, cover flap to flap support

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

6шт.

5

820298C1

SUPPORT

- cover flap

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Support to box front side Hex, 3/8"-16 x 3/4", G5, Full Thd

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

6

821472C1

SHIELD

- box front

1шт.

7

593377R1

LATCH

- shield

2шт.

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , In latch 1/8" x 3/4"

2шт.

495-61041

WASHER,10.31mm ID x 25.4mm OD x 1.6mm Thk

- flat, 13/16 x 1 x 3/64 inch

2шт.

8

M296

SPRING

- shield latch

2шт.

9

820804C2

SUPPORT

- front shield, lower

4шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - hex, 3/8 NC x 3/4 inch, lower supports to front shield

8шт.

425-106

NUT,3/8"-16, Cl 5

8шт.

492-11038

LOCK WASHER,3/8"

8шт.
