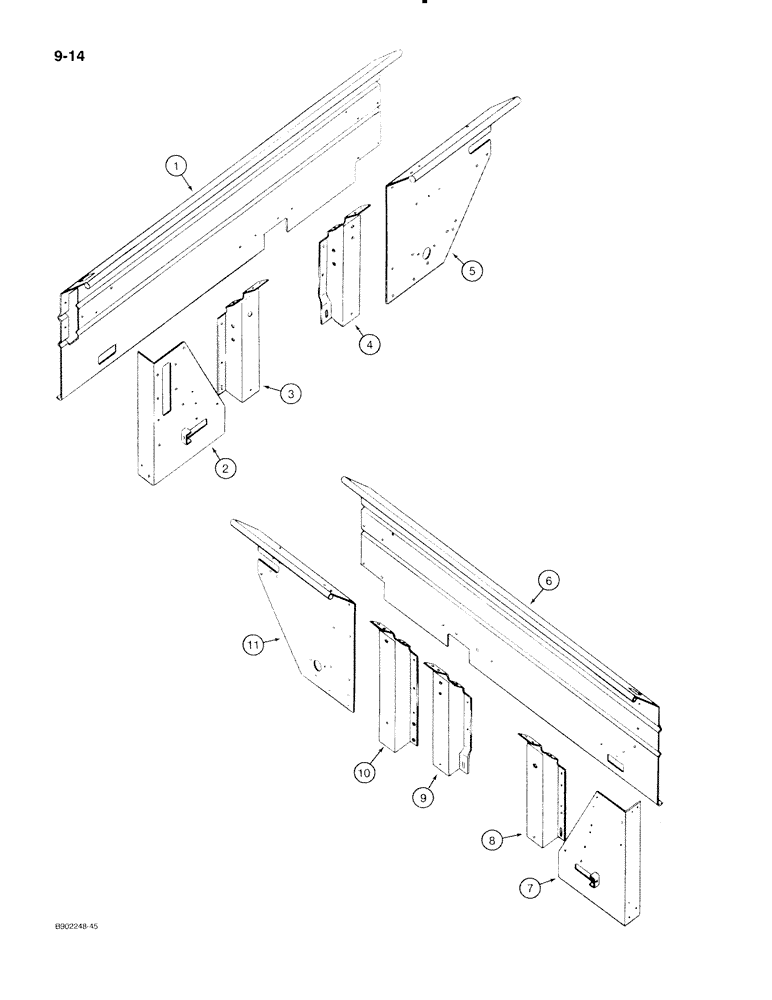

Запчасти Case IH 560 (9-014) - SPREADER BOX , LEFT-HAND SIDE, USED ON MODEL 560 ONLY (09) - CHASSIS/ATTACHMENTS

1

821511C2

SIDE ASSY.

SIDE - box, main, left-hand side, replaces 821511C1 side

1шт.

2

821571C1

SUPPORT

- box, side, front, left-hand

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, front corner supports to main sides and bottom side support angles , LEFT-HAND SIDE

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, self-locking, 3/8 inch NC , LEFT-HAND SIDE

2шт.

3

821556C1

SUPPORT

- box, side, vertical, intermediate , LEFT-HAND SIDE

1шт.

4

821488C1

SUPPORT

- box, side, vertical, left-hand center

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, main sides to intermediate and center vertical sides supports , LEFT-HAND SIDE

16шт.

425-106

NUT,3/8"-16, Cl 5

LH Side 3/8"-16, G5

16шт.

492-11038

LOCK WASHER,3/8"

LH side 3/8"

16шт.

5

821482C1

SIDE ASSY.

SIDE - box, rear, left-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, rear left-hand side to main left-hand side

4шт.

425-106

NUT,3/8"-16, Cl 5

LH Side 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

LH side 3/8"

4шт.

6

821512C2

SIDE ASSY.

SIDE - box, main, right-hand, replaces 821512C1 side

1шт.

7

1960627C1

SUPPORT

- box, side, front, right-hand, replaces 821571C1 support

1шт.

1326215C1

DECAL

- warning, keep drive line shields in place , RIGHT-HAND SIDE

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, front corner supports to main sides and bottom side support angles , RIGHT-HAND SIDE

2шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC , RIGHT-HAND SIDE

2шт.

8

821556C1

SUPPORT

- box, side, vertical, intermediate , RIGHT-HAND SIDE

1шт.

9

821490C1

SUPPORT

- box, side, vertical, right-hand, center

1шт.

10

820316C1

SUPPORT

- box, side, rear, vertical, right-hand

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, main sides to intermediate and center vertical side supports , RIGHT-HAND

16шт.

425-106

NUT,3/8"-16, Cl 5

RH Side 3/8"-16, G5

16шт.

492-11038

LOCK WASHER,3/8"

RH side 3/8"

16шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, right-hand rear and intermediate vertical side supports to main, right-hand rear and bottom side support angles

6шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC , RIGHT-HAND SIDE

6шт.

11

821483C1

SIDE ASSY.

SIDE - box, rear, right-hand

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, main and rear right-hand sides to rear right-hand vertical side support

8шт.

425-106

NUT,3/8"-16, Cl 5

RH Side 3/8"-16, G5

8шт.

492-11038

LOCK WASHER,3/8"

RH side 3/8"

8шт.
