Запчасти Case IH 560 (9-128) - HYDRAULIC END GATE CONTROLS, ALL MODELS, BUILT 1980 AND AFTER (08) - HYDRAULICS

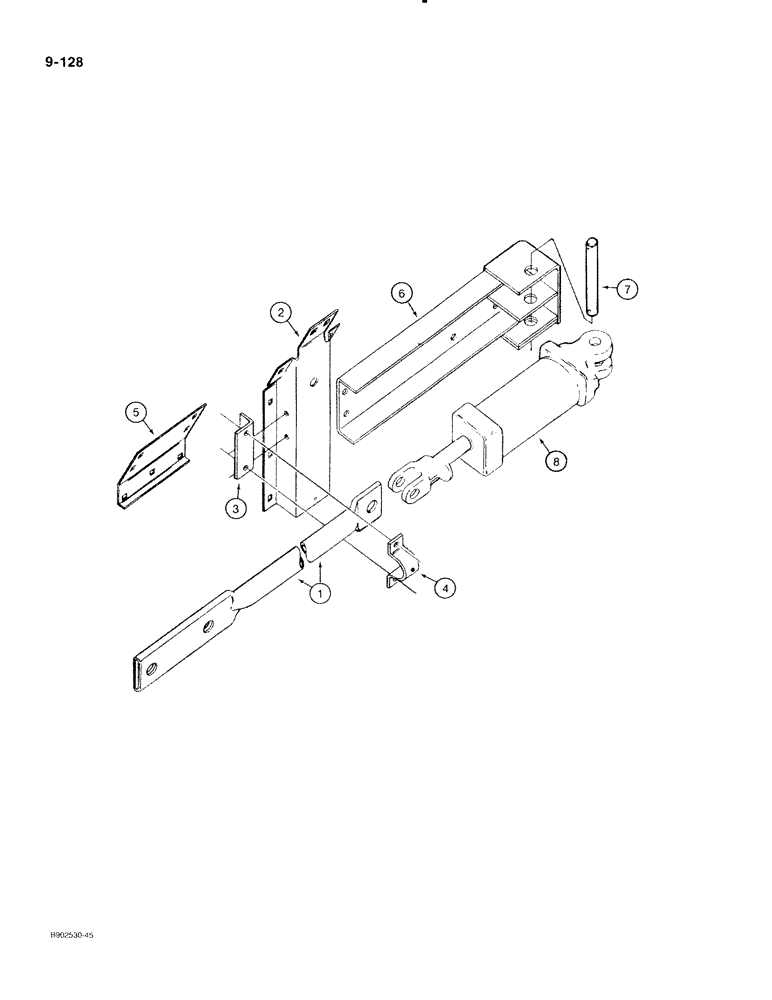

Схема запчастей Case IH 560 - (9-128) - HYDRAULIC END GATE CONTROLS, ALL MODELS, BUILT 1980 AND AFTER (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

1

821681C1

PIPE

- cylinder push, used on Models 530 and 540

1шт.

1

821682C1

PIPE

- cylinder push, used on Model 550

1шт.

1

821574C1

PIPE

- cylinder push, used on Model 560

1шт.

2

821556C1

SUPPORT

- box, side, vertical

1шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, support to main right-hand side

7шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, support to main right-hand and side angle

2шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange, self-locking, 3/8 inch NC

9шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

3

821669C2

ANGLE

- cylinder push pipe

1шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Angle to weld nuts in vertical support

2шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

492-11038

LOCK WASHER,3/8"

2шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

4

821356C1

SUPPORT

- cylinder push pipe

1шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Support to angle

2шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange, self-locking, 3/8 inch NC

2шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

5

821374C1

REINFORCEMENT

- end gate pivot, right-hand

1шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

434-612

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT - carriage, 3/8 NC x 3/4 inch, reinforcement to box side

6шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange, self-locking, 3/8 inch NC

6шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

6

821351C1

ANCHOR

- cylinder

1шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Anchor channel to front corner of right-hand support and to box main side and vertical support

6шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex, flange, self-locking, 3/8 inch NC

6шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

7

608708R1

PIN

- cylinder front, replaces pin i cylinder

1шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

432-2048

COTTER PIN,5/16" x 3"

Pin, Split (Cotter), 5/16" x 3"

2шт.

Part of hydraulic end gate kits P/N 821595C91 and 821596C91.

1шт.

8

REF

INSTRUCTION

CYLINDER ASSEMBLY - 3-1/2 ID x 8 inch stroke, for correct assembly and components see pages 8-5 through 8-17

1шт.

821595C91

KIT

- hydraulic end gate conversion, for Models 530 and 540, includes 821681C1 pipe and Ref. 2 through P/N 432-2048

1шт.

821596C91

KIT

- hydraulic end gate conversion, for Model 550, includes 821682C1 pipe and Ref. 2 through P/N 432-2048

1шт.

Выбрано товаров: 42
