Запчасти Case IH 560 (8-018) - FLOW DIVIDER CONTROL VALVE (08) - HYDRAULICS

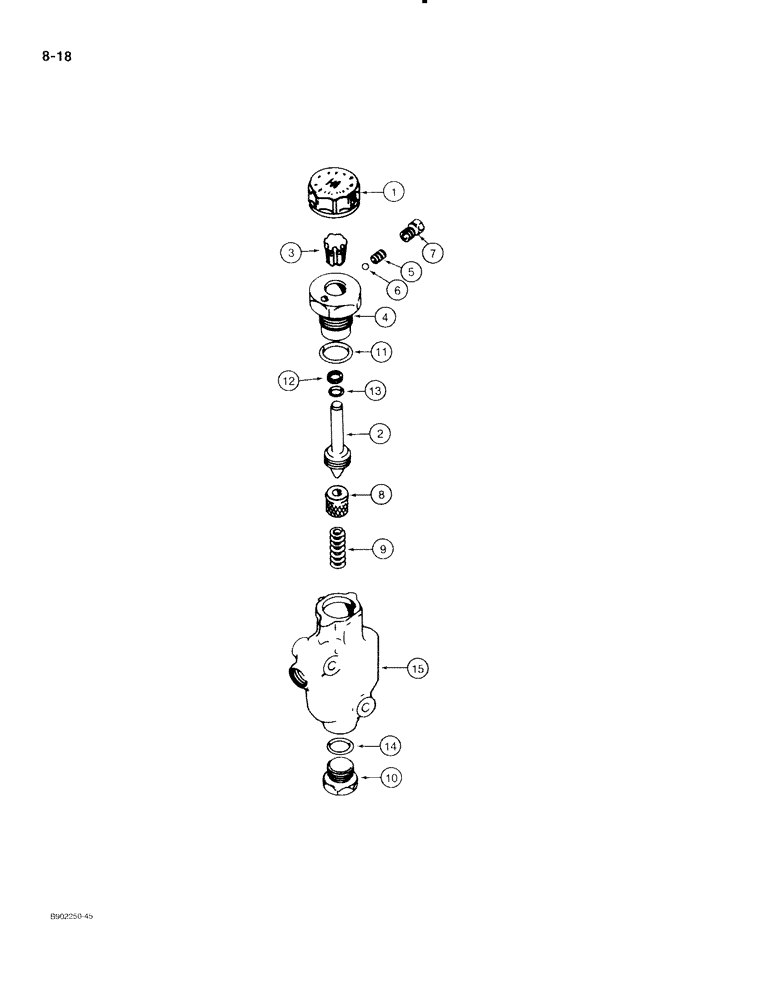

Схема запчастей Case IH 560 - (8-018) - FLOW DIVIDER CONTROL VALVE (08) - HYDRAULICS

Артикул

Название

Примечание

Количество

821015C91

VALVE

ASSEMBLY - flow divider control

1шт.

1

821021C1

KNOB

- control

1шт.

84-11012

SET SCREW,Hex Soc, #10-32 x 3/4"

SCREW - set, hex socket headless, No. 10 NF x 3/4 inch, cup pt, knob to adjusting screw

1шт.

2

821022C1

SCREW,3/4" - 10 x 3 1/32"

- adjusting

1шт.

3

821023C1

BUSHING

- control valve detent

1шт.

483-1082

SCREW - set, hex socket headless, No. 8 NC x 1/8 inch, cup pt, detent bushing to adjusting screw

1шт.

103690

CONNECTING LINK

PIN - straight, 1/8 x 1/2 inch, in detent bushing

1шт.

4

821024C1

ADAPTER

- valve body

1шт.

103690

CONNECTING LINK

PIN - straight, 1/8 x 1/2 inch, in valve adapter

1шт.

5

821025C1

SPRING

- detent

2шт.

6

211-204

BALL

- 3/16 inch, grade 25, chrome alloy steel

2шт.

7

821026C1

CAP

- spring

2шт.

8

821027C1

REGULATOR

- orifice

1шт.

9

821028C1

SPRING

- regulator

1шт.

10

9410359

PLUG

- valve

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - adapter

1шт.

Part of seal kit P/N 821029C1.

1шт.

12

NSS

NOT SOLD SEPARAT

RING - backup, adjusting screw O-ring

1шт.

Part of seal kit P/N 821029C1.

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - adjusting screw

1шт.

Part of seal kit P/N 821029C1.

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - valve plug

1шт.

Part of seal kit P/N 821029C1.

1шт.

15

NSS

NOT SOLD SEPARAT

BODY - control valve, for service order 821015C91 valve assembly

1шт.

821029C1

SEAL KIT

- seal, includes Ref. 11 - 14

1шт.

Выбрано товаров: 25
