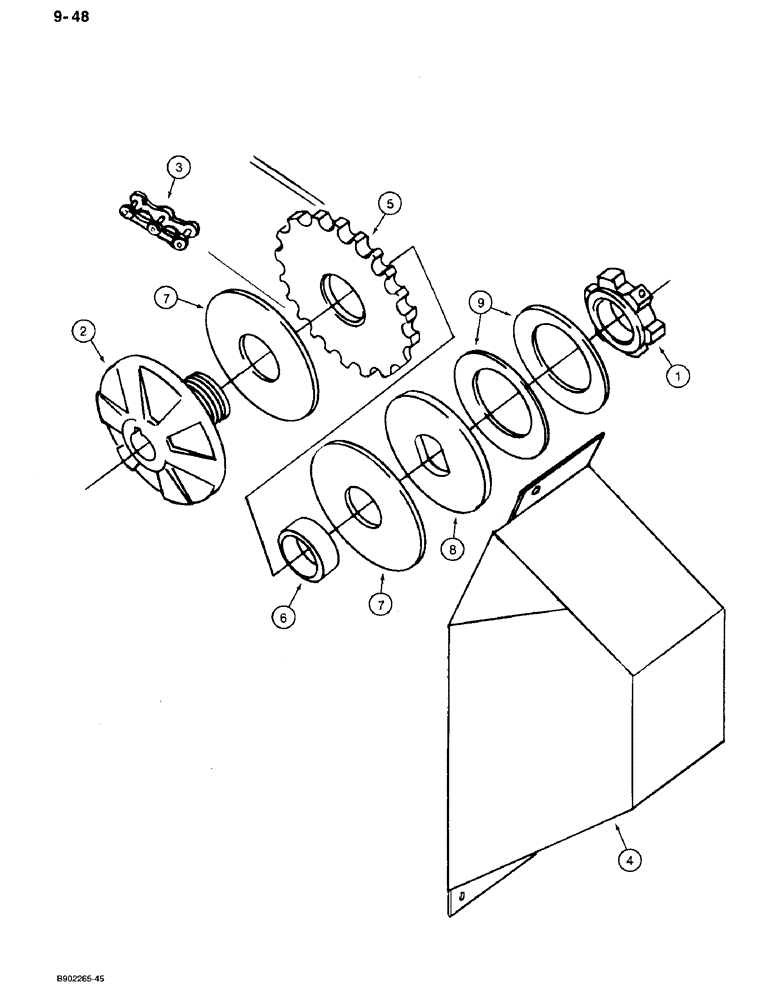

Запчасти Case IH 560 (9-048) - CLUTCH, 1000 RPM, MODEL 560 ONLY (06) - POWER TRAIN

1

592957R1

COLLAR

- clutch locking

1шт.

2

592951R2

HUB

- clutch

1шт.

T14185

KEY - square parallel, 1/4 x 2 - 3/4 inch 1/4" Sq x 2 3/4", Par

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1 - 5/32 x 2 x 3/64 inch

4шт.

3

REF

INSTRUCTION

CHAIN ASSEMBLY - main drive, use 79 links of 611362R91 roller chain (see below) plus (1) 611361R91 connecting link and (1) 612612R91 offset link

1шт.

4

821495C1

SHIELD

- clutch

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

5

820247C91

SPROCKET ASSY.

SPROCKET - main drive clutch, 31 teeth

1шт.

6

592954R2

BUSHING

- clutch sprocket

1шт.

7

95909C1

FACING

- clutch, replaces 592952R1

2шт.

8

592955R1

PLATE

- clutch

1шт.

9

820669C1

WASHER

- thrust, clutch

2шт.

611362R91

CHAIN (AG)

CHAIN - bulk, 3/4 inch x 10 foot

1шт.
