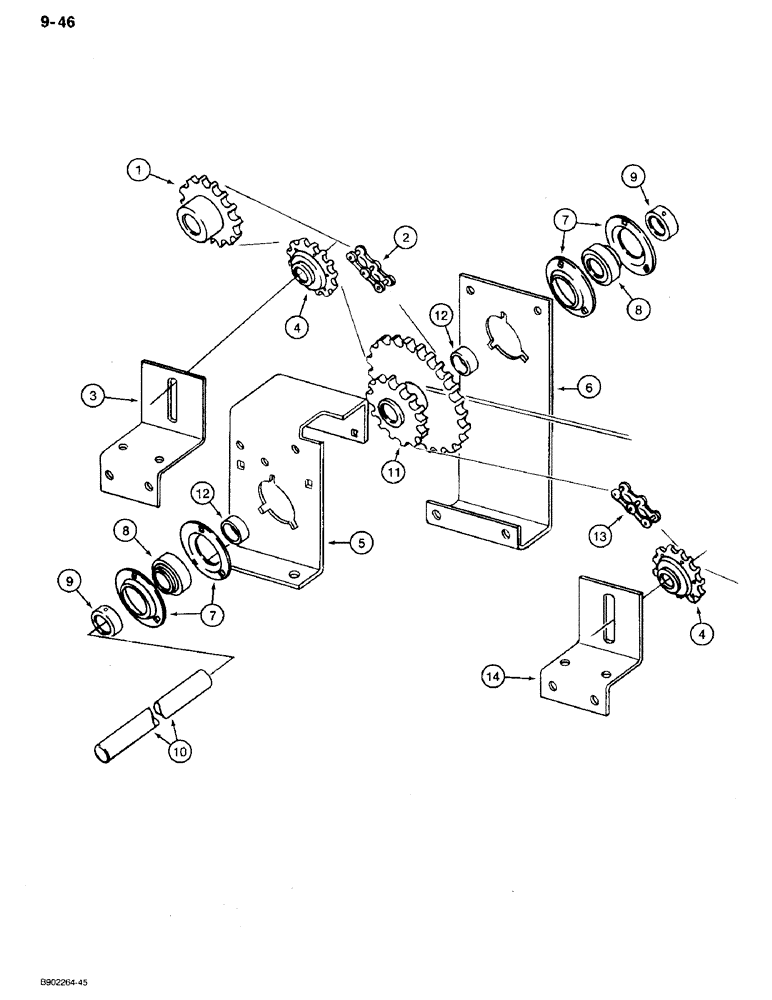

Запчасти Case IH 560 (9-046) - MAIN DRIVE CHAIN, 1000 RPM, MODEL 560 ONLY (06) - POWER TRAIN

1

822140C1

SPROCKET ASSY.

SPROCKET - main drive, 18 tooth, for front main drive shaft parts, see page 9-41

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - main drive, use (65) links of 611362R91 roller chain (see below) plus (1) 611361R91 connecting link and (1) 612612R91 offset link

1шт.

NOTE: For 1000 RPM clutch parts see page 9-47.

1шт.

3

821554C1

SUPPORT

- main drive chain idler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

4

629972R91

DRIVE SPROCKET,15T

SPROCKET - drive chain idler, 15 teeth, replaces 582389R91 sprocket

2шт.

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2 - 1/4 inch

2шт.

425-1010

NUT,5/8"-11, G5

2шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 7/64 inch

1шт.

N11720

WASHER

- square holed, 21/32 x 1-1/2 x 3/32 inch

2шт.

5

821499C1

SUPPORT

- drive sprocket, front

1шт.

6

821553C1

SUPPORT

- drive sprocket, rear

1шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

7

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing, replaces 565631R1 flange

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

8

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- clutch shaft

2шт.

9

557115R11

COLLAR

COLLAR ASSEMBLY - bearing locking

2шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket headless, 5/16 NC x 5/16 inch, cup pt.

2шт.

10

822125C1

SHAFT

- clutch drive

1шт.

11

822145C1

SPROCKET ASSY.

SPROCKET - main drive clutch

1шт.

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

12

822147C1

SPACER

- sprocket

2шт.

13

REF

INSTRUCTION

CHAIN ASSEMBLY - drive, use (79) links of 611362R91 roller chain (see below) plus (1) 611361R91 connecting link and (1) 612612R91 offset link

1шт.

NOTE: For 1000 RPM clutch parts see page 9-47.

1шт.

14

821555C1

SUPPORT

- drive chain idler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

4шт.

611362R91

CHAIN (AG)

CHAIN - bulk, 3/4 inch x 10 foot

1шт.

NOTE: For 1000 RPM clutch parts see page 9-47.

1шт.
