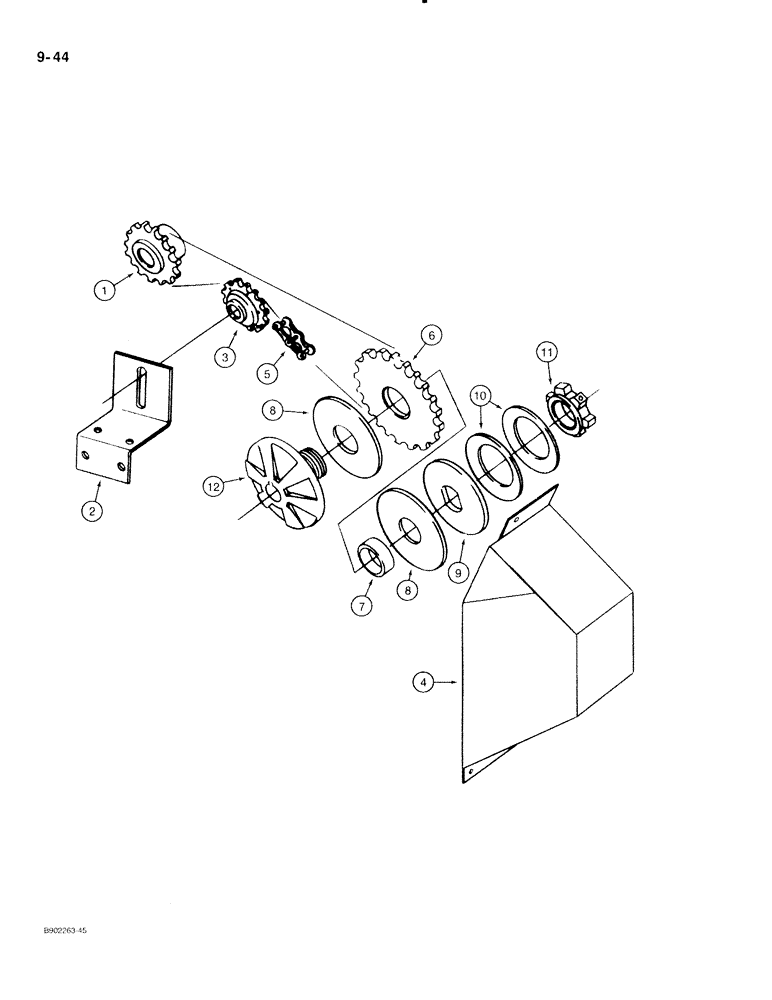

Запчасти Case IH 560 (9-044) - MAIN DRIVE CHAIN AND CLUTCH, 540 RPM, MODEL 560 ONLY (06) - POWER TRAIN

1

822140C1

SPROCKET ASSY.

SPROCKET - main drive, 18 teeth, for front main drive shaft parts, see page 9-39

1шт.

Q26

KEY,1/4" Sq x 1 1/4", Par

- square parallel, 1/4 x 1-1/4 inch, sprocket to front main drive shaft

1шт.

2

821555C1

SUPPORT

- main drive chain idler

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Support to box front crossmember

4шт.

425-106

NUT,3/8"-16, Cl 5

4шт.

492-11038

LOCK WASHER,3/8"

4шт.

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

- flat, 13/32 x 1 x 7/64"

4шт.

3

629972R91

DRIVE SPROCKET,15T

SPROCKET - drive chain idler, 15 teeth, replaces 582389R91 sprocket

1шт.

433-1036

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

BOLT - carriage, 5/8 NC x 2-1/4 inch, sprocket and washers to idler support

1шт.

425-1010

NUT,5/8"-11, G5

1шт.

495-81027

WASHER,21/32" x 1 1/2" x .120"

- flat, 21/32 x 1-1/2 x 3/32 inch

1шт.

498-81010

SQ HOLE WASHER,16.66mm ID x 38.1mm OD x 2.67mm Thk

- square holed, 21/32 x 1-1/2 x 3/32 inch

1шт.

4

821495C1

SHIELD

- clutch

1шт.

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Shield to LH corner support Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

5

REF

INSTRUCTION

CHAIN ASSEMBLY - main drive, use (115) links of 611362R91 roller chain (see below) plus (1) 611361R91 connecting link and (2) 612612R91 offset links

1шт.

6

820247C91

SPROCKET ASSY.

SPROCKET - main drive clutch, 31 teeth

1шт.

7

592954R2

BUSHING

- clutch sprocket

1шт.

8

95909C1

FACING

- clutch, replaces 592952R1 facing

2шт.

9

592955R1

PLATE

- clutch

1шт.

10

820669C1

WASHER

- thrust, clutch

2шт.

11

592957R1

COLLAR

- clutch locking

1шт.

12

592951R2

HUB

- clutch

1шт.

T14185

KEY - square parallel, 1/4 x 2-3/4 inch 1/4" Sq x 2 3/4", Par

1шт.

611362R91

CHAIN (AG)

CHAIN - bulk, 3/4 inch x 10 foot

1шт.
