Артикул
Название
Примечание
Количество

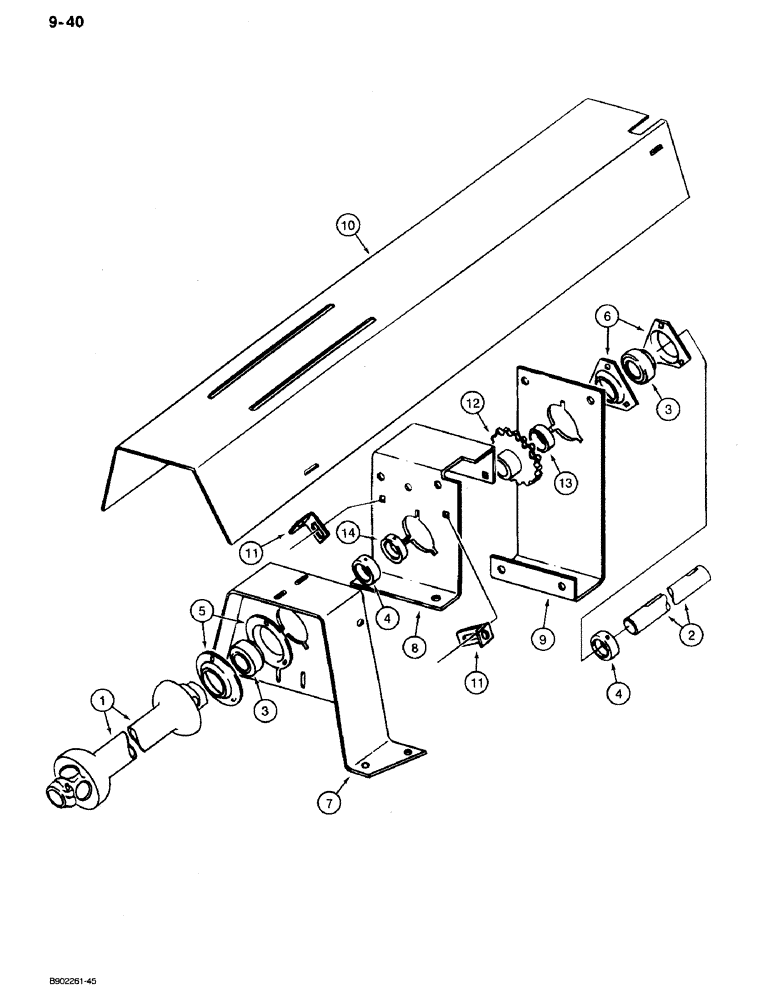

1
REF
INSTRUCTION
SHAFT ASSEMBLY - drive, 1000 RPM, parts list page 9-35
1шт.
2
821684C1
SHAFT
- front, main drive
1шт.
495-81192
WASHER,1.16" ID x 2" OD x 0.12" Thk
- flat, 1-5/32 x 2 x 7/64 inch, on shaft
1шт.
138-2029
PIN,7.92mm OD x 63.5mm L, Coiled
1шт.
126-124
WOODRUFF KEY,#15, 1/4" x 1", HT
1шт.
432-1640
COTTER PIN,1/4" x 2 1/2"
Pin, Split (Cotter), 1/4" x 2 1/2"
1шт.
3
455959R92
BEARING ASSY,28.57mm ID x 62mm OD x 18mm W
- front shaft
2шт.
4
557115R11
COLLAR
COLLAR ASSEMBLY - bearing locking
2шт.
83-1315
SET SCREW,Hex Soc, 5/16"-18 x 5/16"
SCREW - set, hex socket headless, 5/16 NC x 5/16 inch, cup pt
2шт.
5
565631R1
BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"
- front bearing
2шт.
6
662649R1
RETAINER
FLANGE - rear bearing
2шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch, flange to front and rear bearing support
6шт.
425-106
NUT,3/8"-16, Cl 5
6шт.
492-11038
LOCK WASHER,3/8"
6шт.
7
1960544C1
SUPPORT
- drive shaft, front bearing
1шт.
64553C2
PRODUCT GRAPHIC
DECAL - warning, power drive system safety shields
1шт.
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch, support to hitch
4шт.
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
4шт.
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
8
821499C1
SUPPORT
- rear shaft, front bearing
1шт.
9
821553C1
SUPPORT
- rear shaft, rear bearing
1шт.
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch, Rear and front support to front crossmember
4шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC X 1 inch, rear support to front support
2шт.
425-106
NUT,3/8"-16, Cl 5
6шт.
492-11038
LOCK WASHER,3/8"
6шт.
10
821558C2
SHIELD
- front drive shaft, replaces 821592C91 shield
1шт.
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch, shield top front bearing support and to shield support angle
4шт.
425-105
NUT,5/16"-18, G5
- hex, 5/16 NC
4шт.
495-81114
WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk
- flat, 11/32 x 3/4 x 3/64 inch
4шт.
11
821667R1
ANGLE - shield support
2шт.
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch, angle to rear bearing front support
2шт.
425-106
NUT,3/8"-16, Cl 5
2шт.
492-11038
LOCK WASHER,3/8"
2шт.
12
822140C1
SPROCKET ASSY.
SPROCKET - main drive, 18 teeth
1шт.
Q26
KEY,1/4" Sq x 1 1/4", Par
- square parallel, 1/4 x 1-1/4 inch
1шт.
495-81191
WASHER,1 5/32" x 2" x .060"
- flat, 1-5/32 x 2 x 3/64 inch
3шт.
432-1640
COTTER PIN,1/4" x 2 1/2"
Pin, Split (Cotter), 1/4" x 2 1/2"
1шт.
13
822147C1
SPACER
- sprocket
1шт.
14
611902R2
COLLAR
ASSEMBLY - sprocket locking
1шт.
191950
SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt
SCREW - set, hex socket headless, 5/16 NC x 3/8 inch, cup pt
2шт.
Выбрано товаров: 41
