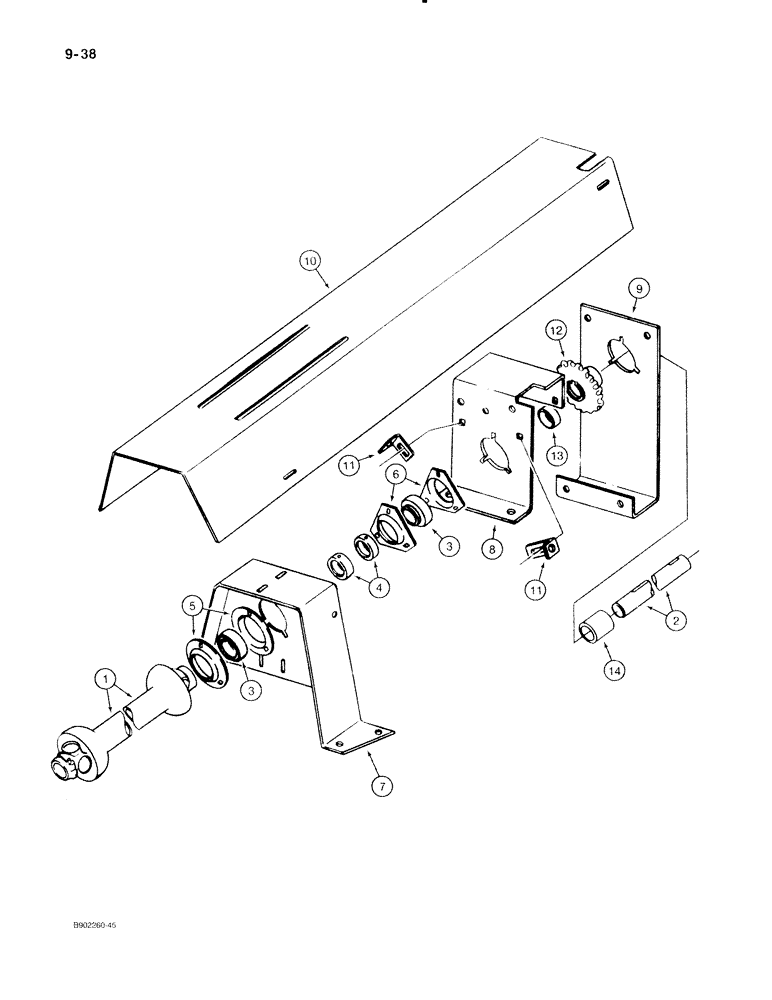

Запчасти Case IH 560 (9-038) - FRONT MAIN DRIVE SHAFT, 540 RPM, MODEL 560 ONLY (06) - POWER TRAIN

1

REF

INSTRUCTION

SHAFT ASSEMBLY - drive, for correct assembly and components see page 9-31 or 9-33

1шт.

2

821684C1

SHAFT

- front, main drive

1шт.

495-81192

WASHER,1.16" ID x 2" OD x 0.12" Thk

- flat, 1-5/32 x 2 x 7/64 inch, on shaft

1шт.

3

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- front shaft

2шт.

4

557115R11

COLLAR

COLLAR ASSEMBLY - bearing locking

2шт.

83-1315

SET SCREW,Hex Soc, 5/16"-18 x 5/16"

SCREW - set, hex socket headless, 5/16 NC x 5/16 inch, cup pt

2шт.

5

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

- front bearing

2шт.

6

662649R1

RETAINER

FLANGE - rear bearing

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, flange to front and rear bearing support

6шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

7

1960544C1

SUPPORT

- drive shaft, front bearing

1шт.

64553C2

PRODUCT GRAPHIC

DECAL - warning, power drive system safety shields

1шт.

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, support to hitch

4шт.

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

8

821499C1

SUPPORT

- rear shaft, front bearing

1шт.

9

821553C1

SUPPORT

- rear shaft, rear bearing

1шт.

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch, Rear and front support to front crossmember

4шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, rear support to front support

2шт.

425-106

NUT,3/8"-16, Cl 5

6шт.

492-11038

LOCK WASHER,3/8"

6шт.

10

821558C2

SHIELD

- front drive shaft, replaces 821592C91 shield

1шт.

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch, shield top front bearing support and to shield support angle

4шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

495-81114

WASHER,8.74mm ID x 19.05mm OD x 1.7mm Thk

- flat, 11/32 x 3/4 x 3/64 inch

4шт.

11

821667C1

ANGLE

- shield support

2шт.

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch, angle to rear bearing front support

2шт.

425-106

NUT,3/8"-16, Cl 5

2шт.

492-11038

LOCK WASHER,3/8"

2шт.

12

822140C1

SPROCKET ASSY.

SPROCKET - main drive, 18 teeth

1шт.

Q26

KEY,1/4" Sq x 1 1/4", Par

- square parallel, 1/4 x 1-1/4 inch

1шт.

495-81191

WASHER,1 5/32" x 2" x .060"

- flat, 1-5/32 x 2 x 3/64 inch

3шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

13

822147C1

SPACER

- sprocket, short

1шт.

14

822469C1

SPACER

- sprocket, long

1шт.
