Запчасти Case IH 555 (A-08) - MAIN DRIVE UNIVERSAL JOINT, 540 RPM

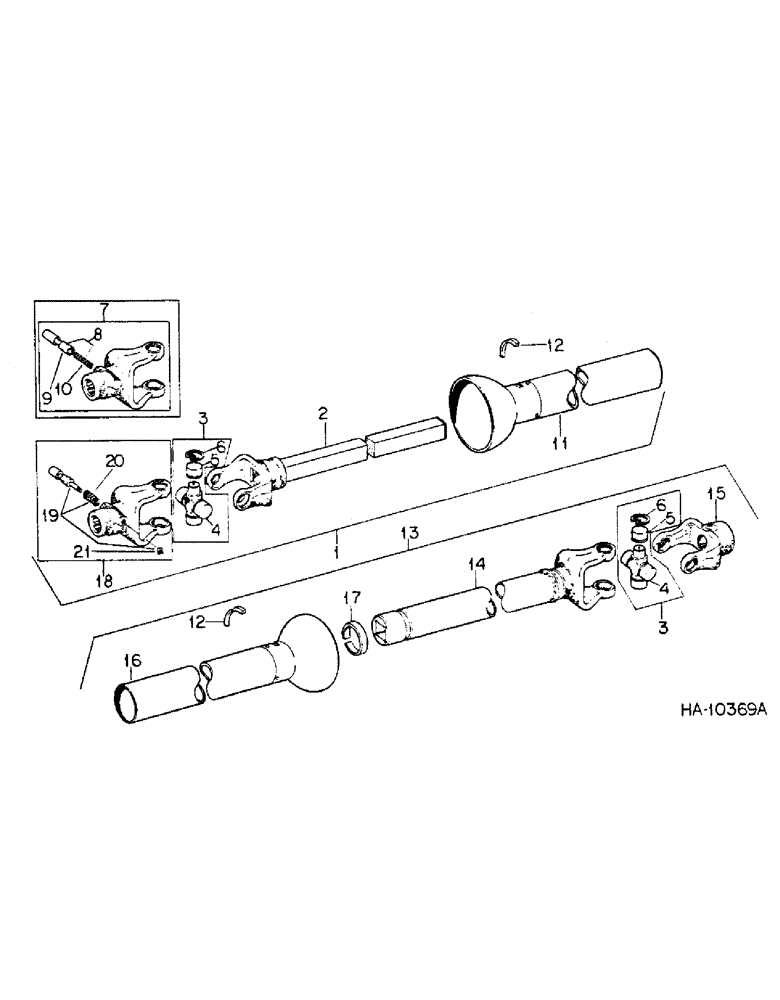

Схема запчастей Case IH 555 - (A-08) - MAIN DRIVE UNIVERSAL JOINT, 540 RPM

Артикул

Название

Примечание

Количество

1

820196C92

JOINT

ASSY, front half universal

1шт.

2

820217C1

YOKE

AND SHAFT

1шт.

3

667558R91

KIT

CROSS ASSY, center

2шт.

4

CROSS, center, not serviced separately, order 667558R91, cross assy

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str lub

2шт.

5

BEARING, cross, not serviced separately, order 667558R91, cross assy

8шт.

6

667561R1

RING

centre cross

8шт.

7

568100R92

YOKE

ASSY, quick detachable, replaces 613897R92

1шт.

8

613867R11

PIN

ASSY, yoke lock, w/slt-spg pin, consists of (1) pin (NSS), (1) spring 613838R1, (1) pin 17078R1

1шт.

9

PIN, yoke lock, not serviced separately, for service order 1-613867R11, pin assy

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

10

613868R1

SPRING

yoke lock pin

1шт.

11

820252C2

SHIELD

outer, includes 1253795C1, product graphic

1шт.

NOTE:REF#11 IF BELL END HAS SEVEN STEPS,IS PART 1960613C1,MEASURES

1шт.

12

599640R1

KIT

BEARING KIT, shield nylon

2шт.

13

820197C91

JOINT

ASSY, rear half universal

1шт.

14

820396C1

YOKE

AND TUBE

1шт.

15

820582C1

YOKE

W/KEYWAY

1шт.

16

820591C1

SHIELD

inner

1шт.

17

822484C1

COLLAR

shield support

1шт.

18

568100R92

YOKE

ASSY, quick detachable

1шт.

19

455346R21

PIN

ASSY, release w/x washer, consists of pin, release (NSS)

1шт.

455347R1

VALVE SPRING

SPRING, pin

1шт.

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

x

1шт.

20

455347R1

VALVE SPRING

SPRING, pin

1шт.

21

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

x

1шт.

SMALL END 2.75

1шт.

OD BELL 5.312

1шт.

17 1/2" LONG 10/24/96

1шт.

Выбрано товаров: 29
