Запчасти Case IH 555 (A-05) - AXLES AND SUPPORTS, 530, 540, 550 AND 555 MODELS

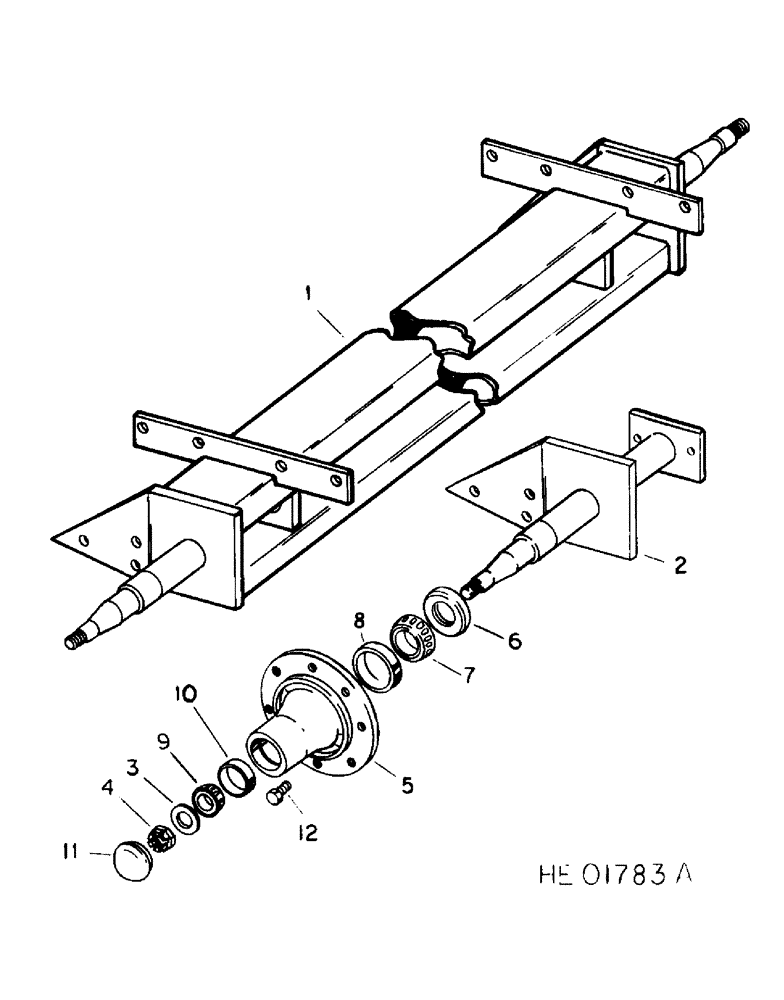

Схема запчастей Case IH 555 - (A-05) - AXLES AND SUPPORTS, 530, 540, 550 AND 555 MODELS

Артикул

Название

Примечание

Количество

1

820525C91

AXLE

ASSY, 530, includes 1-820540C91, spindle and 1-820462C91 spindle

1шт.

1

820569C91

AXLE

ASSY, 540, 550 and 555, includes 1-820571C91 spindle and 1-820592C91 spindle

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

4шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

2

820540C91

SPINDLE

ASSY, axle LH, 530, includes 1-619373R1, washer, 1-70120D, nut and 1-103388, pin

1шт.

2

820571C91

SPINDLE

ASSY, LH axle, 540, 550 and 555, includes 1-619373R1, washer, 1-70120D, nut and 1-103388, pin

1шт.

2

820462C91

SPINDLE

ASSY, axle RH, 530, includes 1-619373R1, washer, 1-70120D, nut and 1-103388, pin

1шт.

2

820592C91

SPINDLE

ASSY, RH axle, 540, 550 and 555, includes 1-619373R1, washer, 1-7012D, nut, and 1-103388, pin

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2-13 x 1-1/4 crg

4шт.

465567R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

BOLT, 1/2-13 x 1-1/2 crg

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

3

619373R1

WASHER

.906 x 2.000 x .164

2шт.

4

70120D

SLOTTED NUT,7/8"-14

NUT, 7/8-14 hex sltd

2шт.

103388

COTTER PIN,1/8" x 1 3/4"

Pin, Split (Cotter), 1/8" x 1 3/4"

2шт.

5

606468R11

HUB

ASSY, wheel, 530, includes 1-663558R1, cup and 1-651817R1, cup

2шт.

5

592920R2

HUB

wheel, 540, 550 and 555

2шт.

6

606556R91

OIL SEAL

SEAL ASSY, oil, 530

2шт.

6

821414C1

OIL SEAL

axle spindle oil, 540, 550 and 555

2шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, wheel hub inner bearing, 530

2шт.

7

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

CONE, wheel hub inner bearing, 540, 550 and 555

2шт.

8

663558R1

BEARING CUP

CUP, wheel hub inner bearing, 530

2шт.

8

ST987

BEARING CUP

CUP, wheel inner bearing, 540, 550 and 555

2шт.

9

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, wheel hub outer bearing, 530

2шт.

9

642955R91

BEARING ASSY,1.25" ID x 2.4409" OD x 0.75"

CONE, wheel hub outer bearing, 540, 550 and 555

2шт.

10

651817R1

BEARING CUP

CUP, wheel hub outer bearing, 530

2шт.

10

642954R1

BEARING ASSY,1" ID x 2.441" OD x 0.8125"

CUP, wheel hub outer bearing, 540, 550 and 555

2шт.

11

663906R1

CAP

wheel hub, 530

2шт.

11

612884R1

HUB CAP

CAP, wheel hub, 540, 550 and 555

2шт.

12

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel, 1/2-20 x 7/8-12, 530

1шт.

12

617918R1

BOLT,9/16" - 18 x 1 15/32"

9/16 x 7/8 wheel, 540, 550 and 555 models

16шт.

Выбрано товаров: 33
