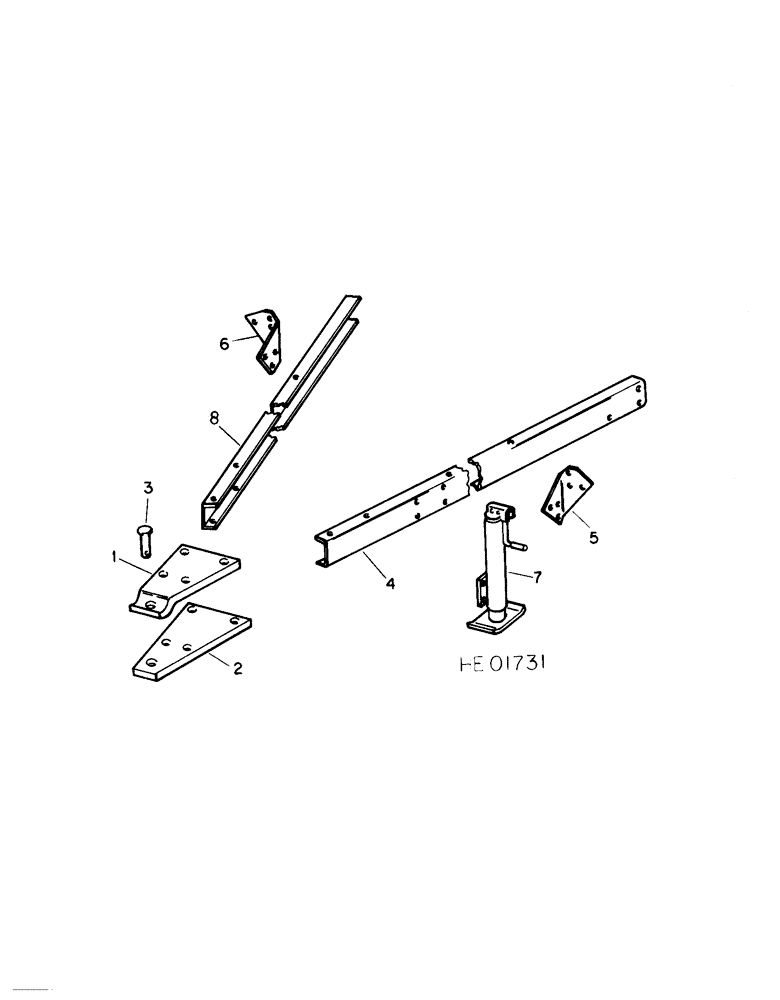

Запчасти Case IH 555 (A-02) - HITCH, 530, 540, 550 AND 555 MODELS

1

820301C1

PLATE

clevis top

1шт.

NLS

NO LONGER SERVICED

BOLT, 5/8-11 x 1-3/4 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

820296C1

PLATE

hitch clevis bottom, 530, flat

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex-hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

820302C1

PLATE

hitch clevis bottom-formed, 540 serial no. 5890 and below, 550 serial no. 4400 and below 555 serial no. and below

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

2

820296C1

PLATE

hitch clevis bottom-flat, 540 serial no. 5891 and above, 550 serial no. 4401 and above, 555 serial no. and above

1шт.

NLS

NO LONGER SERVICED

5/8-11 x 1-1/2 hex hd

4шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

3

604683R1

HEADED PIN,1" x 4 1/2"

PIN, 1 x 4-1/2 std hd dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

4

820427C1

CHANNEL

hitch LH, 530

1шт.

4

820406C1

CHANNEL

hitch LH, 540, for service on machines built serial no. 5890 and below

1шт.

4

821755C1

CHANNEL

hitch LH, 540, for service on machines built serial no. 5891 and above

1шт.

4

820303C1

CHANNEL

hitch LH, 550 and 555, for service on machines built serial no. 4400 and below

1шт.

4

821372C1

CHANNEL

hitch LH, 550 and 555, for service on machines built serial no. 4401 and above

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

5

820372C1

SUPPORT

hitch channel LH

1шт.

6

820373C1

SUPPORT

hitch channel RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

7

821785C91

JACK

ASSY, hitch

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

820428C1

CHANNEL

hitch RH, 530

1шт.

8

820407C1

CHANNEL

hitch RH, 540, for service on machines built serial no. 5890 and below

1шт.

8

821756C1

CHANNEL

hitch RH, 540, for service on machines built serial no. 5891 and above

1шт.

8

820304C1

CHANNEL

hitch RH, 550 and 555, for service on machines built serial no. 4400 and below

1шт.

8

821373C1

CHANNEL

hitch RH, 550 and 555, for service on machines built serial no. 4401 and above

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

3шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 x 1-1/2 hex hd

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.
