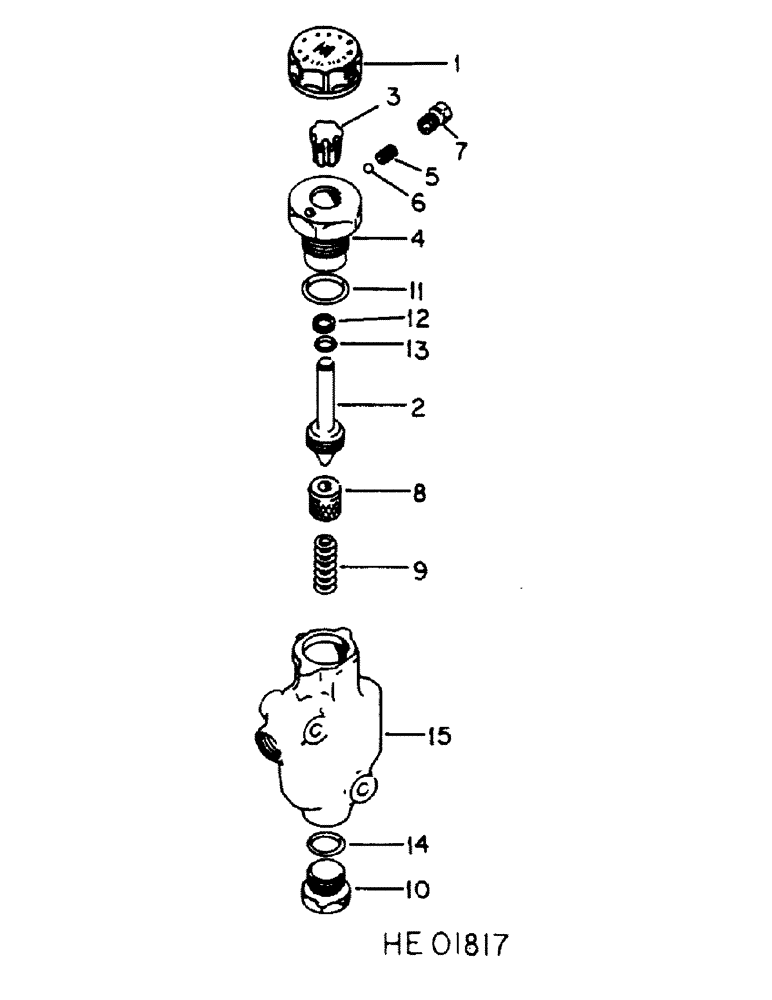

Запчасти Case IH 555 (A-81) - FLOW DIVIDER CONTROL VALVE, 555 MODEL

821015C91

VALVE

flow divider control

1шт.

1

821021C1

KNOB

control

1шт.

140887

SET SCREW,Hex Soc, #10 - 32 x 3/4"

SCREW, #10-32 x 3/4 cup pt SOC hd

1шт.

2

821022C1

SCREW,3/4" - 10 x 3 1/32"

adjusting

1шт.

3

821023C1

BUSHING

control valve detent

1шт.

409897C21

BUTTON

#8-32 x 1/8 cup pt SOC hd

1шт.

103690

CONNECTING LINK

PIN, 1/8 x 1/2 straight

1шт.

4

821024C1

ADAPTER

ADAPTOR, valve body

1шт.

103690

CONNECTING LINK

PIN, 1/8 x 1/2 straight

1шт.

5

821025C1

SPRING

detent

2шт.

6

17006R1

BALL

3/16 steel

2шт.

7

821026C1

CAP

spring

2шт.

8

821027C1

REGULATOR

REGULAR, orifice

1шт.

9

821028C1

SPRING

valve spool

1шт.

10

9410359

PLUG

valve spool

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING, adaptor, not serviced separately, for service order 1-821029C1, valve seal kit

1шт.

12

NSS

NOT SOLD SEPARAT

RING, o-ring back up, not serviced separately, for service order 1-821029C1, valve seal kit

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING, adjusting screw, not serviced separately, for service order 1-821029C1, valve seal kit

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING, valve plug, not serviced separately, for service order 1-821029C1, valve seal kit

1шт.

15

NSS

NOT SOLD SEPARAT

BODY, control valve, not serviced separately, for service order 1-821015C91, valve

1шт.

821029C1

SEAL KIT

valve seal 1-ring (NSS), 1-o-ring (NSS), 1-o-ring (NSS), 1-o-ring (NSS)

1шт.
