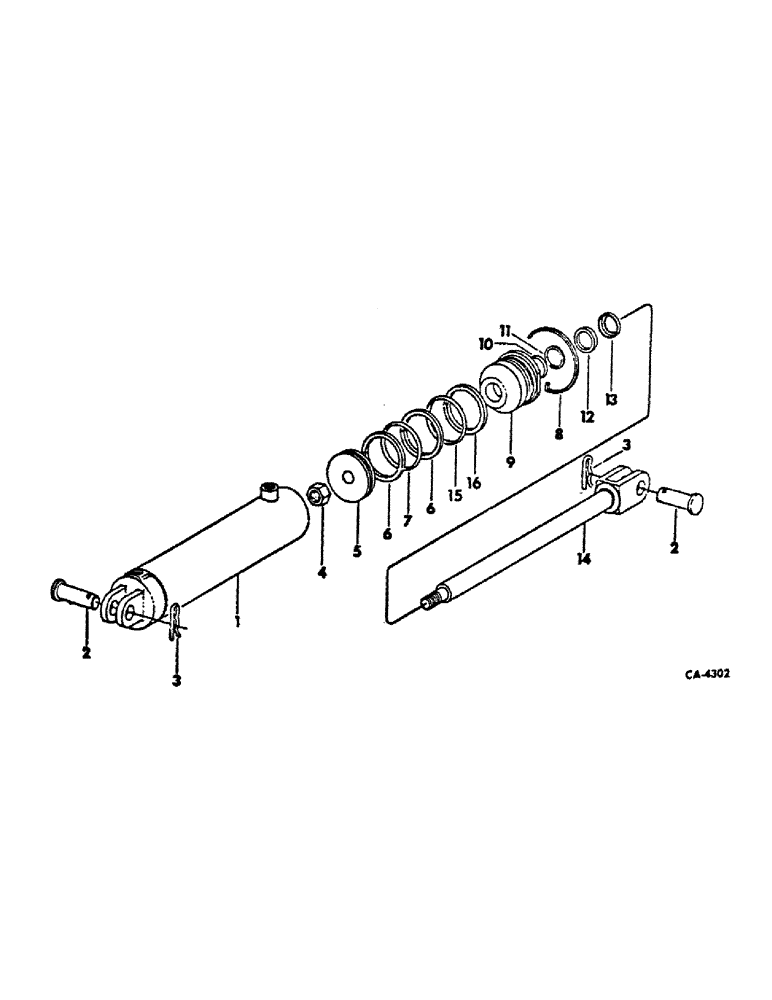

Запчасти Case IH 555 (A-79) - HYDRAULIC CYLINDER, IH, 3.5 X 8 DOUBLE ACTING

61105C91

CYLINDER

3-1/2 x 8 inch da

1шт.

1

BODY ASSY, hyd cyl, replaces 61072C1 by ordering 1272147C91 cylinder assy, w/21252129C1 union and 2-570828R1 o-rings

1шт.

2

64560C1

HEADED PIN

PIN, cylinder pivot

2шт.

3

520175R1

CLIP

PIN, quick attachable cot.

2шт.

4

9413974

LOCK NUT,7/8"-14, GB

NUT, 7/8-14 hex lock

1шт.

5

547724R1

PISTON

cylinder

1шт.

6

WASHER, back-up for service order 547725R91 kit (NSS)

2шт.

7

O-RING, 3-1/8 x 3-1/2 x 3/16 for service order 547725R91 kit (NSS)

1шт.

8

RETAINER, front head for service order 547725R91 kit (NSS)

1шт.

9

60806C1

HEAD

front

1шт.

10

O-RING, 1-1/4 x 1-1/2 x 1/8 for service order 547725R91 kit (NSS)

1шт.

11

WASHER, quad ring back-up for service order 547725R91 kit (NSS)

1шт.

12

WIPER, piston rod for service order 547725R91 kit (NSS)

1шт.

13

RETAINER, piston rod for service order 547725R91 kit (NSS)

1шт.

14

547719R1

ROD

ASSY, piston

1шт.

15

O-RING, 3-1/4 x 3-1/2 x 1/8, front head for service order 547725R91 kit (NSS)

1шт.

16

WASHER, back-up for service order 547725R91 kit (NSS)

1шт.

547725R91

SEAL KIT

PACKAGE, hyd cyl seal ring service, consists of ref nos 4, 6 thru 8, 10 thru 13, 15, 16

1шт.
