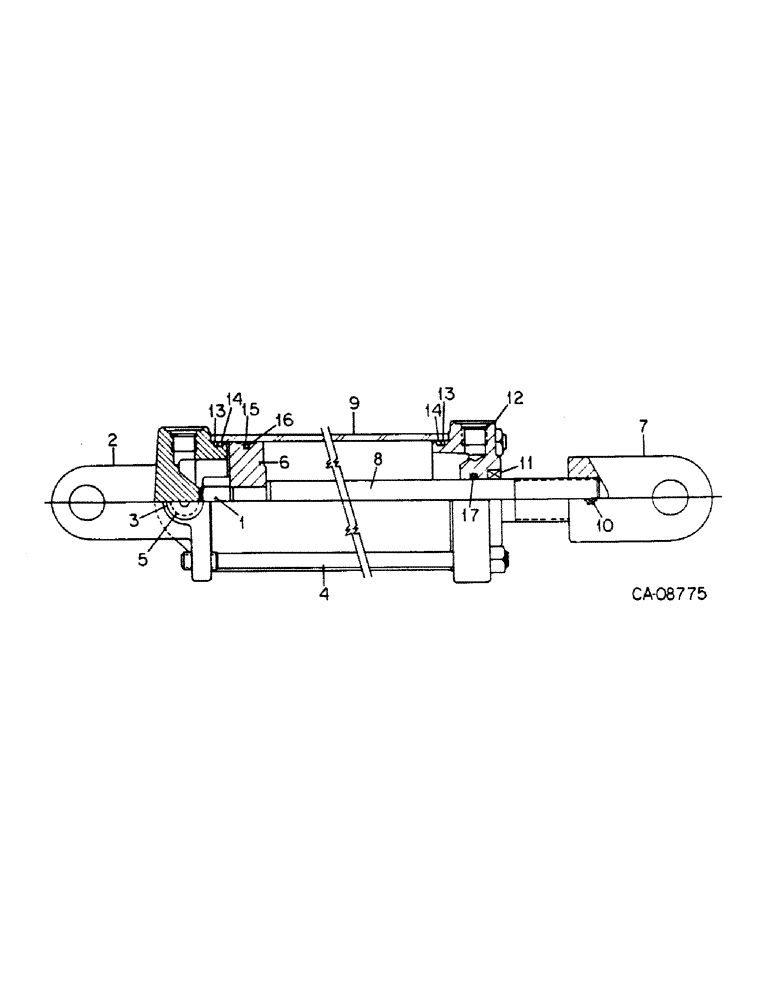

Запчасти Case IH 555 (A-75) - HYDRAULIC CYLINDER, 3.5 X 8.0

1272147C91

CYLINDER

ASSY, hydraulic

1шт.

1

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

2

1272825C1

HEAD

rear

1шт.

3

224582C1

PLUG

3/4-16 str thd o-ring boss

1шт.

4

1272524C1

TIE-ROD,1/2" -13 x 12.65", UNC

BOLT, cylinder tie

4шт.

102637

NUT,1/2"-13, G5

4шт.

5

NSS

NOT SOLD SEPARAT

O-RING, 3/4 OD tube class 6

1шт.

6

145422C1

PISTON

cylinder

1шт.

7

145433C1

CLEVIS, rod end

1шт.

8

145231C1

PISTON ROD

ROD, piston

1шт.

9

NSS

NOT SOLD SEPARAT

SLEEVE, cylinder, order cylinder assy

1шт.

10

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, clevis nylon

1шт.

125843

SET SCREW,Hex Skt, 3/8"-16 x 3/8"

SCREW, 3/8 x 3/8 c/pt znp hdl/s set

1шт.

11

NSS

NOT SOLD SEPARAT

WIPER, piston rod

1шт.

12

1272826C1

HEAD

front

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER, back-up

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

SPRING, piston seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL, piston rod urethane

1шт.

79980C1

SEAL KIT

o-ring and seal service, consists of ref nos 5, 11, and 13 thru 17

1шт.
