Запчасти Case IH 555 (A-74) - HYDRAULIC CYLINDER, 3.5 X 8.0

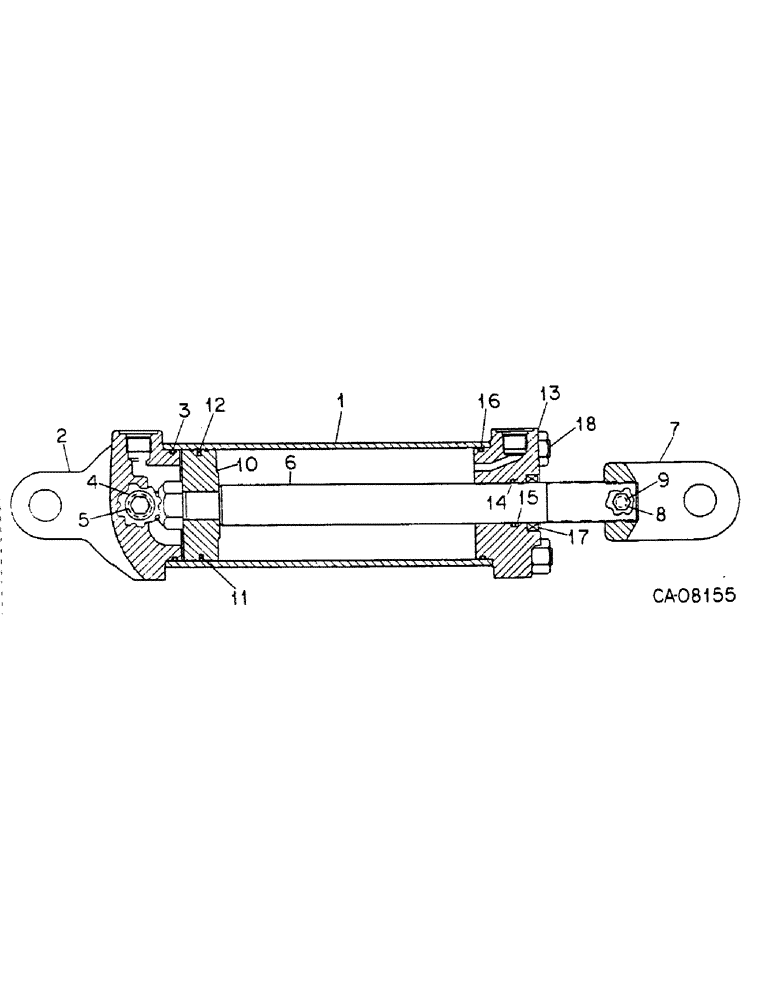

Схема запчастей Case IH 555 - (A-74) - HYDRAULIC CYLINDER, 3.5 X 8.0

Артикул

Название

Примечание

Количество

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSY, hydraulic, replaced by 1272147C91

1шт.

1

142454C1

SLEEVE

cylinder

1шт.

2

142453C1

HEAD, rear

1шт.

3

O-RING, 3-1/4 x 3-1/2 class 6, rear head, order kit 79980C1

1шт.

4

224582C1

PLUG

3/4-16 str thd o-ring boss, replaces 9410359

1шт.

5

O-RING, 1/2 OD tube class 6, o-ring boss plug, order kit 79980C1

1шт.

6

145231C1

PISTON ROD

ROD, piston

1шт.

20268R1

LOCK NUT,7/8"-14, GC

NUT, 7/8-NF PHC p/t lock type 8

1шт.

7

145233R1

END, piston rod

1шт.

8

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

1шт.

9

145453C1

PLUG,Lock, 7.938mm Dia x 3.175mm Thk, Nylon

PAD, rod end insert

1шт.

10

145422C1

PISTON

cylinder

1шт.

11

O-RING, 3 x 3-3/16 class 5, piston, order kit 79980C1

1шт.

12

SEAL, pistor ring, order kit 79980C1

1шт.

13

1260879C1

HEAD

ASSY, front

1шт.

14

SEAL, piston rod urethane, order kit 79980C1

1шт.

15

(Not used in this application)

1шт.

16

O-RING, 3-1/4 x 3-1/2 class 6, front head, order kit 79980C1

1шт.

17

SEAL, piston rod wiper, order kit 79980C1

1шт.

18

142461C1

TIE-ROD,Tie, 5/8" - 11 x 335mm

BOLT, cylinder tie

4шт.

102639

NUT,5/8"-11, G5

4шт.

79980C1

SEAL KIT

o-ring and seal service, consists of ref. nos. 3, 5, 11, 12 14, 16 and 17

1шт.

Выбрано товаров: 22
