Запчасти Case IH 555 (A-73) - RECOMMENDED HYDRAULICS PARTS

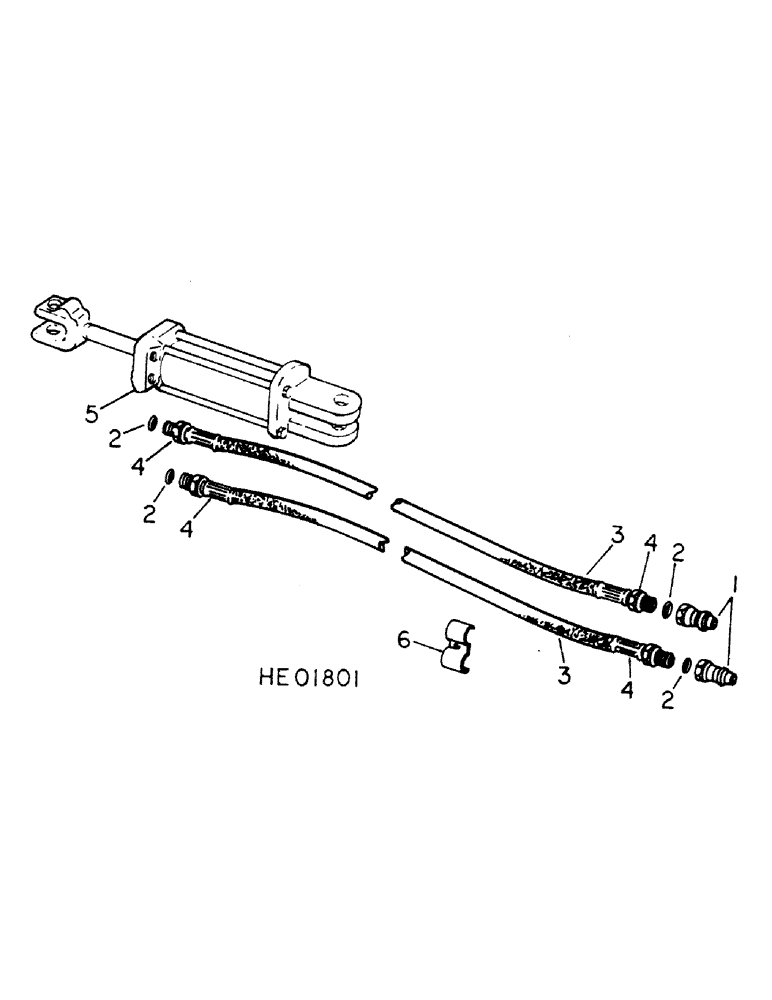

Схема запчастей Case IH 555 - (A-73) - RECOMMENDED HYDRAULICS PARTS

Артикул

Название

Примечание

Количество

1

395149R1

QUICK MALE COUPLING

COUPLER, hose male, opt w/ 544787R91 coupler

2шт.

1

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, opt w/ 395149R1 coupler, for 66 series tractors

1шт.

2

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

4шт.

3

407117R3

HOSE

1/2 ID one wire braid, opt w/407120R1, hose, make hoses from buik stock, select length to suit installation use two each of crimp couplings shown below for each hose

1шт.

3

407120R3

HOSE

1/2 ID two wite braid, opt w/407117R1, hose, make hoses from bulk stock select length to suit installation use two each of crimp couplings shown below for each hose

1шт.

4

997928R1

FITTING,7/8" x 14 Female JIC, 1/2" Hose ID

COUPLING, Kwikrimp 7/8-14 female 37 degree flared tube swivel

4шт.

4

997974R1

FITTING,7/8" x 14 Male ORB, 1/2" Hose ID

COUPLING, Kwikrimp 7/8-14 str thread, o-ring fixed

4шт.

5

371292R95

CYLINDER

ASSY, 3.5 x 8 da, IH, w/7/8-14 ports optional with

1шт.

5

546719R91

CYLINDER

ASSY, 3.5 x 8 da, IH, w/7/8-14 ports optional with

1шт.

5

61105C91

CYLINDER

ASSY, 3.5 x 8 da, IH, w/7/8-14 ports optional with

1шт.

5

403842R93

CYLINDER ASSY, 3.5 x 8 da, IH, w/7/8-14 ports, for service order 1272147C91, cylinder assy and 2-1252129C1 unions 2-61571C1 pins and 520175R1 qa cotter pin

1шт.

5

140683C94

HYDRAULIC CYLINDER

CYLINDER ASSY, 3.5 x 8 da, IH, w/3/4-16 ports, replaced by 1272147C91

1шт.

1252129C1

ADAPTER,7/8" - 14 ORB x 3/4" - 16 ORB

UNION, adapter

2шт.

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

61571C1

PIN

cylinder pivot

2шт.

520175

PIN, quick attachable cot. for use w/140683C94 cylinder assy

2шт.

5

1272147C91

CYLINDER

ASSY, 3.5 x 8 hydraulic, for service on all cylinder see breakdowns following this listing

1шт.

6

677168R1

CLAMP

hyd hose

2шт.

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

Выбрано товаров: 21
