Запчасти Case IH 555 (A-72) - SLURRY PAN ATTACHMENTS

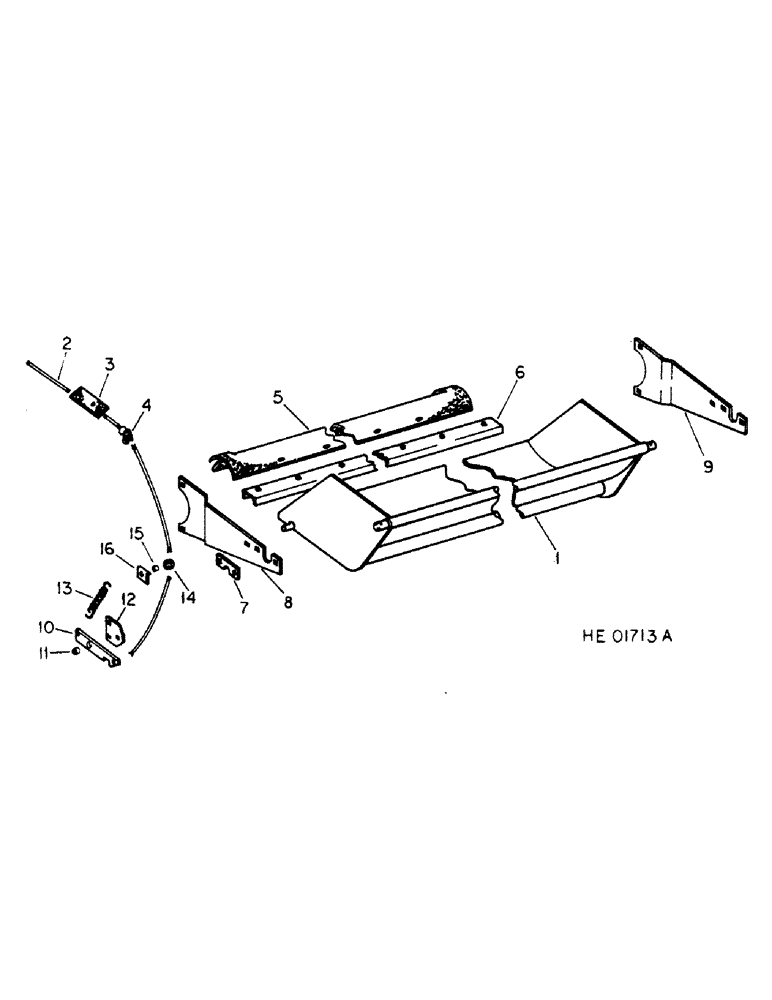

Схема запчастей Case IH 555 - (A-72) - SLURRY PAN ATTACHMENTS

Артикул

Название

Примечание

Количество

1

820565C2

PAN

ASSY, slurry, 530

1шт.

1

820566C2

PAN

ASSY, slurry, 540, 550, 555 and 560

1шт.

2

ROPE, pan control, 1/4 x 30 foot nylon braided, dealer to supply locally

1шт.

3

820586C1

STRIP

rope, front guide

1шт.

4

820597C2

GUIDE

rope, ctr & rear

2шт.

5

820589C1

SHEET

pan seal, 530

1шт.

5

820590C1

SHEET

pan seal, 540, 550, 555 and 560

1шт.

6

820587C1

CHANNEL

seal retaining, 530

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 crg

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

6

820588C1

CHANNEL

seal retaining, 540, 550, 555 & 560

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

7шт.

120377

NUT,3/8" - 16, Gr 5

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

7шт.

7

820577C1

BAR

pan hinge clamp

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

609836R1

WASHER

1.031 x 1.75 x .054

4шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

8

820573C1

SUPPORT

pan hinge LH

1шт.

9

820574C1

SUPPORT

pan hinge RH

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

820580C1

LATCH

slurry pan

1шт.

11

612232R1

SPACER

latch pivot

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

619856R1

WASHER

.406 x 1.00 x .056

1шт.

12

820578C1

BAR

latch support

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

4A

SPRING

latch return

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

14

820652C1

PULLEY

control rope guide

1шт.

15

561277R1

SPACER,5/8" Tube x 1/2"

BUSHING, pulley

1шт.

16

820651C1

ANGLE

rope guide

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Выбрано товаров: 44
