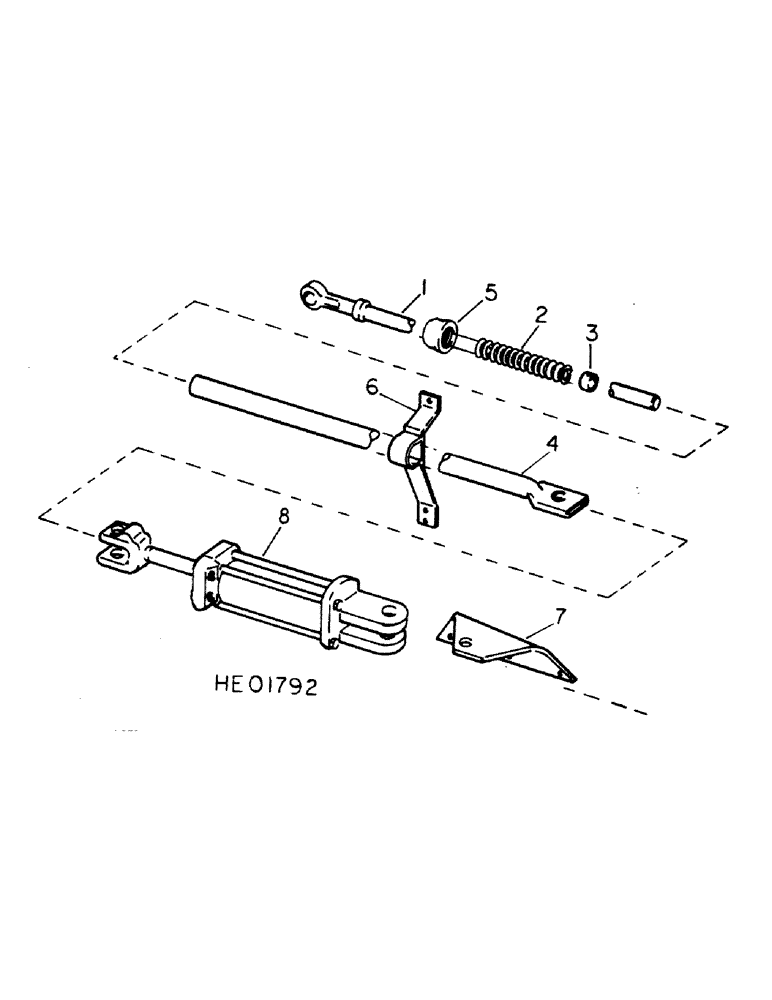

Запчасти Case IH 555 (A-68) - HYDRAULIC ENDGATE CONTROLS, 530, 540, 550 AND 555 MODELS, BUILT 1972 TO 1977

1

820659C1

BOLT,Eye, 3/16"

ASSY, endgate control eye

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

609836R1

WASHER

1.031 x 1.750 x .054

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

602416R1

SPRING

endgate control bolt

1шт.

3

820662C1

BUSHING

control spring stop

1шт.

19689R1

PIN,1/4" x 1 1/4", Coiled

1шт.

4

820657C1

PIPE

control cylinder piston rod extension outer, 530 & 540

1шт.

4

820658C1

PIPE

control cylinder piston rod extension outer, 550 & 555

1шт.

5

820663C1

CAP

pipe

1шт.

6

820628C1

SUPPORT

ASSY, extension pipe

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

820626C1

ANCHOR

endgate control cylinder

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

2шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1 hex-hd

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8-16 hex flanged lock

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

8

CYLINDER ASSY, 3-1/2 x 8 DA, for service parts refer to recommended hydraulics

1шт.
