Запчасти Case IH 555 (A-67) - HYDRAULIC ENDGATE ATTACHMENT, 530, 540, 550 AND 555 MODELS, BUILT 1972 TO 1977

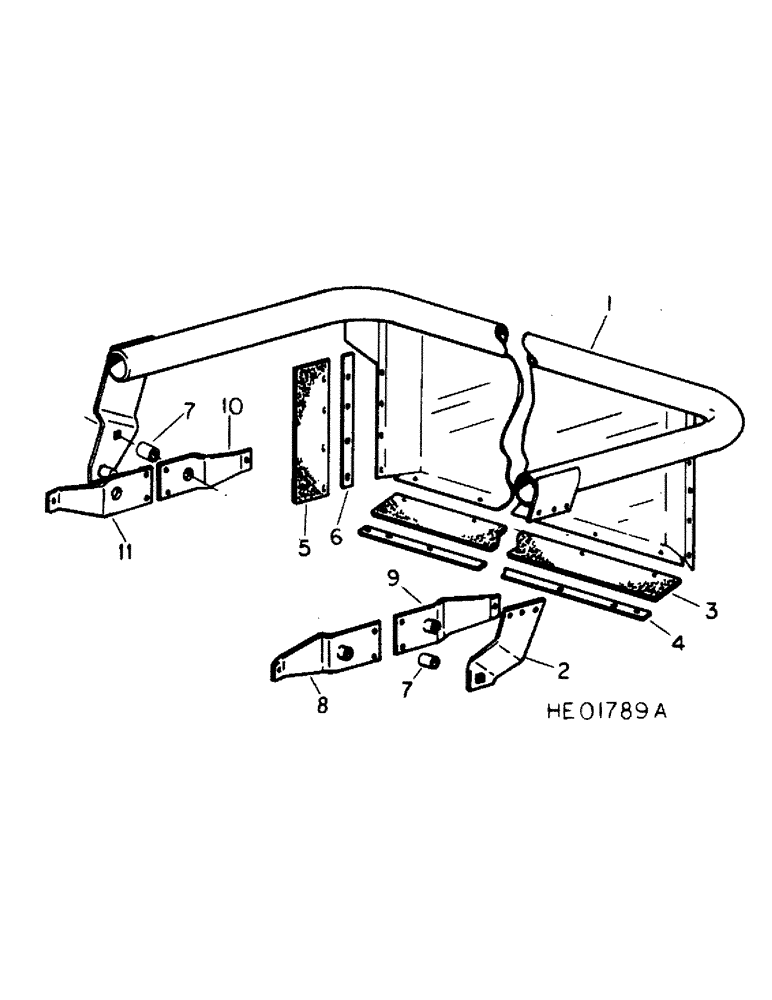

Схема запчастей Case IH 555 - (A-67) - HYDRAULIC ENDGATE ATTACHMENT, 530, 540, 550 AND 555 MODELS, BUILT 1972 TO 1977

Артикул

Название

Примечание

Количество

1

820600C3

GUIDE

GATE ASSY, end, 530

1шт.

1

820601C3

GUIDE

GATE ASSY, end, 540, 550 & 555

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x a hex-hd

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

820611C1

PIVOT

endgate LH

1шт.

3

820619C1

SEALING STRIP

endgate bottom seal, 530

1шт.

3

820621C1

SEALING STRIP

endgate bottom seal, 5540, 550 & 555

1шт.

4

820620C1

BAR

seal strip retaining, 530

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

5шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

5шт.

4

820622C1

BAR

seal strip retaining, 540, 550 & 555

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16-18 x 3/4 crg

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 crg

6шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

5

820618C1

SEALING STRIP

endgate side seal

2шт.

6

820617C1

BAR

side seal retaining

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

8шт.

608667R1

PLATE

BOLT, 5/8-11 x 3 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

8шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8-11 hex

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

21782R1

WASHER

.656 x 1.500 x .054

4шт.

7

820645C1

BUSHING

endgate pivot

2шт.

8

820612C2

SUPPORT

ASSY, endgate pivot LH, 530 & 540 models

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

614452R1

WASHER

.406 x 1.250 x .105

1шт.

9

820613C2

SUPPORT

ASSY, endgate pivot LH, 550 & 555 models

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

614452R1

WASHER

.406 x 1.250 x .105

1шт.

10

820612C2

SUPPORT

ASSY, endgate pivot RH, 550 & 555

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

614452R1

WASHER

.406 x 1.250 x .105

1шт.

11

820613C2

SUPPORT

ASSY, endgate pivot RH, 530 & 540 models

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

614452R1

WASHER

.406 x 1.250 x .105

1шт.

Выбрано товаров: 63
