Запчасти Case IH 555 (A-65) - UPPER BEATER ATTS, DRIVE

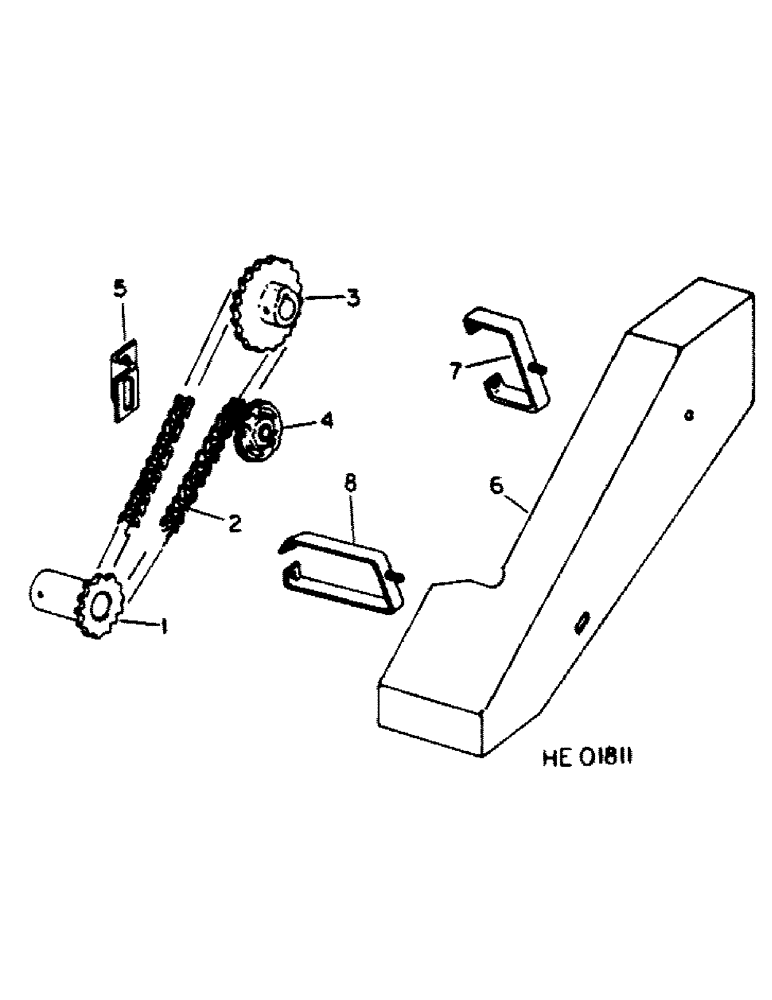

Схема запчастей Case IH 555 - (A-65) - UPPER BEATER ATTS, DRIVE

Артикул

Название

Примечание

Количество

1

820450C1

SPROCKET ASSY.

SPROCKET, upper beater drive, 9T

1шт.

117991

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

1шт.

22337R1

PIN,1/4" x 2 1/2", Coiled

1шт.

2

CHAIN ASSY, upper beater drive, 530, use 51 links of 1-1/4 inch extended pitch roller chain from a 10 foot roll of 569089R91, plus one connecting link of 456980R91

1шт.

2

CHAIN ASSY, upper beater drive, 540, 550 & 555, for service on machines built prior to May 1976 season, use 51 links of 1-1/4 inch extended pitch roller chain from a 10 foot roll of 569089R91 plus one connecting link of 456980R91

1шт.

CHAIN ASSY, upper beater drive, 540, 550 & 555, for service on machines built May 1976 season and since, 560, built 1980 and since, use 47 links of 1-1/4 inch extended pitch roller chain from a 10 foot roll of 569089R91 plus one connecting link of 456980R91 and one offset link of 456929R91

1шт.

456980R91

CHAIN LINK

CONNECTING LINK

1шт.

456929R91

CHAIN LINK

OFFSET LINK

1шт.

569089R91

CHAIN (AG),10' L, 1.0" Pitch

CHAIN, 1-1/4 inch ext pitch roller

1шт.

3

820439C1

SPROCKET ASSY.

SPROCKET, 15T upper beater driven, 530

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

3

820439C1

SPROCKET ASSY.

SPROCKET, 15T upper beater driven, 540, 550 & 555, for service on machines built 1972 to May 1976 season

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

3

612915R2

SPROCKET ASSY.

SPROCKET, 9T upper beater driven, 540, 550 & 555, for service on machines built May 1976 season and since, 560, built 1980 and since

1шт.

88907

WOODRUFF KEY,#B, 5/16" x 1", HT

5/16 x 1 Woodruff

1шт.

19479R1

PIN,1/4" x 2", Coiled

1шт.

4

564989R91

DRIVE SPROCKET

SPROCKET, drive chain tightener, 9T

1шт.

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2-13 x 2 hex hd

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

607895R1

WASHER

.531 x 1.00 x .105

3шт.

5

820451C1

BRACKET

tightener sprocket, 530

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

820451C1

BRACKET

tightener sprocket, 540, 550 & 555, for service on machines built prior to May 1976 season

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

5

820499C1

BRACKET

tightener sprocket, 540, 550 & 555, for service on machines built May 1976 season and since, 560, built 1980 and since

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

820539C3

SHIELD

ASSY, upper beater drive

1шт.

126032

WING NUT,3/8"-16

NUT, 3/8-16 wing

2шт.

619856R1

WASHER

.406 x 1.00 x .056

2шт.

7

820535C1

SUPPORT

ASSY, shield upper

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

8

820541C1

SUPPORT

ASSY, shield lower

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8-16 x 1 carriage

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 48
