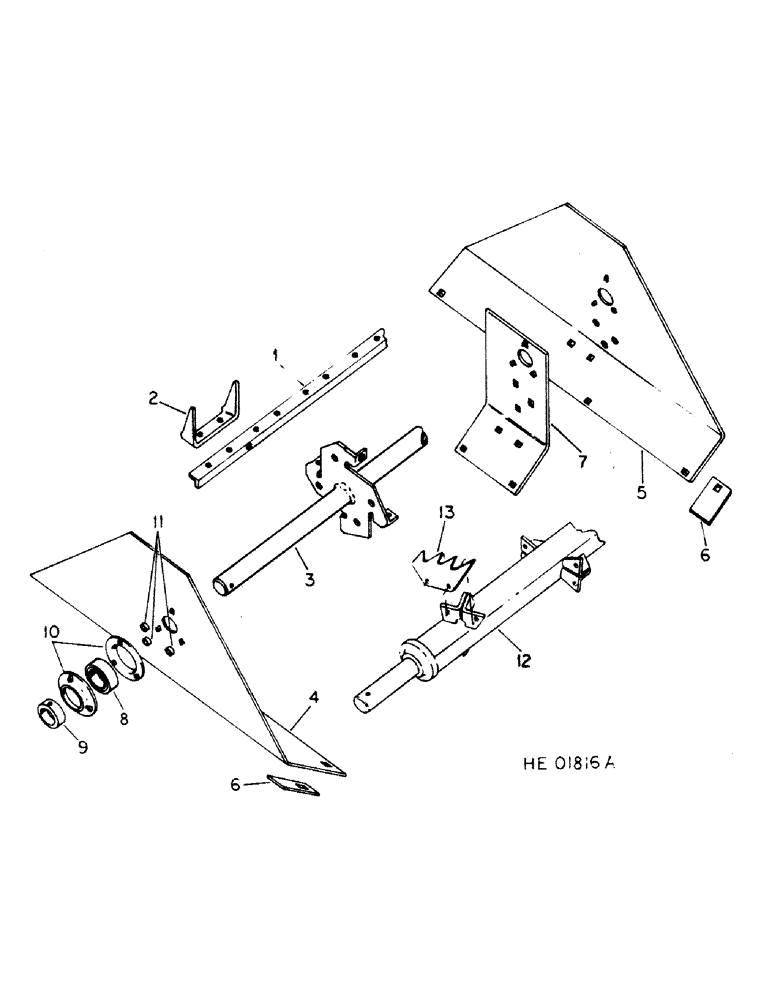

Запчасти Case IH 555 (A-63) - UPPER BEATER ATTACHS, BEATER ANGLES

1

820531C91

ANGLE

ASSY, beater #1, 530, includes 7-593073R1 tooth and 14-106916 rivet

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

820446C91

ANGLE

ASSY, beater #1, 540, 550 & 555, includes 8-593073R1 tooth and 16-106916 rivet, for service on machines built 1972 to May 1976 season

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

820532C91

ANGLE

ASSY, beater #2, 530, includes 7-593073R1 tooth and 14-106916 rivet

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

820447C91

ANGLE

ASSY, beater #2, 540, 550 & 555, includes 8-593073R1 tooth and 16-106916 rivet, for service on machines built 1972 to May 1976 season

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

820533C91

ANGLE

ASSY, beater #3, 530, includes 7-593073R1 tooth and 14-106916 rivet

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

820448C91

ANGLE

ASSY, beater #3, 540, 550 & 555, includes 8-593073R1 tooth and 16-106916 rivet, for service on machines built 1972 to May 1976 season

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

820534C91

ANGLE

ASSY, beater #4, 530, includes 7-593073R1 tooth and 14-106916 rivet

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

1

820449C91

ANGLE

ASSY, beater #4, 540, 550 & 555, includes 8-593073R1 tooth and 16-106916 rivet, for service on machines built 1972 to May 1976 season

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8-16 x 7/8 hex-hd

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

593073R1

TOOTH

beater double, 530

28шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss hd

56шт.

2

593073R1

TOOTH

beater double, 540, 550 & 555, for service on machines built 1972 to May 1976 season

32шт.

106916

RIVET,Tr Hd, 5/16" x 1"

5/16 x 1 truss hd

64шт.

3

820543C1

SHAFT

ASSY, upper beater, 530

1шт.

608700R1

WASHER

1.281 x 2.00 x .105

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

3

820440C1

SHAFT ASSY, upper beater, 540, 550 & 555, for service on machines built 1972 to May 1976 season

1шт.

608700

WASHER, 1.281 x 2.00 x .105

1шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

4

820453C1

SUPPORT

upper beater LH

1шт.

5

820454C1

SUPPORT

upper beater RH

1шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8-16 x 3/4 carriage

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

6

820635C1

BAR

support rear spacer

2шт.

7

820452C1

PLATE

RH support reinforcement

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

upper beater shaft

2шт.

9

557995R11

COLLAR

ASSY, bearing locking, includes 1-115321 screw

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

SCREW, 5/16-18 x 5/16 hdls-cup-pt

2шт.

10

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

RETAINER, bearings

4шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8-16 x 1-1/4 carriage

3шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8-16 x 1-1/2 carriage

3шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

11

622535R1

SPACER,1/2" X-Strng Pipe x 7/16"

bearing mtg 1/2" X-Strng Pipe x 7/16"

6шт.

12

821076C2

BEATER

ASSY, upper, 540, 550 & 555 models, for service on machines built May 1976 season and since, 560, model built 1980 and since

1шт.

608700R1

WASHER

1.281 x 2.000 x .054

8шт.

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

13

821081C1

PLATE

upper beater, 540, 550 & 555 models, for service on machines built May 1976 season and since, 560 model built 1980 and since

1шт.

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

32шт.

25522R1

NUT,3/8"-16, G8

3/8-16 hex type 8

32шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

32шт.
