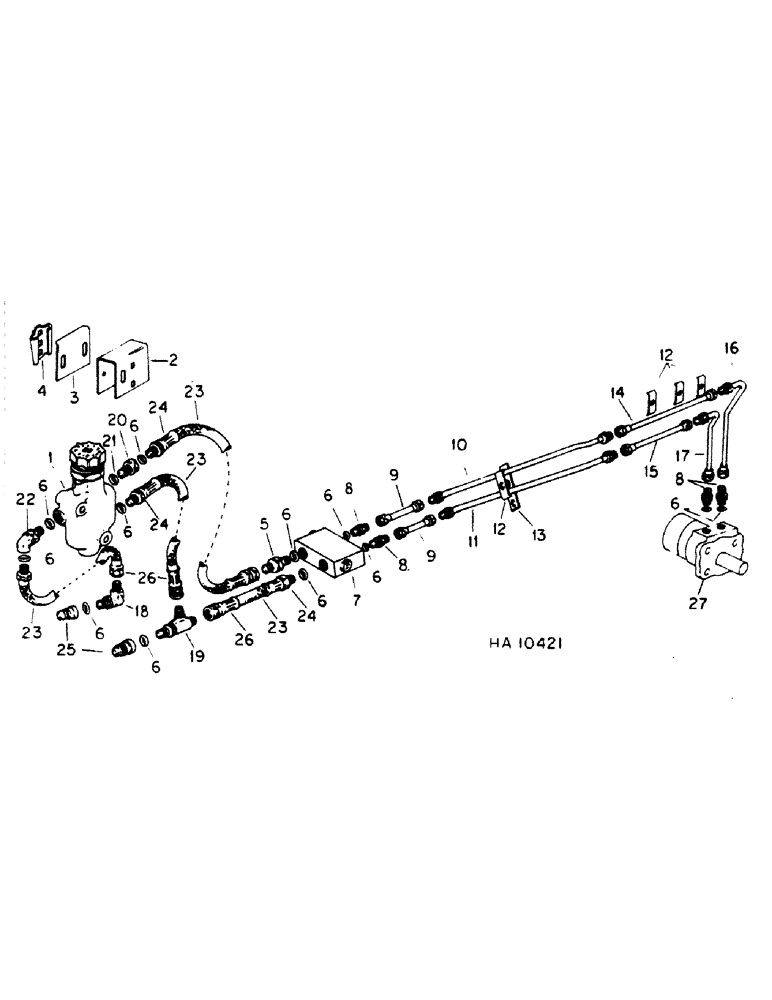

Запчасти Case IH 555 (A-61) - HYDRAULIC VALVE AND LINES

1

821015C91

VALVE

ASSY, flow divider control, for component parts of this assy refer to this section of the parts catalogue

1шт.

180046

SPRING

1/4-20 x 2-1/4 hex hd

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

20600R1

WASHER

.281 x .750 x .105

2шт.

2

820393C1

CHANNEL

valve mounting

1шт.

3

820593C1

BRACKET

valve mounting

1шт.

598801R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT, 5/16-18 x 3/4 carriage

2шт.

1203776

NUT, 5/16-18 hex

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

5

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 hyd 37 deg flared tube short swivel C-Z

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

3/4 x 15/16 x 3/32

11шт.

7

821064C91

VALVE

ASSY, cushion, for component parts of this assy refer to hydraulic cushion valve in this section of the catalogue

1шт.

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

5/16-18 x 2-1/2 hex hd

2шт.

120376

NUT,5/16"-18, G5

2шт.

619855R1

WASHER

.344 x .750 x .054

2шт.

8

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 3/4-16 to 7/8-14 hyd 37 deg flared tube reducing

4шт.

9

820522C1

TUBE,1" OD, 23.7" Length

hyd drive pressure and return, front

2шт.

10

820529C1

TUBE

hyd drive pressure diagonal

1шт.

11

820530C1

TUBE, hyd drive return diagonal

1шт.

12

614323R2

CLAMP

dual tube

4шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16-18 x 1-1/4 crg

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

820493C1

BAR, clamp support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

820523C1

TUBE, hyd drive pressure side 1" OD, 127" Length

1шт.

15

820523C1

TUBE, hyd drive return side 1" OD, 127" Length

1шт.

16

820528C1

TUBE

hyd drive pressure rear

1шт.

17

820527C1

TUBE, hyd drive return rear

1шт.

18

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd 37 deg flared tube adj str thrd 90 deg w/nut & back up washer C-Z

1шт.

19

9411132

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

7/8-14 hyd 37 deg flared tube adj str thrd 90 deg w/nut & back up washer C-Z

1шт.

20

372852R1

ADAPTER

UNION, 7/8-14 to 3/4-16 str thrd reducer

1шт.

21

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

41/64 x 13/16 x 3/32

1шт.

22

371357R91

ELBOW

7/8-14 str thrd adj

1шт.

23

407117R1

HOSE

1/2 ID one wire braid

4шт.

23

407120R1

HOSE

1/2 ID two wire braid, make hoses from bulk stock, select length to suit installation, use two each of crimp couplings shown below for each hose

4шт.

24

997994R1

ADAPTER

COUPLING, Kwikrimp 7/8-14 str thread 0-ring fixed

4шт.

25

395149R1

QUICK MALE COUPLING

COUPLER, hose male

2шт.

25

544787R91

COUPLING, BREAK AWAY

COUPLER, hose male, for 66 series tractors

2шт.

26

997928R1

FITTING,7/8" x 14 Female JIC, 1/2" Hose ID

COUPLING, Kwikrimp 7/8-14 female 37 deg flared tube swivel

1шт.

27

1414117R91

MOTOR

ASSY, hyd apron drive, for component parts of this assy refer to hydraulic apron drive motor in this section of the parts catalogue

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.
