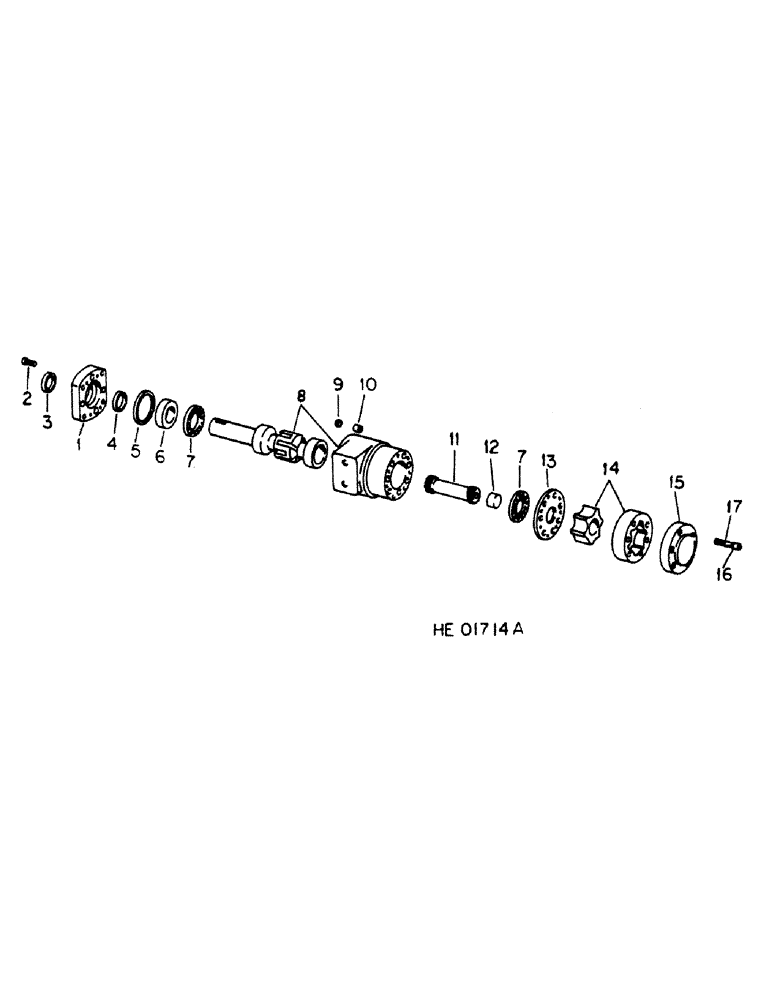

Запчасти Case IH 555 (A-60) - HYDRAULIC APRON DRIVE MOTOR, 555 MODEL

1414117R91

MOTOR

ASSY, hydraulic apron drive

1шт.

1

1413802R1

PLATE, mounting

1шт.

2

1413632R1

12 PT SCREW,Flg, 5/16" - 24 x 7/8", Gr 8

SCREW, 5/16-24 x 7/8 dr cap

4шт.

17132R1

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

4шт.

138538

LOCK WASHER

WASHER, 5/16 int lock

4шт.

3

697494R91

OIL SEAL

SEAL, oil

1шт.

4

1413633R1

WASHER

teflon back up

1шт.

5

SEAL, quad, order kit 1413801R91

1шт.

382781R1

O-RING,1.737" ID x 0.103" Width

1.750 x 2.125 x .188

1шт.

6

653946R1

SPACER

BEARING

1шт.

7

653947R91

BEARING, thrust

2шт.

8

1414119R91

SET

housing and spool

1шт.

124553

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

9

355967R1

O-RING,0.364" ID x 0.003" Width

.375 x .500 x .063

2шт.

10

653948R1

PLUG

housing

1шт.

11

653944R1

DRIVE

1шт.

12

1414121R1

SPACER

1шт.

13

653943R1

LARGE PLATE

PLATE, spacer

1шт.

14

1414128R91

SET

ROTOR SET

1шт.

15

653949R1

CAP, end

1шт.

16

1413640R1

WASHER

seal

7шт.

17

1413132R1

SCREW, 5/16-24 12 pt drive

7шт.

1413801R91

SEAL KIT

seal, composed of (1) seal (NSS), (1) washer 1413633R1, (1) seal 697494R91, (2) o-ring 355967R1, (1) o-ring 382781R1, (7) washer 1413640R1

1шт.
