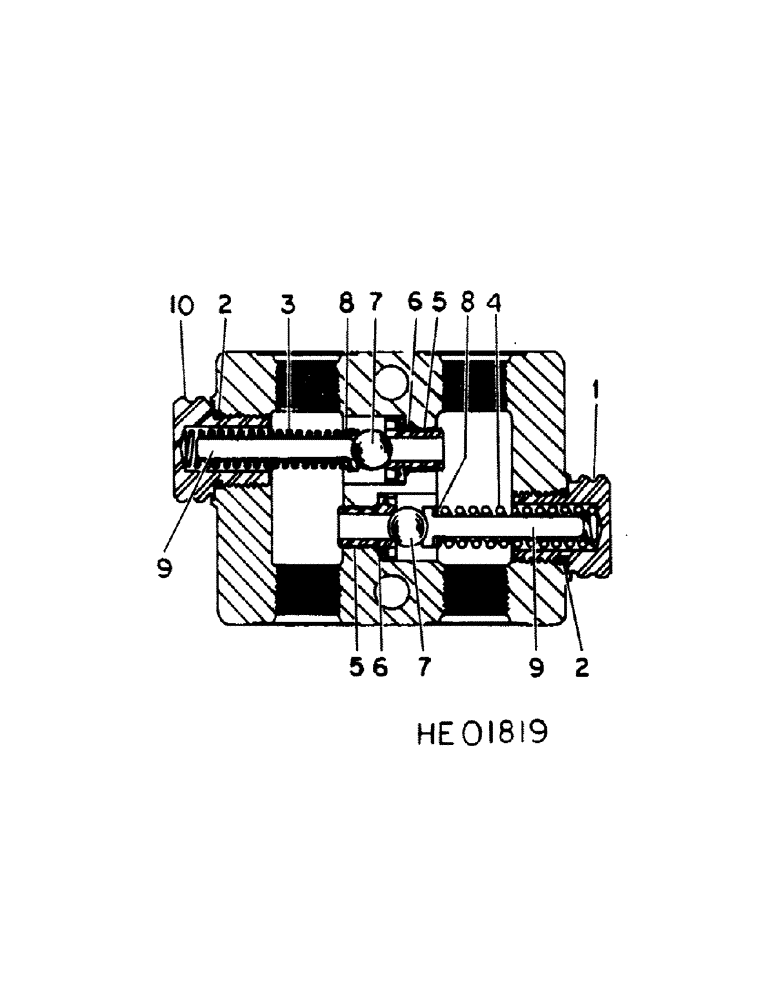

Запчасти Case IH 555 (A-59) - HYDRAULIC CUSHION VALVE, 555 MODEL

821064C91

VALVE

ASSY, cushion

1шт.

1

820692C1

CAP

5 PSI spring

1шт.

2

350667R1

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

cap

2шт.

3

820616C1

SPRING

check

1шт.

4

820625C1

SPRING, dlv

1шт.

5

820636C1

SEAT

ball

2шт.

7

17014R1

BALL

7/16 steel

2шт.

8

850110C1

SHIM

spacer

1шт.

8

850111C1

SHIM

spacer

1шт.

8

850112C1

SHIM

spacer

1шт.

9

820627C1

GUIDE

ball and spring

2шт.

10

820595C1

CAP

spring

1шт.

820640C1

TOOL

SERVICE TOOL, seat replacement

1шт.

6

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Seat

2шт.
