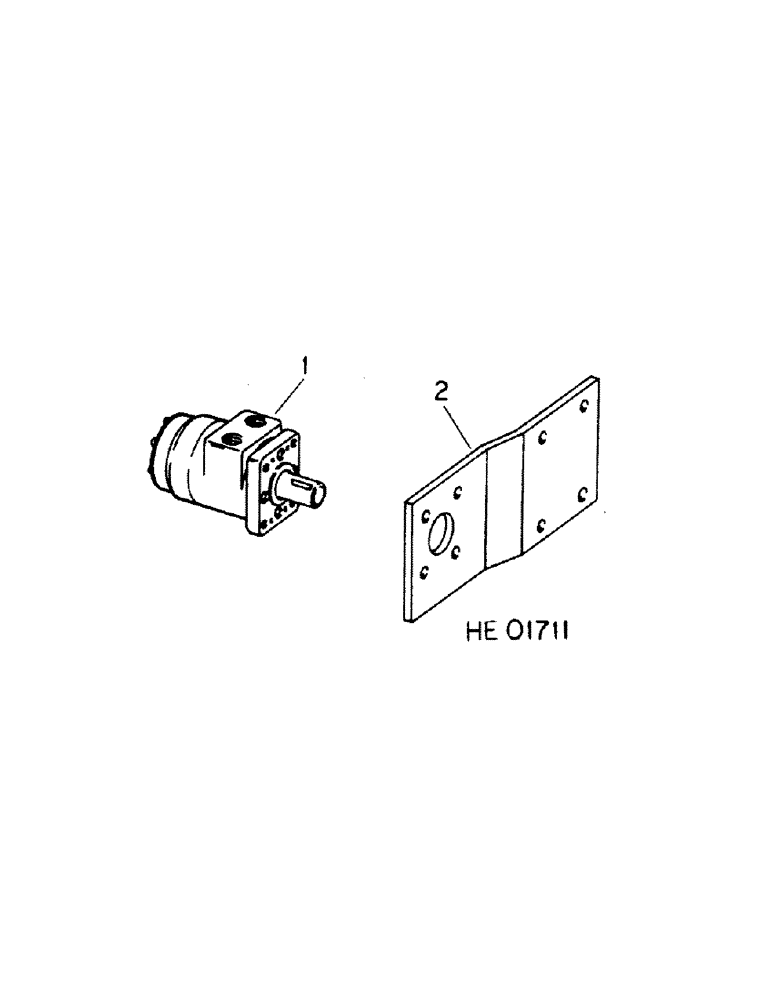

Запчасти Case IH 555 (A-59[A]) - HYDRAULIC DRIVE MOTOR SUPPORT 555 MODEL

1

1414117R91

MOTOR

ASSY, hyd apron drive, for component parts of this assy refer to hydraulic apron drive motor in this section of the parts catalogue

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8-16 x 3/4 hex hd

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

820256C1

SUPPORT

drive motor

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 hex hd

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.
